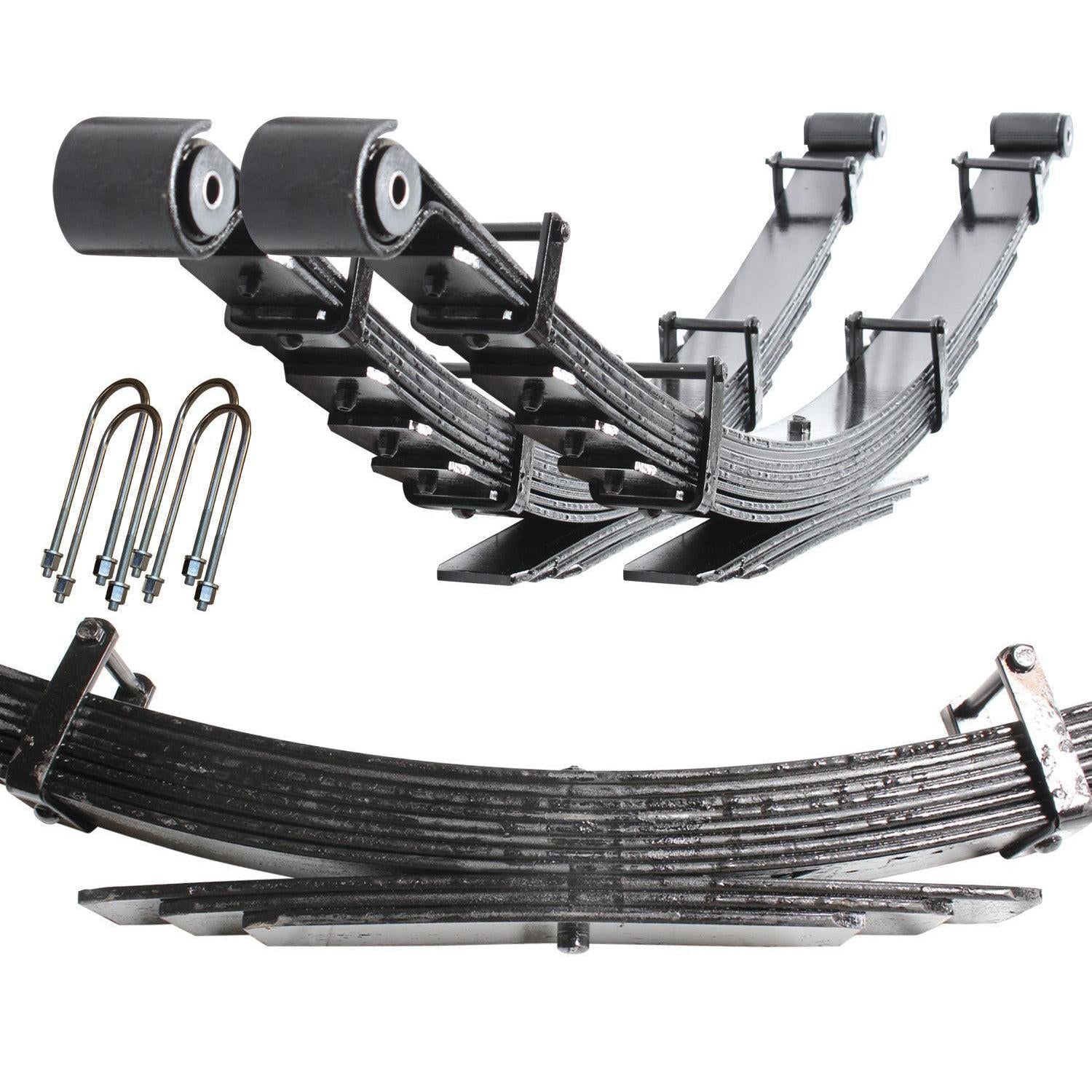

2003-2009 Cummins Rear Progressive Leaf Spring Kit w/ 2" Lift (CS-DFSP-03-D)

Fits

Note: Designed for those with 1,500 lbs. In bed at all times

These Carli full progressive rate leaf springs are a complete bolt-on replacement for your OEM springs. However, these particular springs are designed for trucks with constant loads around 1,500 LBS in the bed.

Part Number: CS-DFSP-03-D

• 2003-07 Rams MUST convert to factory “T-Style” steering

• 2" rear lift maintains a slight rear-height stance with Carli 3" Systems
• Softens the initial spring rate at ride height
• Minimizes axle wrap/wheel hop
• Reduces payload to "light" 3/4-ton capacity
• Capable of 15" of suspension travel with factory shackle
• Designed for those with 1,500 lbs. In bed at all times

• Requires removal of the electronic sway bar on Power Wagons
• Requires the Torsion Sway Bar (CS-DTSB3-03) and Full Progressive Leaf Springs (CS-DFSP-03-D) to properly function
• Requires removal of the factory control arm mounts in favor of Carli Drop Brackets
