2003-2009 Cummins Pintop 6” Lift Kit (CS-DPT25-6-03-D)

Fits

Note: Review 'Additional Info' for required and optional components

One of the best off-road suspension systems Carli offers, this massive Pintop 6" leveling kit provides you with an all-around terrific ride over any terrain. No compromises were made with the development of this kit. Featuring Carli-specific, blueprinted, King 2.5” shocks that provide 55% more piston surface area and are the pinnacle of performance and capability. These pintop 2.5 remote reservoir shocks provide more fluid volume and piston movement, which results in improved heat dissipation, consistent damping, and a smoother, more comfortable ride. Fully rebuildable, serviceable, and tuneable for whatever your preference is.

Part Number: CS-DPT25-6-03-D

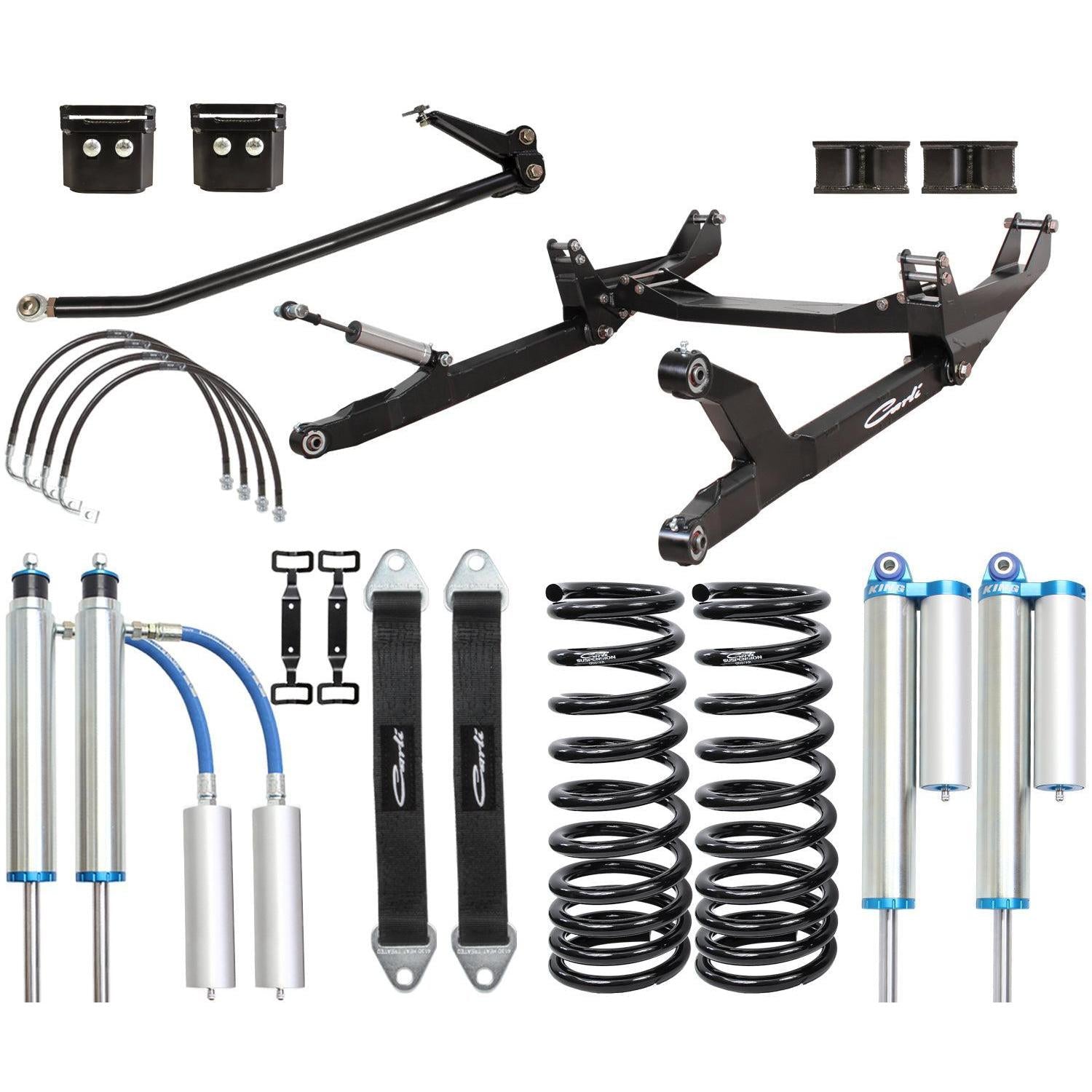

• Multi-rate front springs, front and rear shock package, fabricated radius arm system, fabricated shock towers, brake lines, adjustable track bar, front and rear bump drops, and track bar drop bracket
• Allows for 12" of front suspension travel and 13" rear
• Allows for the fitment of 37" tires


• Optional Parts to support this system:
  • Sway Bar Options: CS-DTSB6-03 or CS-DEL6-12 or CS-DEL6-10,
  • Pittman Arm: FTS-93012,
  • Leaf Spring Options: CS-DFSP-6-10-D
  • Rear Shock Mount - Driver: CS-DRSMD
  • Rear Shock Mount - Passenger: CS-DRSMP
  • Long Travel Bags: CS-DLTB-03-4.0 or CS-DLTB-12-D
  • Airbag Spacer: CS-AIRBAGSPCR
  • Hydro Bump Kit - Front: CS-DHYDRO-F-6
  • Steering Stabilizer: CS-DSSOSK-T or CS-DHMSS-03-T or CS-DLMSS-T
  • Carrier Bearing Drop: CS-CARRIERDROP-D
  • Axle Truss: CS-AAMTRUSS
