2003-2009 Cummins Performance Long Arm 3” Lift Kit (CS-DPER25-03-D)

Fits

Note: Review 'Additional Info' for required and optional components

Looking for unrivaled off-road performance without compromising on-road ride quality? Let us introduce the Carli-Spec Long Arm Lift Kit with Custom Tuned King 2.5 Remote Reservoir Shocks. Loaded with features to maximize capability over any terrain, perfectly balanced, the front and rear bottoms with the same intensity, and the chassis remains controlled and level following the bottoming event, never throwing the vehicle out of control.

Part Number: CS-DPER25-03-D

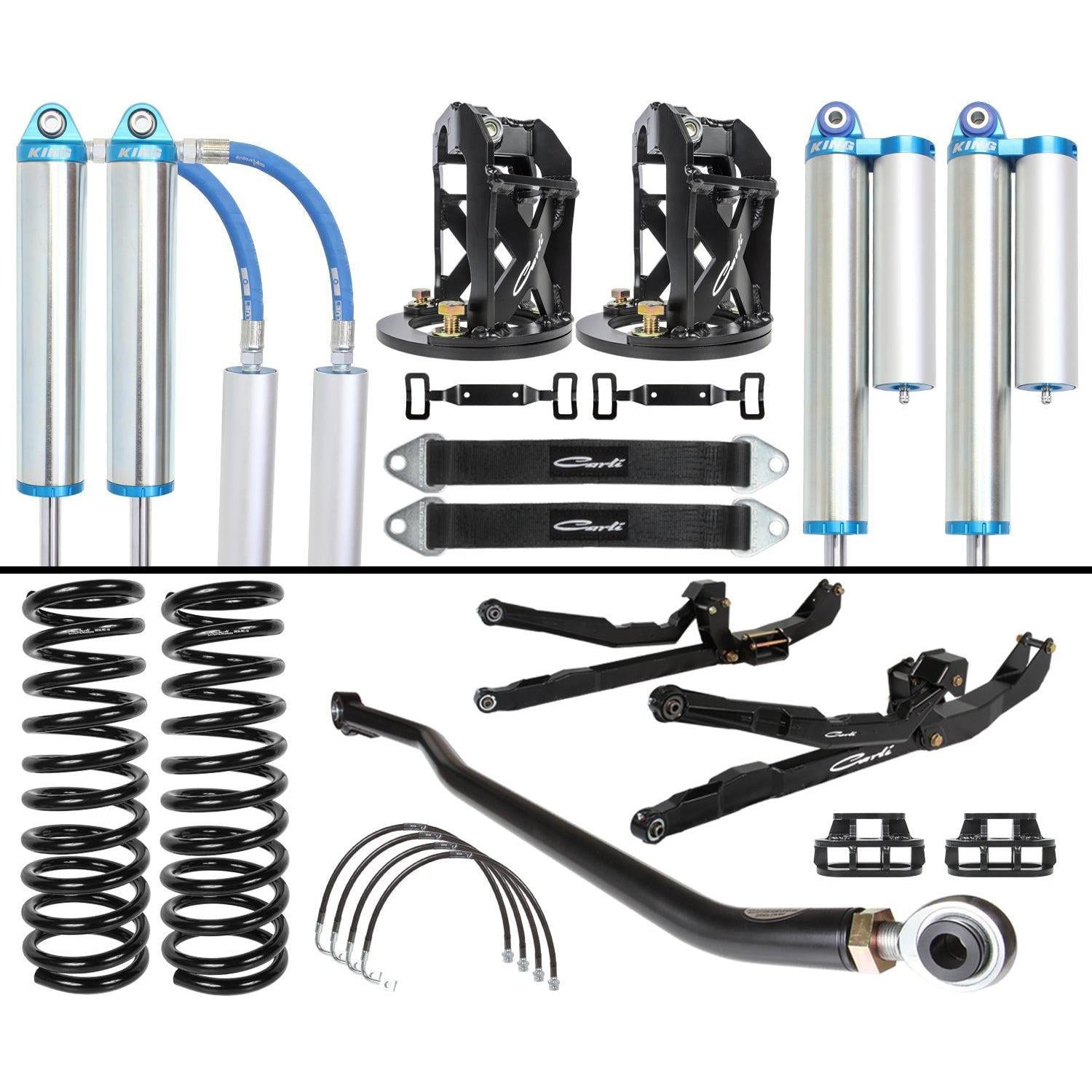

• Front and rear shock package, long arm system, front bump drops, braided brake lines, multi-rate coil springs, fabricated shock towers, and adjustable track bar.
• The fabricated long arm system is capable of 14" of travel and is 50% longer than factory control arms
• Fully serviceable joints, resulting in zero-bind articulation
• The truck will sit 2.5-3" higher (year/cab configuration dependent), and wheel travel will be increased by a whopping 70%
• Fits up to 37" tires with ease for a more aggressive appearance and better off-road performance


• Optional Parts to support this system:
  • Sway Bar Options: CS-DTSB6-03 or CS-DEL6-12 or CS-DEL6-10,
  • Pittman Arm: FTS-93012,
  • Leaf Spring Options: CS-DFSP-6-10-D
  • Rear Shock Mount - Driver: CS-DRSMD
  • Rear Shock Mount - Passenger: CS-DRSMP
  • Long Travel Bags: CS-DLTB-03-4.0 or CS-DLTB-12-D
  • Airbag Spacer: CS-AIRBAGSPCR
  • Hydro Bump Kit - Front: CS-DHYDRO-F-6
  • Steering Stabilizer: CS-DSSOSK-T or CS-DHMSS-03-T or CS-DLMSS-T
  • Carrier Bearing Drop: CS-CARRIERDROP-D
  • Axle Truss: CS-AAMTRUSS

• This system requires a Torsion Sway Bar and Full Progressive Leaf Springs to properly function. (Stock leaf springs are NOT recommended)
• 2003-07 Rams MUST convert to factory “T-Style” steering.
