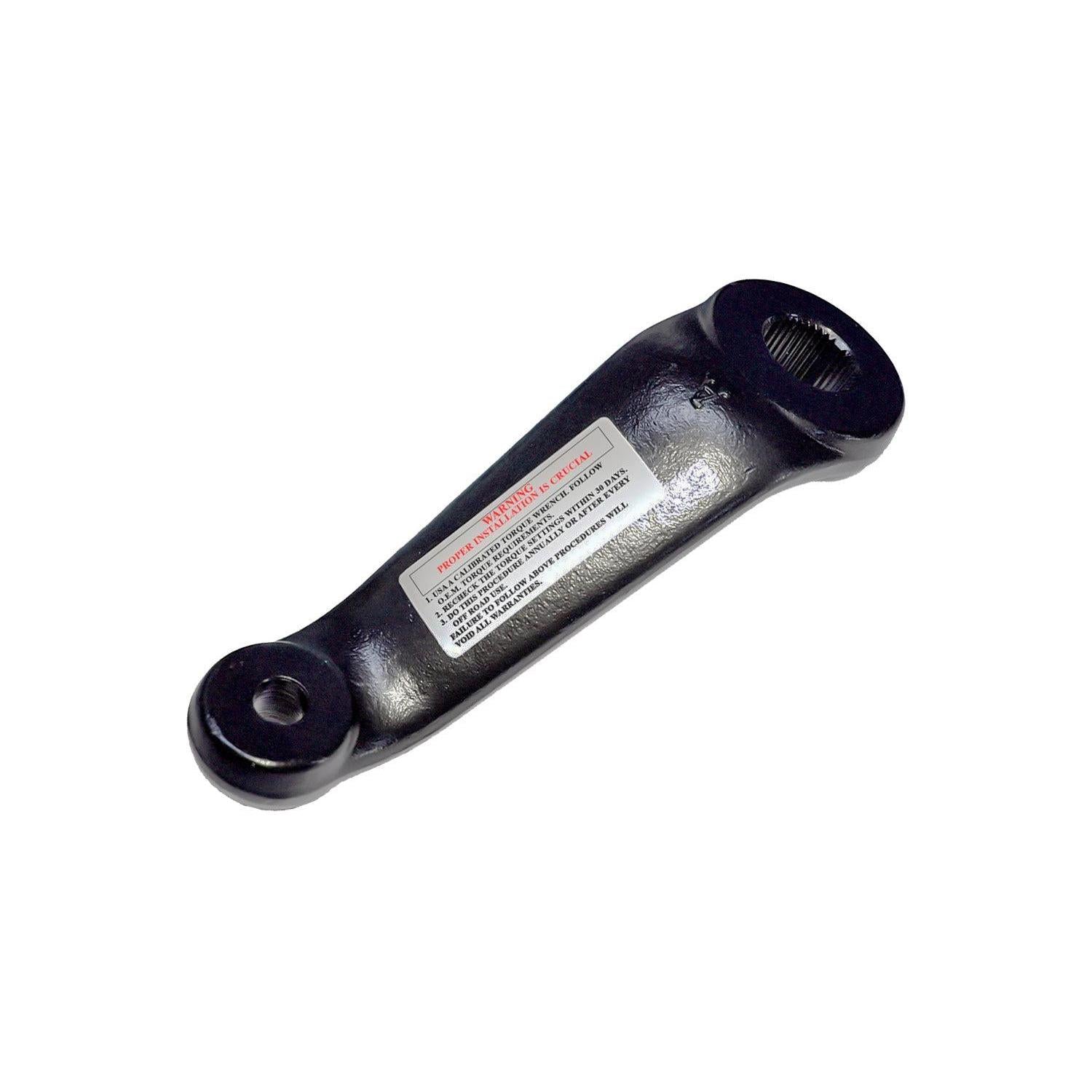

2003-2008 Cummins Drop Pitman Arm w/ 6" Lift (CS-DPITMAN-03)

It may not look inherently important, but Drop Pitman Arms aid in correcting any changes in your steering geometry caused by lifting your truck. These arms lower the tie rod connection point, restoring the correct angle and ensuring precise steering.

• Forged pitman arm corrects steering geometry on the Rams with a 6" lift
• Ensures proper steering functionality
• Lowers the tie rod connection point, restoring the correct angle and ensuring smooth steering.

• Will work on 03-08 Ram 2500/3500 with upgraded 6-bolt Mopar steering box

We sampled every available pitman arm on the market as our quantities of 6″ suspension systems sold wouldn’t justify our own pitman arm project. In our findings, the best readily-available pitman arm to correct steering geometry (to match Carli’s Track Bar Drop Bracket) was the Forged Fabtech Motorsports unit.

A drop pitman arm corrects steering geometry to match the dropped suspension geometry; in our case, via the Carli Track Bar and Track Bar Drop Bracket. This combination minimizes bump-steer while ensuring the drag link adjustment collar thread engagement and tie-rod end effective range of motion are within spec at the lifted height.

We carry both options:

CS-DPITMAN-03: This unit fits ONLY 2003-2008 with smaller sector shaft.
CS-DPITMAN-09: This unit fits 2009-2012 with larger sector shaft as well as the 2003-08 with the upgraded 6-bolt Mopar Box.
