2003-2007 Powerstroke TowMaster 5R110 Transmission & Converter Package (4WD) (1064464SM)
Purchase to earn 7079 Dirty Dollars Learn More
Core Deposit
After you have made your purchase, please follow the steps listed below to receive your refundable Core charge. This process must be completed within 60 days of receiving your product(s). Failure to send us the core(s) within the 60 day timeframe will result in you only receiving a partial refund amount of the core deposit.
1) Reply to this email or give us a quick call (778-754-7090) and let us know that you will be shipping us a Core, please include your Original Invoice/Order Number so we can link up your file.
2) On the outside of the ORIGINAL box, please write "Core Return" and your Original Invoice Number/Order Number.
3) Ship your core with tracking to:
Unit 6 - 1060 Stevens Road, West Kelowna BC Canada V1Z1A3
4) Once we receive the Core here at the shop, it will be inspected to ensure that it is rebuildable. After the inspection is passed, your core charge will then be refunded (giving you more money for truck parts!).
Note:
- If you have purchased a BD Diesel product, please follow their core-return program which can be found here.
- If you have purchased a Fleece Performance product that has a core charge, please follow the Fleece Performance Core Return instructions found here.
- If you have purchased a Randys Transmission product, we must receive the core no later than 30 Days after the product delivery date.
- Failure to follow these steps may result in a delay/denial of your core refund.
- Failure to send us the core(s) within the 60-day timeframe will result in you only receiving a partial refund amount of the core deposit.
- 0-60 Days: Full Deposit if the core passes the inspection.
- 61-120 Days: 25% of your eligible core refund amount will be deducted.
- 121+ Days: 50% of your eligible core refund amount will be deducted.
Let us know if you have any questions or concerns. We can be reached at 778-754-7090 or feel free to email sales@dirtydieselcustoms.com.
Learn more.
Description
Description
Fits
Year | Make | Model | Engine |
2003-2007 | Ford |
F-Series 2WD/4WD Flange Drivetrain | 6.0L Powerstroke |

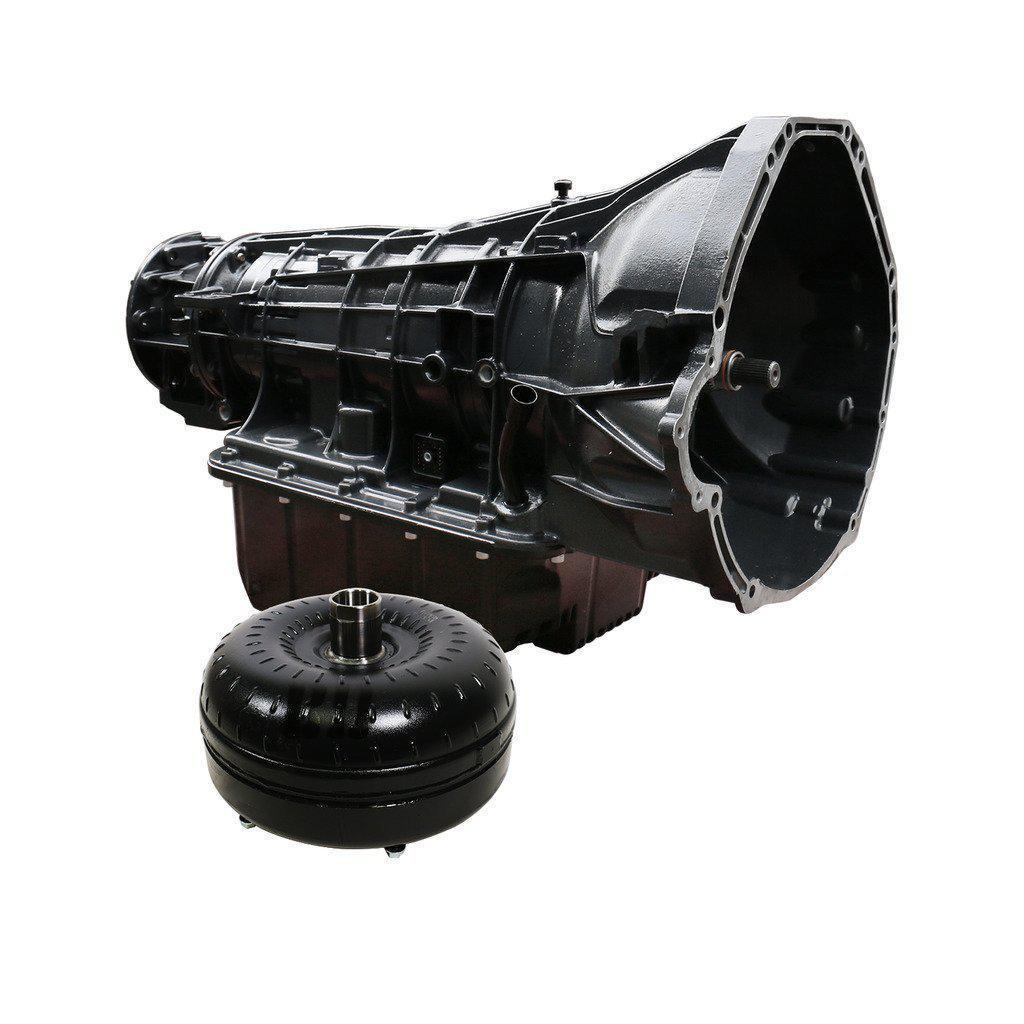

Whether it be crossing the finish line at the track or at the end of a long haul towing journey, the BD Diesel 1064464SM Transmission and Torque Converter Package will get you to your final destination. Each and every transmission and torque converter package has been dyno tested together to achieve ultimate performance and reliability. All transmissions from BD also include their very own Heavy-Duty Transmission pan which adds extra fluid capacity, helping to keep your transmission temperature run cooler.
Part Number: 1064464SM
Features
Features
Transmission:
- Increase the durability of your drivetrain
- BD aluminum HD deep-pan increases oil capacity by 6qt
- Upgraded sump filter
- Replace plastic pressure plugs in the valve body with aluminum
- Heavy-duty snap ring and blow-off valve to prevent runaway pressure damaging case
- Reworked front pump
- Clutch Count: COAST CLUTCH 3
- Clutch Count: FORWARD 4
- Clutch Count: LOW REVERSE 6
- Clutch Count: INTERMEDIATE 5 (67% increase over OEM)
- Clutch Count: DIRECT 6 (20% increase over OEM)
- Clutch Count: OVERDRIVE 5 (67% increase over OEM)
- Each transmission is dyno-tested
Torque Converter:
- Enhanced Stall - Street/Towing applications
- Torque multiplying cast aluminum stators
- Lower rpm response than the stock converter
- More efficient operation
- Less heat and better fuel economy
- Stamp-forged steel front cover
- Furnace-brazed fins
- Up to triple the amount of lock-up clutch material
Installation
Installation
- 7 Hours
- Install Click Here
Warranty
Warranty
Parts Only - No Race or Sled Pull abuse covered.
- 36-Months
- 150,000 Miles
-
Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.
Questions and Answers
Questions and Answers
Previously asked questions
We've compiled a list of questions and answers below.
Don't see your question? Ask us anything about this product.
Ask a Question-
Whats the trans good to hold?
Suitable for vehicles with power outputs between 500-600HP.
