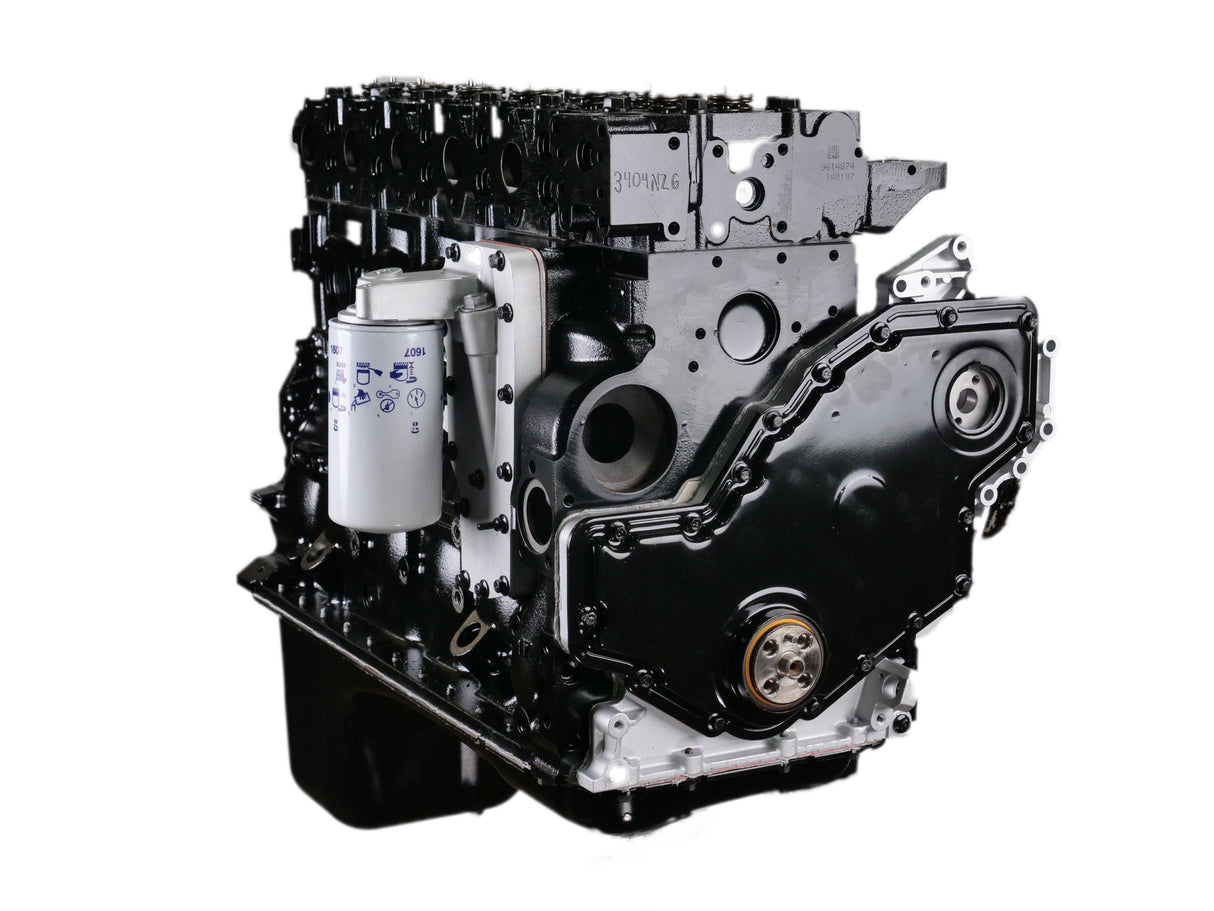

2003-2007 Cummins Common Rail Street Performance Long Block (DJPLB100016)

D&J Precision Machine Part Number: DJPLB100016
$24,954.98 CAD

Purchase to earn 24954 Dirty Dollars Learn More


*Asterisks indicates a required selection.

Year*

D&J Long Block Lead Time*

I understand and am aware of the 4-5 week MINIMUM build time on this product

Additional Refundable Core Deposit Required of $4,300.00 CAD.

Description

Fits

 Year Make Engine
2003-2007 Dodge Ram 5.9L Cummins

*IMPORTANT - THIS PLATFORM IS RATED FOR 1000HP AND 1800LBFT OF TORQUE *MAXIMUM EFFORT**

These D&J Long Blocks come fully assembled with the highest quality build methods & parts. Each block is CNC bored depending on the application, line bored, surfaced as needed, and torque plate honed to exact spec. You also get an oil pan rear crank seal front cover and crank seal, and oil filter housing.

All D&J Precision Machine Street Performance long blocks are blueprinted, balanced, oil clearance measured, and rings file fit. HP Reman Extreme Cummins long blocks are painted black and are shipped pre-lubed with break-in oil and filter included.

Part Number: DJPLB100016

Features

  • Comes fully assembled
  • Industry leading brands included: Mahle Clevite, and ARP
  • Disassembled, crack-checked, blasted, and cleaned machining
  • Each block is CNC bored depending on the application
  • CNC machined for the girdle and studs, and torque plate honed to exact spec
  • Fire Ring grooves are cut into the cylinder head along with custom ARP 9/16" head studs for best head to block seal
  • Extra large HD seats

Includes:

  • All New HD Bronze Valve Guides Installed
  • HD Extra Large Intake Seats Installed
  • HD Extra Large Exhaust Seats Installed
  • Industry Leading 5-Axis CNC Port Job
  • Thread In Soft Plugs Under The Valve Cover
  • High-Performance CNC Valve Job Performed
  • New OEM Valve Seals Installed
  • New 103# Springs Installed

Additional Info


Standard Street Performance 5.9 Cummins Build:
  • D&J X-Beam Stock Length Billet Rods
  • New Pistons
  • 12mm ARP main studs
  • D&J ARP 9/16" Head Studs Torqued to 175ft/lbs
  • Fire Ring Cut into Cylinder Head
  • D&J HD 7/16" Pushrods
  • D&J 200 CFM Stage 1 High-Performance Cylinder Head
  • D&J tow performance cast cam
  • New OEM Tappets
  • New OEM Oil Cooler
  • New OEM Oil Cooler Housing
  • New OEM Oil Pump
  • New Crankshaft Seals
  • Billet soft plugs front rear and side

Notes

  • Cores must include usable block, crank, cylinder head, rocker bases, oil pan and bolts, pickup tube, timing gear housing, timing gear housing cover and bolts, rear seal housing and bolts, piston cooling nozzles and bolts, lower rocker box and bolts. If there are issues with any of the parts you will NOT be charged the full core amount, just the amount to replace the bad part.
