2003-2007 Cummins Stage 4 48RE Transmission & Converter Rebuild Kit (1063014)

Name: 2003-2007 Cummins Stage 4 48RE Transmission & Converter Rebuild Kit (1063014)
Brand: BD Diesel
SKU: 1063014
Price: 3804.95 CAD
Availability: InStock

BD Diesel Part Number: 1063014

$3,804.95 CAD

Notices

This item may have additional freight costs. Learn More

This product will automatically bundle the following item:

Core Charges
After you have made your purchase, please follow the steps listed below to receive your refundable Core charge. This process must be completed within 60 days of receiving your product(s). Failure to send us the core(s) within the 60 day timeframe will result in you only receiving a partial refund amount of the core deposit.

1) On the outside of the ORIGINAL box, please write "Core Return" and your Original Invoice Number/Order Number.

2) Ship your core with tracking to:

Unit 6 - 1060 Stevens Road, West Kelowna BC Canada V1Z1A3

3) Once we receive the Core here at the shop, it will be inspected to ensure that it is rebuildable. After the inspection is passed, your core charge will then be refunded (giving you more money for truck parts!).

Note:

Dirty Diesel Customs does not cover return shipping costs for core items. You are responsible for all shipping expenses associated with returning their core.

If you have purchased a BD Diesel product, please follow their core-return program which can be found here.

If you have purchased a Fleece Performance product that has a core charge, please follow the Fleece Performance Core Return instructions found here.

If you have purchased a Randys Transmission product, we must receive the core no later than 30 Days after the product delivery date.

Failure to follow these steps may result in a delay/denial of your core refund.

Failure to send us the core(s) within the 60-day timeframe will result in you only receiving a partial refund amount of the core deposit.

0-60 Days: Full Deposit if the core passes the inspection.

61-120 Days: 25% of your eligible core refund amount will be deducted.

121-182 Days: 50% of your eligible core refund amount will be deducted.

183+ Days: Your Core Charge is no longer refundable

Let us know if you have any questions or concerns. We can be reached at 778-754-7090 or feel free to email sales@dirtydieselcustoms.com.

Purchase to earn 3804 Dirty Dollars Learn More

Truck Fitment

Description

Fits

Year	Make	Engine
2003-2007	Dodge Ram	5.9L Cummins w/ 48RE

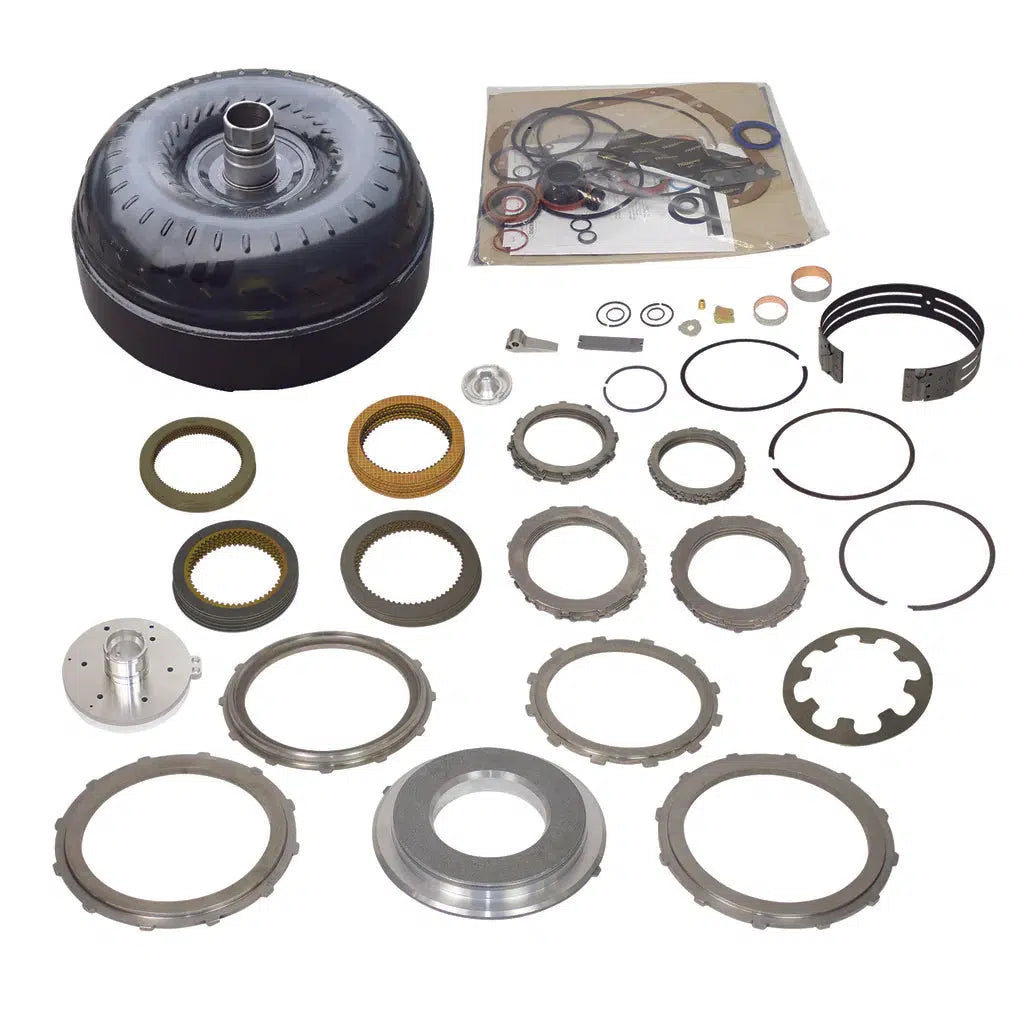

The perfect all-in-one kit for your 48RE, whether your truck is stock or modified these kits include all the basic parts and gaskets you need to competently rebuild your transmission. Featuring BD's ProForce 3D multi-disc converter, CNC machined billet cover to prevent warping, improper balancing & increased strength, retains a smooth & reliable vibration damping.

Part Number: 1063014

Transmission

Same parts used in our own performance transmissions
All kits include the basic rebuild parts and gaskets
Band - High Temp/Energy - Raybestos
Band Anchor - Billet
Accumulator Piston - Billet Dual Ring
Bushing - Front Clutch Drum 0.85, Pump - Bronze W/Dimples
Clutch Disc
Friction - Front (Dir/Hi/Rev) Allomatic, O/D Allomatic, O/D Direct Borg Warner, Rear (Fwd) Borg Warner
Shifter Bracket & Lever Kit - 4.2 Ratio
Gasket Kit - Overhaul
Pressure Plate - Dir/Fwd (Frt) .145", Dir/Fwd (Frt) .185"
BD Pressure Plate Forward (Rr) Beveled Machined, O/D Brake F&R Machined
BD Piston - Dir. Clutch (Frt) Machined
Piston Retainer Kit
Servo Cover Ring, Piston Cover
Snap Ring - Direct Clutch .062, Direct Clutch .074, Direct Clutch .088
Rear Clutch Piston Spring
Steel - Fwd (Dir/Hi/Rev), O/D Brake, O/D Dir .525", Frt (Dir/Hi/Rev) Oversize
Strut - Front Band
Washer - Int. Shaft Thrust .052

Converter

Enhanced Stall - Street/Towing applications
HD springs absorb shock of engagement
Increased clutch count
Stamp forged 1-piece cover
Eliminates warpage from clutch heat
Taller cover can be rebuilt more often
Trapezoid teeth design
Engineered tighter tolerances
Self-centering trapezoid teeth design increases contact decreases wear and chatter
Thrust bearings - not plastic thrust washers
Riveted piston ensures alignment & eliminates vibration or embrittlement from welding
Cast stator designs maximizes torque
New sprag components ensure long term durability
Furnace brazed turbine fins for improved fluid coupling efficiency
Reduced overall weight by 12lbs compared to competitors

Notes

No Race abuse covered
Billet input shaft strongly recommended for use with ProForce 3D Torque Converter

Warranty

Parts
- Converter: 36-Months / Build It: 12-Month
- Converter: 150,000-Miles / Build It: 12,000-Miles
Labor
- Converter: 12-Months / Build It: NA
- Converter: 12,000-Miles / Build It: NA

Questions and Answers

Previously asked questions

We've compiled a list of questions and answers below.

Don't see your question? Ask us anything about this product.

Ask a Question

Does this converter require a billet input shaft?

No, the torque converter included in this kit does not physically require a billet input shaft to bolt together, but BD Diesel strongly recommends installing one.
