2003-2007 Cummins CR Race Short Block (PDM-59RSB)

Industrial Injection
Regular price $24,263.74 CAD

Notices

This item may have additional freight costs. Learn More

This product will automatically bundle the following item:

Purchase to earn 24263  Dirty Dollars Learn More

Description

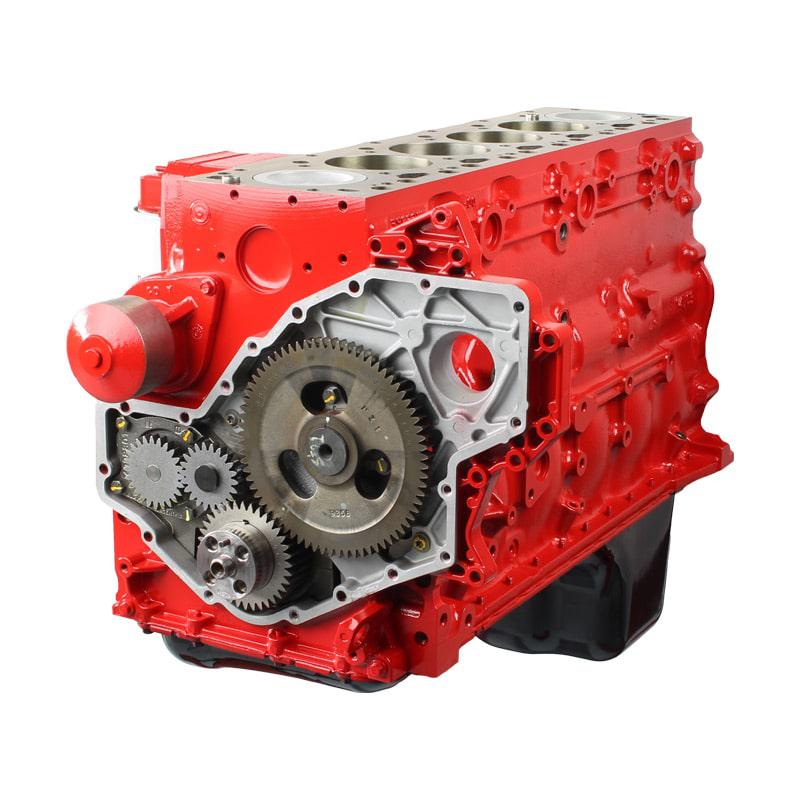

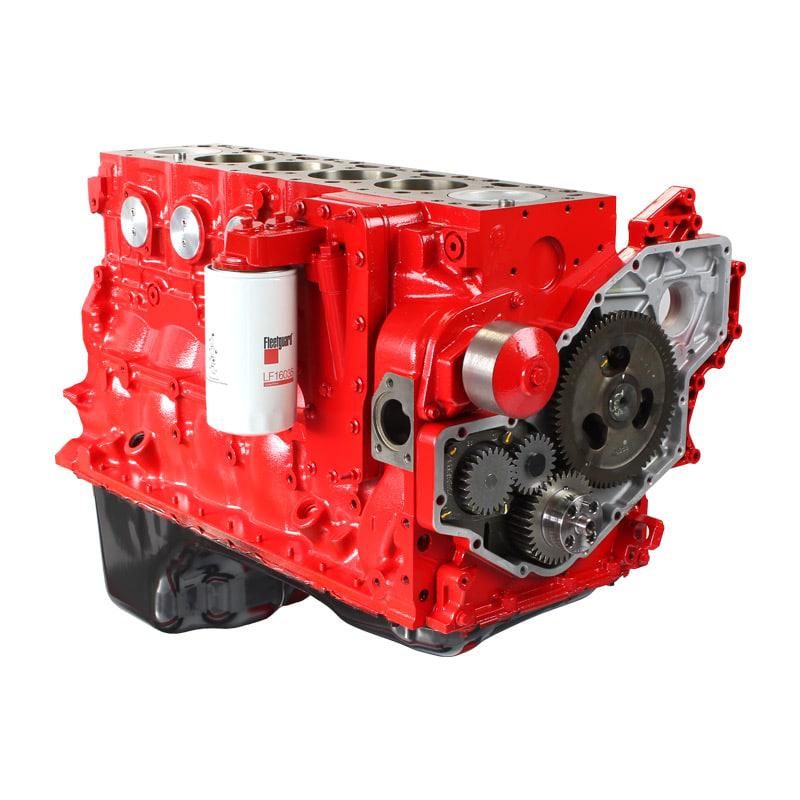

Industrial Injection's Race Performance Short Block for the 2003-2007 5.9L Common Rail Cummins is a competition-grade bottom end built to live behind big fueling and large turbo upgrades. Each assembly is balanced, blueprinted, and sim-tested before it ships.

The package pairs Carrillo billet rods with HD bolts, fly-cut and coated pistons with .100 valve reliefs, a 14mm Gorilla Girdle on ARP studs, and a Stage 2 race performance camshaft on top of a fully refreshed oiling system.

Features

  • Balanced and blueprinted rotating assembly, sim-tested short block
  • Carrillo billet rods with HD bolts
  • Fly-cut, coated, chamfered pistons with .100 valve reliefs
  • 14mm Gorilla Girdle with ARP main studs
  • Balanced Cummins crank
  • Industrial Injection Stage 2 race performance cam
  • Cam bearings installed in all journals
  • Coated H series main and rod bearings, billet freeze plugs, new Cummins tappets
  • New oil pump, water pump, oil cooler, and oil pickup tube
  • Big Iron stamped oil pan

Notes

  • Requires Joe Gibbs Break-In Oil (not included) for the initial 300-500 miles
  • Core deposit required at checkout
