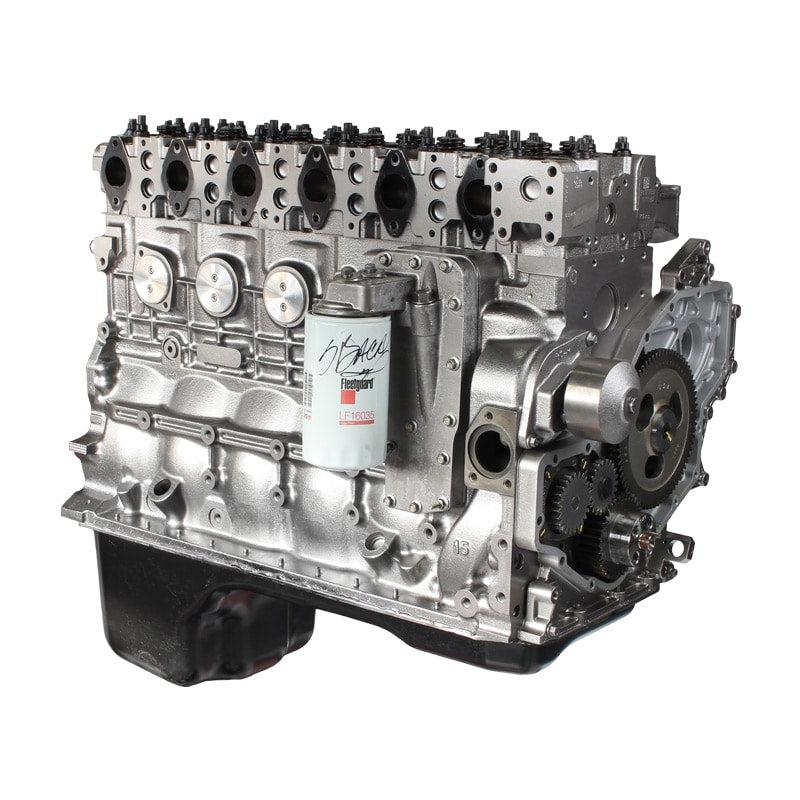

2003-2007 Cummins CR Race Long Block (PDM-59RLB)

Industrial Injection
Regular price $37,519.37 CAD

Notices

This item may have additional freight costs. Learn More

This product will automatically bundle the following item:

Purchase to earn 37519  Dirty Dollars Learn More

Description

Industrial Injection's Race Long Block for the 2003-2007 5.9L Common Rail Cummins is a competition-oriented build pairing a fully balanced and blueprinted bottom end with a Stage 1 race-ported cylinder head. Each short block is sim-tested before assembly and built with high-end components.

Carrillo billet rods with HD bolts, fly-cut and coated pistons with .100 valve reliefs, a 14mm Gorilla Girdle, and a Stage 2 race performance camshaft sit beneath a hand-blended CNC-ported head with stainless valves, a fire-ringed deck, and ARP 625 studs.

Features

  • Balanced and blueprinted rotating assembly, sim-tested short block
  • Carrillo billet rods with HD bolts
  • Fly-cut, coated, chamfered pistons with .100 valve reliefs
  • 14mm Gorilla Girdle with ARP main studs, balanced Cummins crank
  • Industrial Injection Stage 2 race performance cam, cam bearings in all journals
  • Coated H series main and rod bearings, billet freeze plugs, new tappets
  • New oil pump, water pump, oil cooler, oil pickup tube, Big Iron oil pan
  • Stage 1 race performance ported cylinder head with hand-blended CNC porting
  • Intake shelf machined to accept ZZ Fab side runner
  • New diamond-honed valve guides, new stainless valves, 95 lb performance valve springs
  • Milled and fire-ringed head with radius-cut fire ring head gasket, ARP 625 head studs
  • Drilled and tapped coolant freeze plugs

Notes

  • Does not include valve cover, rockers, pushrods, or additional assembly gaskets
  • Does not include ZZ Fab side runner
  • Requires Joe Gibbs Break-In Oil (not included) for the initial 300-500 miles
  • Core deposit required at checkout
