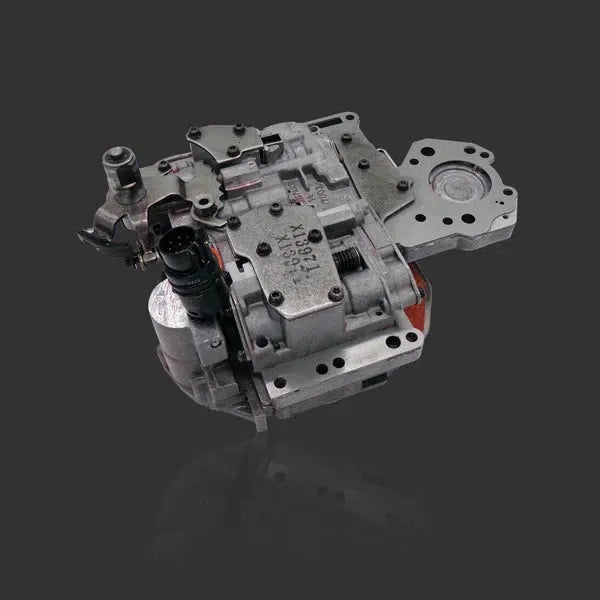

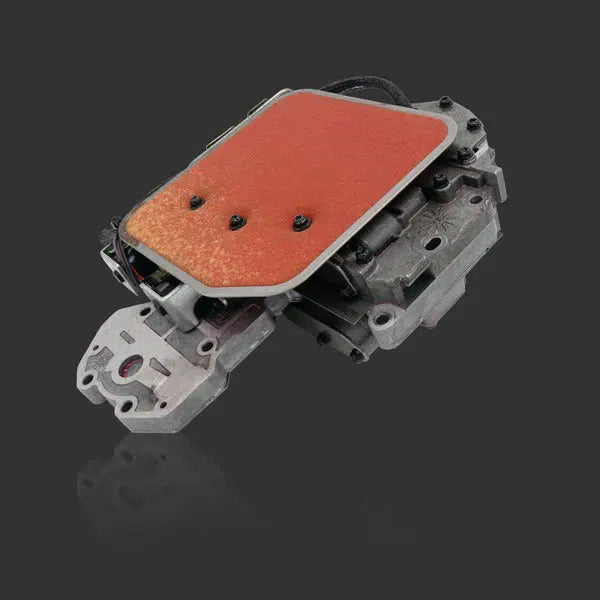

2003-2007 Cummins 48RE Full Manual Valve Body (MPT-48RE)
Purchase to earn 1335 Dirty Dollars Learn More
Core Deposit
After you have made your purchase, please follow the steps listed below to receive your refundable Core charge. This process must be completed within 60 days of receiving your product(s). Failure to send us the core(s) within the 60 day timeframe will result in you only receiving a partial refund amount of the core deposit.
1) Send an email to sales@dirtydieselcustoms.com or give us a quick call (778-754-7090) and let us know that you will be shipping us a Core, please include your Original Invoice/Order Number so we can link up your file.
2) On the outside of the ORIGINAL box, please write "Core Return" and your Original Invoice Number/Order Number.
3) Ship your core with tracking to:
Unit 6 - 1060 Stevens Road, West Kelowna BC Canada V1Z1A3
4) Once we receive the Core here at the shop, it will be inspected to ensure that it is rebuildable. After the inspection is passed, your core charge will then be refunded (giving you more money for truck parts!).
Note:
- If you have purchased a BD Diesel product, please follow their core-return program which can be found here.
- If you have purchased a Fleece Performance product that has a core charge, please follow the Fleece Performance Core Return instructions found here.
- If you have purchased a Randys Transmission product, we must receive the core no later than 30 Days after the product delivery date.
- Failure to follow these steps may result in a delay/denial of your core refund.
- Failure to send us the core(s) within the 60-day timeframe will result in you only receiving a partial refund amount of the core deposit.
- 0-60 Days: Full Deposit if the core passes the inspection.
- 61-120 Days: 25% of your eligible core refund amount will be deducted.
- 121+ Days: 50% of your eligible core refund amount will be deducted.
Let us know if you have any questions or concerns. We can be reached at 778-754-7090 or feel free to email sales@dirtydieselcustoms.com.
Learn more.
Description
Description
Fits
Year | Make | Engine |
2003-2007 |
Dodge Ram |
5.9L Cummins w/ 48RE Transmissions |
Muldoons Full manual valve body; provides your 48RE with second gear lock up, this locks torque converter as soon as second gear is manually shifted, lockup switch must be on. And with no governor pressure solenoids/ transducers you will have a much more consistent shifts on high pressure valve bodies.
Part Number: MPT-48RE
Features
Features
- 2nd Gear Lockup
- Locked 4-3 Downshift
- No use of governor pressure solenoids/ transducers
- Valve Body Pressure adjustment and guideline instructions
- Tested OD/TCC Solenoid
- Custom laser cut separator plates
- Castings flat sanded
- Castings cleaned in ultrasonic cleaner
- All threads checked and repaired if needed
- Bores vacuum checked and repaired for excessive wear
- Static line pressure set to 150PSI and 190PSI in 4TH/TCC Lockup. Valve body does not require any external line pressure adjustment.
Notes
Notes
- MPT manual valve bodies are not shipped with 48RE rooster combs, if your manual valve body is being installed in a 48RE, please keep your existing rooster comb and swap it when you receive your manual valve body.
- Muldoons accepts 47 or 48 valve bodies as a core. If your valve body has been modified with anything other than a Transgo shift kit, please email us with images of your core. We do NOT accept BD, ATS or Sonnax valve bodies as cores.
Questions and Answers
Questions and Answers
Previously asked questions
We've compiled a list of questions and answers below.
Don't see your question? Ask us anything about this product.
Ask a Question-
How does the throttle valve work with the 47RE FMVB?
With a full manual valve body, the function of the throttle valve becomes irrelevant. Its primary job of modulating line pressure is eliminated because the FMVB keeps line pressure at a consistently high level for maximum clutch holding power. You are now in complete control of all shifts.
