2003-2005 Powerstroke Performance 4.5" Lift Kit (CS-FEXP25-60)

Fits

Note: Review 'Notes' tab for fitment details

Even if you dont own an Excursion, it is apparent these units are big and very top-heavy, so naturally, not every lift kit has the quality or durability to properly support this platform. Enter the Carli Performance 4.5" Lift Kit, featuring custom-tuned 2.5 series King Shocks with 9" of travel, 12" stroke with a custom hose to route the reservoir out from under the bed. These shocks provide exceptional highway and off-road performance without compromises. Deaver progressive leaf spring packs all around give you a true lifted, but leveled ride.

Part Number: CS-FEXP25-60

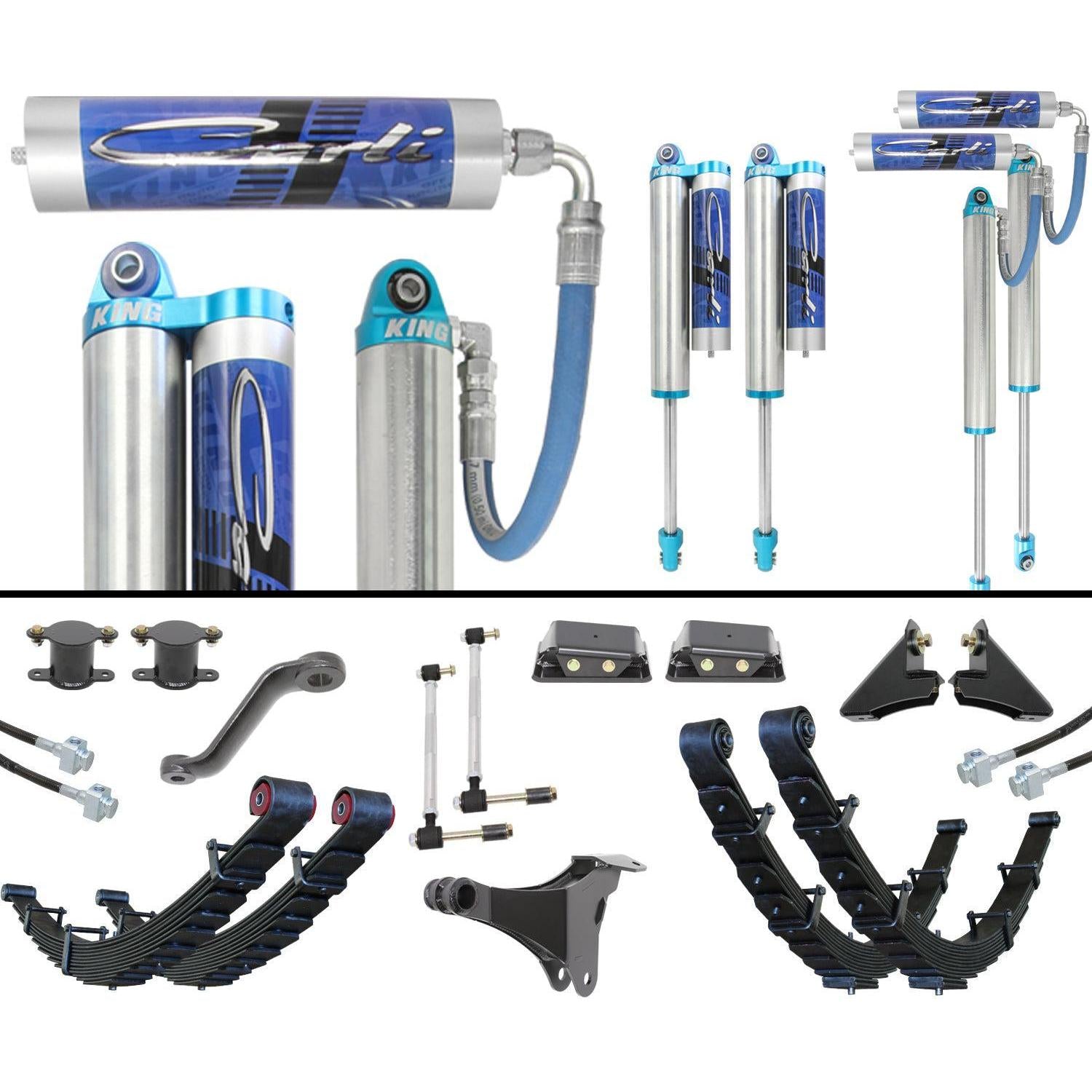

• Carli Spec King 2.5" shocks, front and rear leaf springs, brake lines, front and rear bump stop drops, front sway bar links, drop pitman arm, track bar drop, and rear shock mounts
• Front and rear Carli Spec Deaver leaf springs provide 50% more suspension travel and a much smoother ride
• Carli Spec King shocks featuring Carli 5-Port pistons are tuned for great ride quality and superior control
• Easily clear 35" tires with no trimming and a full range of travel

• Rear upper shock mounts require welding
• The rear springs are a reduced capacity spring pack (reduces payload/hauling capacity to a “light” ¾-ton). If capacity is a concern, the Full Progressive Leaf Springs can be supplemented back to the factory capacity with the addition of Carli Excursion-specific Long-Travel Airbags.
• All King shocks are built with a plated steel body. If subjected to inclement weather for extended periods, we recommend wrapping your shocks in 3M to provide a replaceable moisture barrier.
