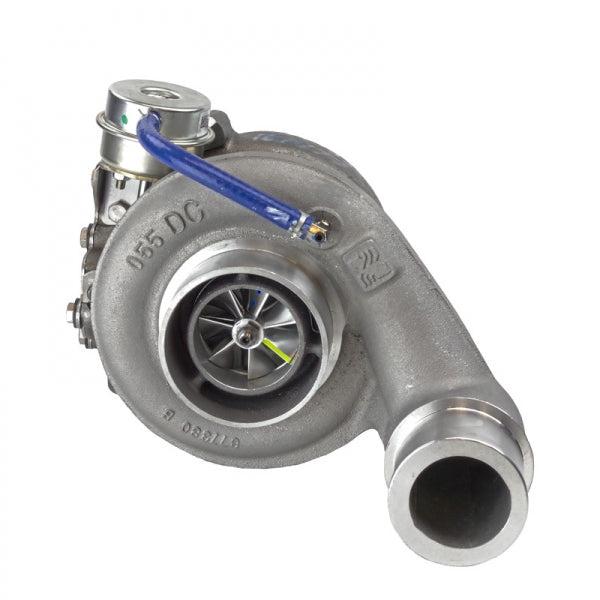

2003-2004 Cummins Super PhatShaft Turbos (362240711A)
If your order ships from the USA, Canada charges an import tariff on US-made turbos. It's added at checkout as its own line, not built into the price.
Purchase to earn 3529 Dirty Dollars Learn More
Description
Description
The Industrial Injection Super PhatShaft Series turbo for the 2003-2004 5.9L Common Rail Cummins runs an extended-tip 62mm, 64mm, or 66mm forged milled compressor wheel paired with a 71mm turbine wheel and a 14 cm exhaust housing. Industrial Injection reshapes the exhaust nozzle angle, opens the wastegate ports, and enlarges the wastegate chamber for full wastegate travel. Dual-grooved high-performance journal bearings, a 360-degree thrust bearing, and an adjustable boost elbow round out the package.
Features
Features
- 62mm, 64mm, or 66mm forged milled compressor wheel (extended tip)
- 71mm turbine wheel
- 14 cm exhaust housing with reworked nozzle and wastegate
- 360-degree thrust bearing
- Dual-grooved high-performance journal bearings
- Adjustable boost elbow
- Drop-in replacement
Notes
Notes
- Requires HX40 downpipe
