2003-2004 Cummins 48RE Roadmaster Transmission & Converter Package (2WD) (1064142SS)

Fits

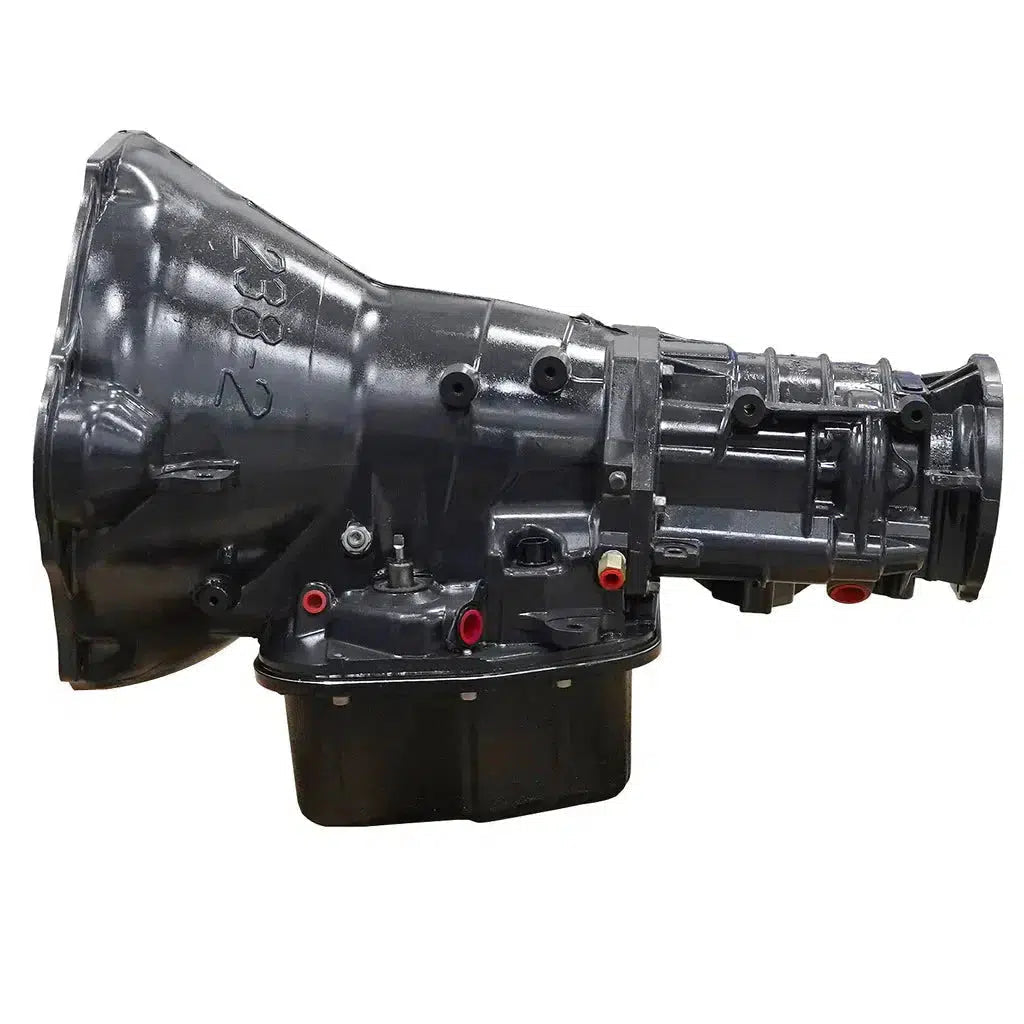

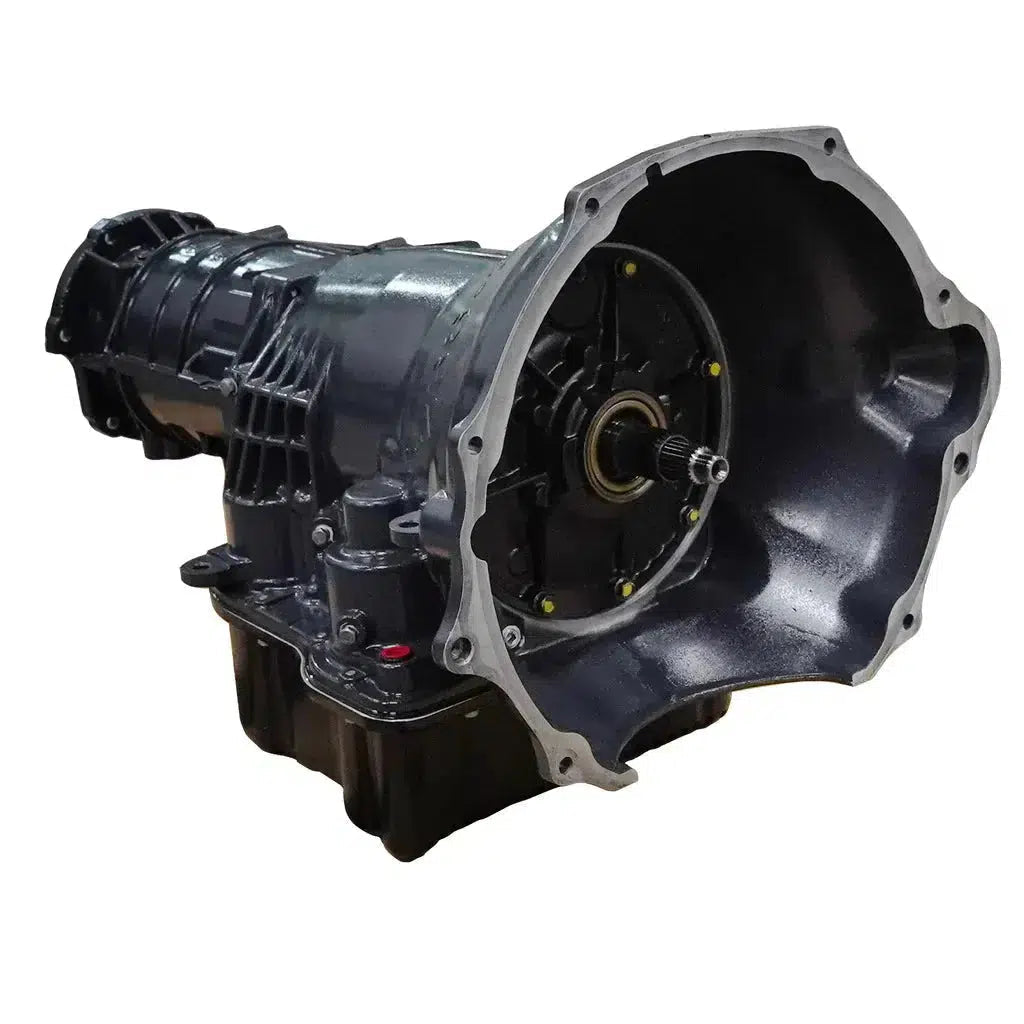

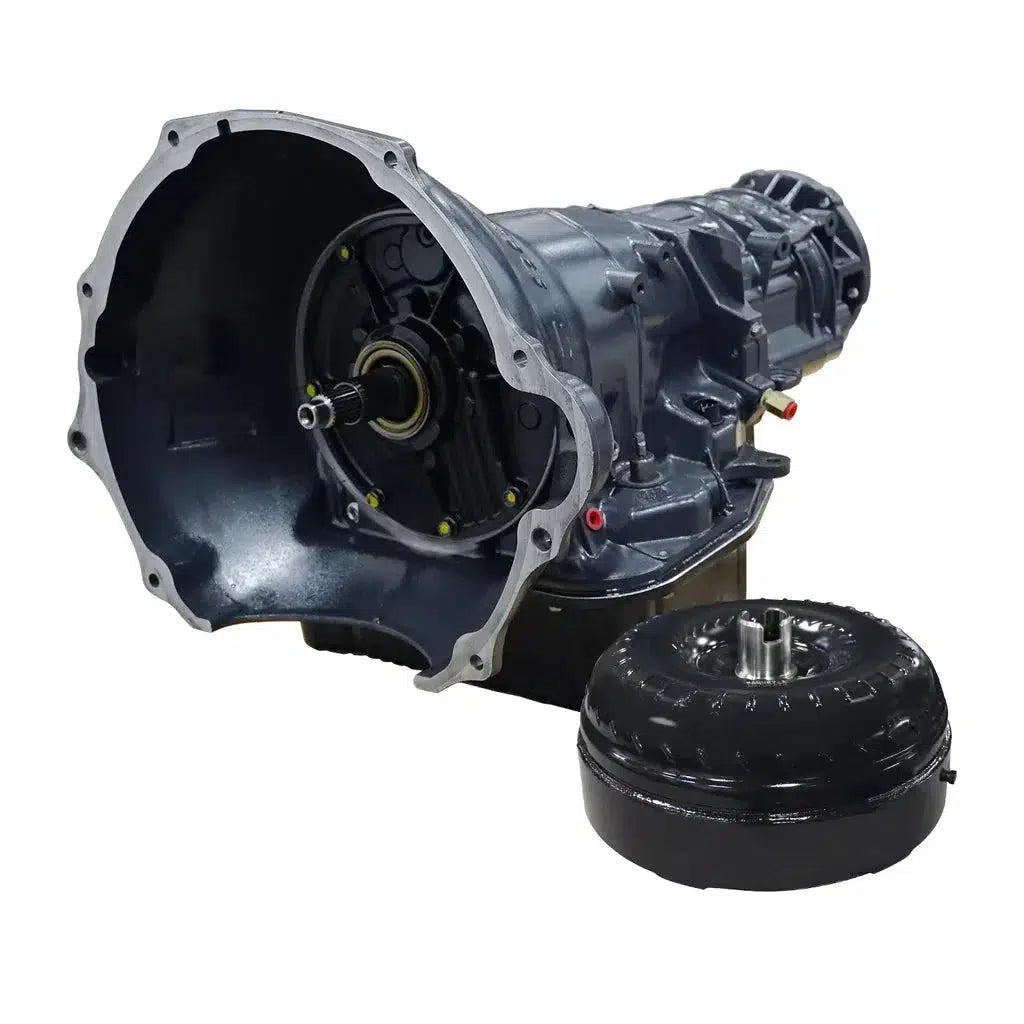

This transmission is fully remanufactured and includes the BD Valve Body with modifications to enhance shift quality and prolong transmission life. The valve body also has a new heavy-duty governor pressure solenoid and upgraded pressure transducer kit with twice the burst pressure of stock. For added fluid capacity and cooling, a deep sump oil pan is included in the RoadMaster package. Plus, every 48RE RoadMaster transmission comes with a BD ProForce Torque Converter.

Part Number: 1064142SS

TRANSMISSION:

• Upgraded BD Valve Body
• Upgraded governor solenoid
• Upgraded governor pressure transducer (47RE/48RE) - Twice the burst pressure than stock
• Increased line pressure to 190-200psi
• No shuttle shifting problems
• Clutch Count: DIRECT 5 (same as OE)
• Clutch Count: FORWARD 4 (same as OE)
• Clutch Count: OD 5 (same as OE)
• Clutch Count: OD DIRECT 10 (same as OE)
• Billet band strut
• BD deep sump oil pan with magnetic drain plug
• Cooler line case saver in every transmission
• Every transmission is tested on a dyno

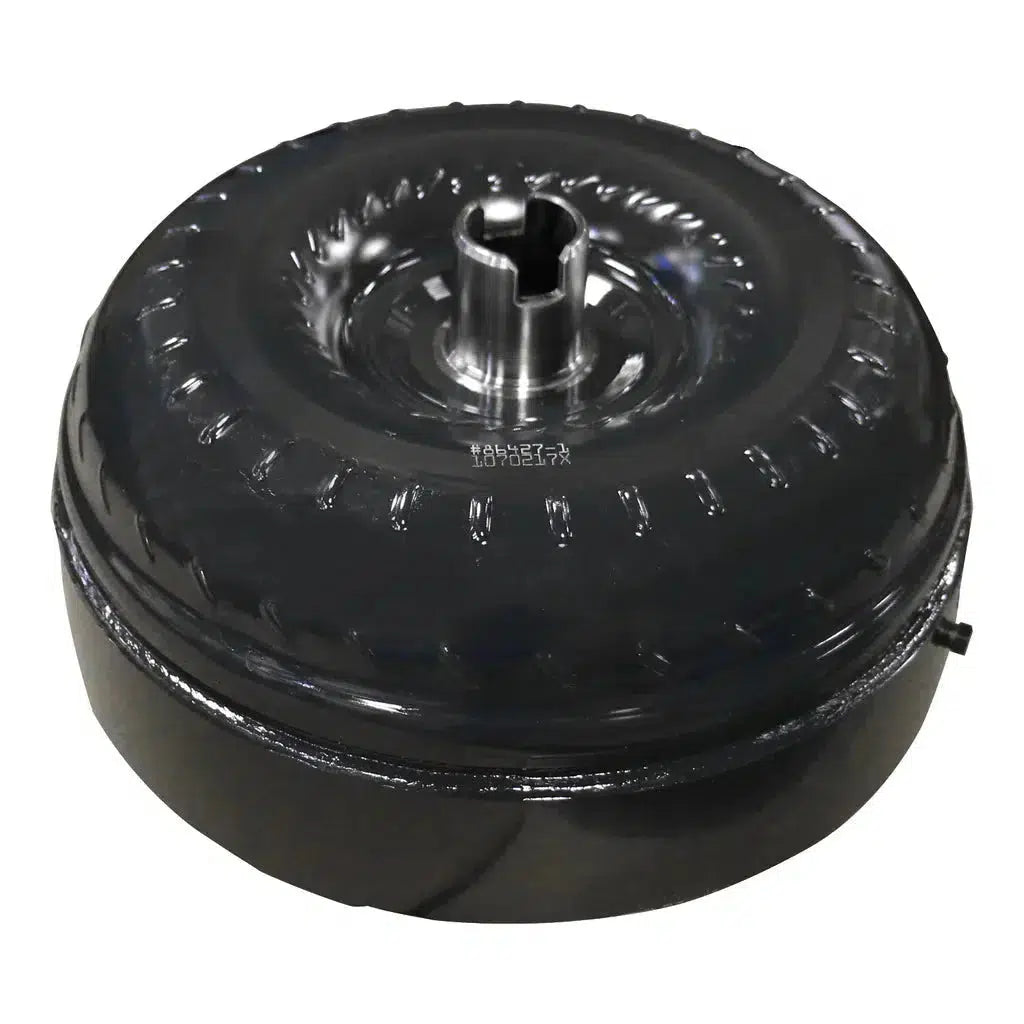

TORQUE CONVERTER:

• Enhanced Stall - Street/Towing applications
• Torque multiplying cast aluminum stators
• Lower rpm response than the stock converter
• More efficient operation
• Less heat and better fuel economy
• Billet-forged front cover
• Furnace-brazed turbine fins

• 7.5-Hours
• Click Here

Parts Only - No Race abuse covered

• 24-Months
• 100,000 Miles
