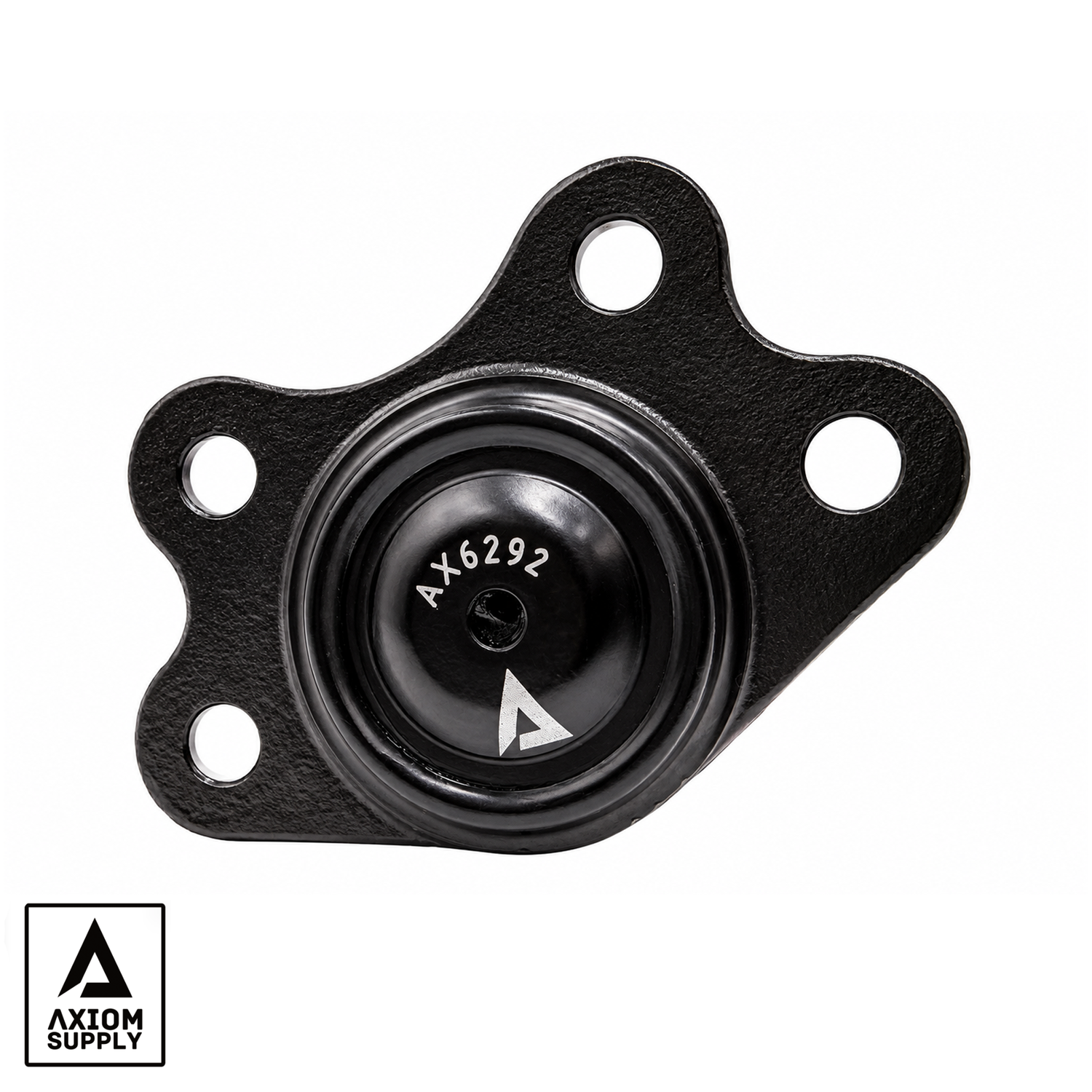

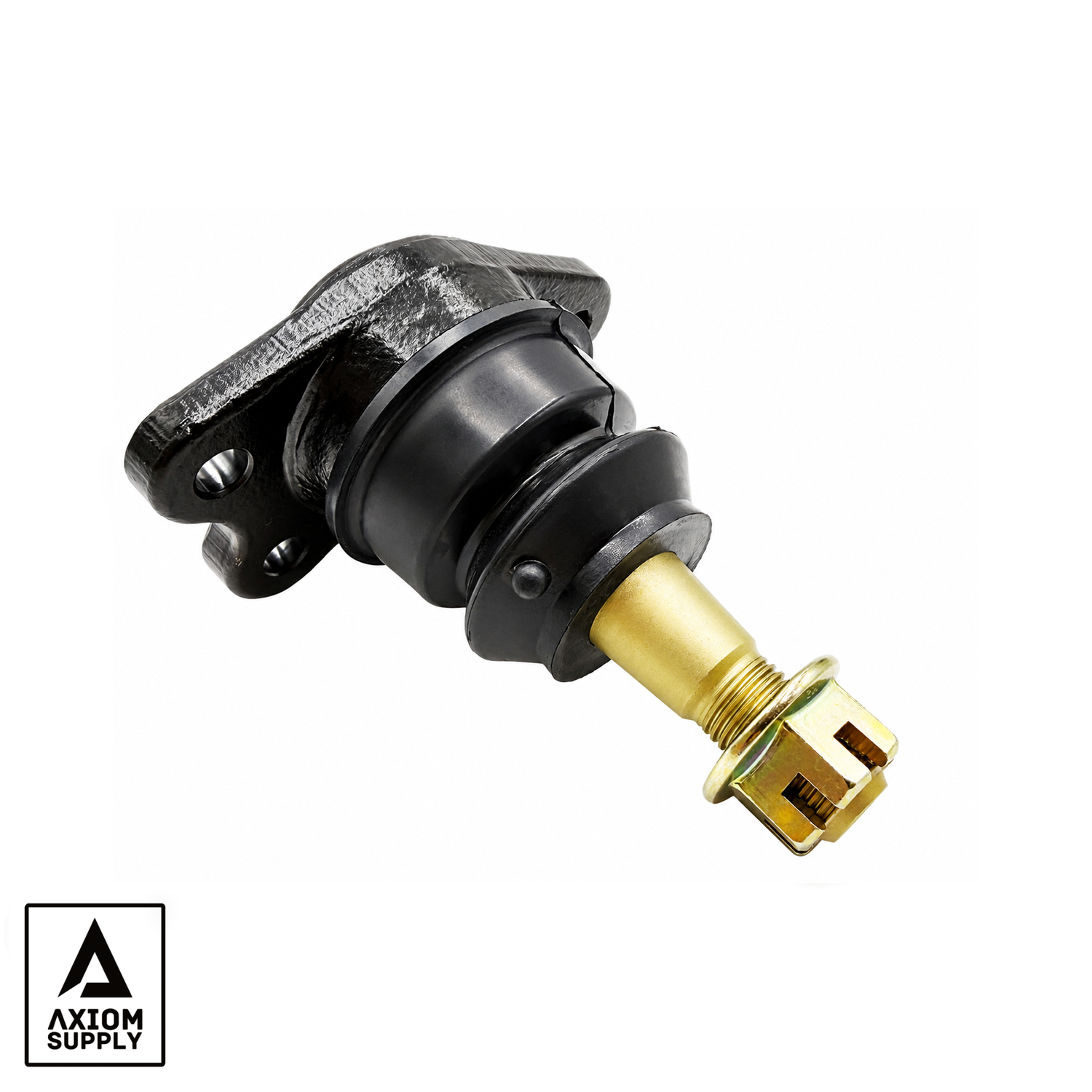

2001-2026 Duramax HD Bolt-On Upper Ball Joint (AX6292)

The AX6292 was built with one goal: the strongest bolt-on upper ball joint you can put on a GM truck. A Grade 12.9 Extreme-Duty ball stud sits in a forged steel housing with a precision internal bearing assembly and a self-compensating load system that keeps steering tight as the joint wears. It is fully greaseable, high-articulation, and a direct replacement anywhere a K6292-style bolt-on upper ball joint is specified.

Part Number: AX6292

• Grade 12.9 Extreme-Duty ball stud, the first in its class, for maximum tensile strength and fatigue resistance
• Forged steel housing built for towing, oversized tires, lifted suspensions, and off-road abuse
• High-articulation design provides extra operating range for increased suspension travel
• Precision internal bearing assembly for smooth steering response and reduced deflection
• Self-compensating load system maintains proper internal loading as the joint wears
• Fully greaseable, serviceable construction with corrosion-resistant finish
• Ships with high-strength Class 12.9 mounting hardware

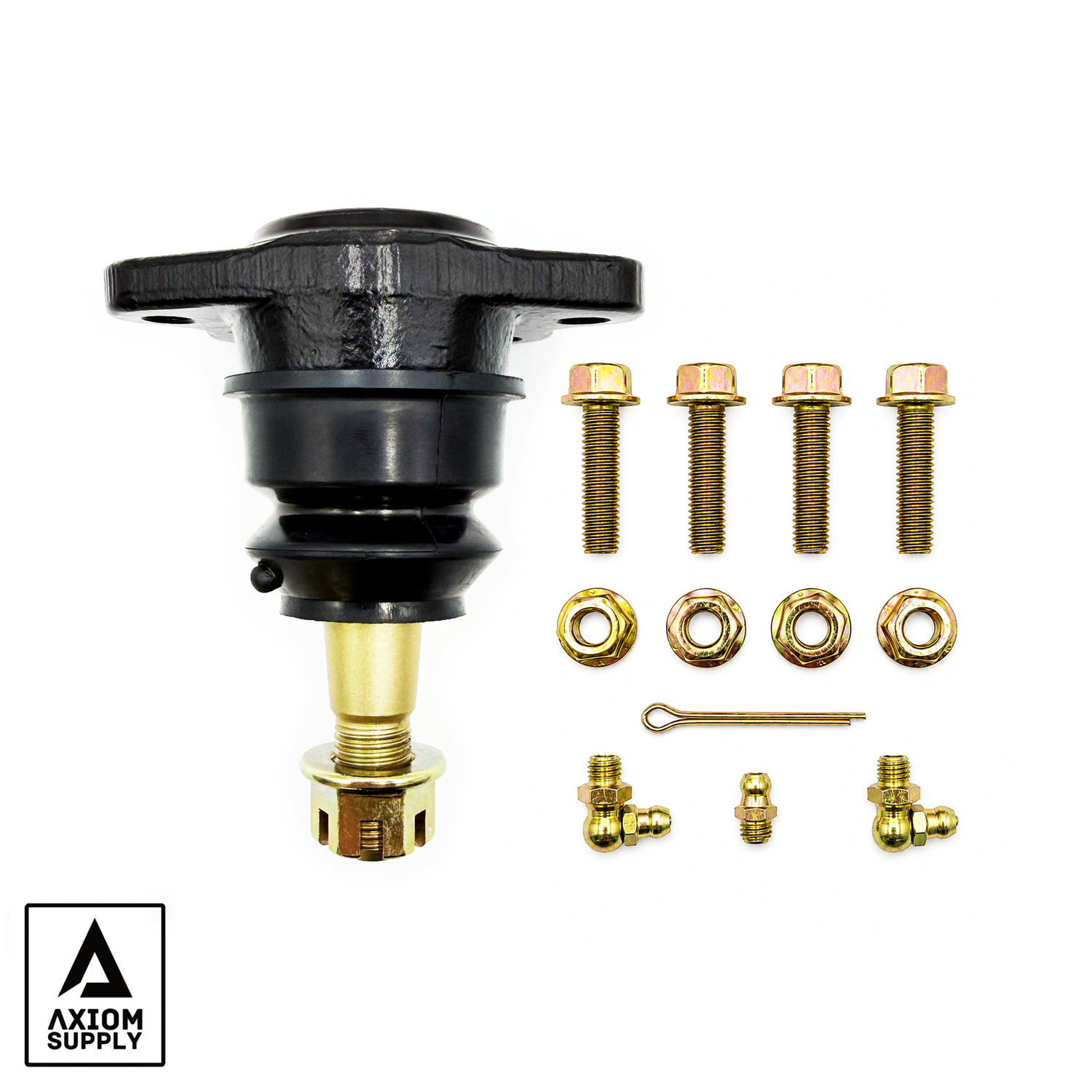

• (1) Axiom Supply AX6292 Heavy-Duty Upper Ball Joint (sold individually)
• (1) Class 12.9 Installation Hardware Kit
• (3) Grease Fittings: (2) 90 degree, (1) straight
• (1) Gold Zinc Cotter Pin and Flanged Lock Nut

• Direct replacement for applications specifying a K6292-style bolt-on upper ball joint; also fits many aftermarket upper control arms using the K6292 bolt pattern.
• Interchanges with Moog K6292, ACDelco 45D0062, Delphi TC1604, Dorman B6292, Mevotech MK6292, Raybestos 500-1062, TRW JBJ7041, NAPA 260-1313, MAS B6292, and Suspensia X07BJ0024.
• GM 1500 applications must be equipped with factory aluminum or stamped-steel upper control arms.
• Torque mounting hardware to 22 lb-ft. Do not use impact tools during installation.
• Apply 2 to 3 pumps of grease at install, then 1 to 2 pumps every 5,000 to 7,000 miles. Do not over-grease.
