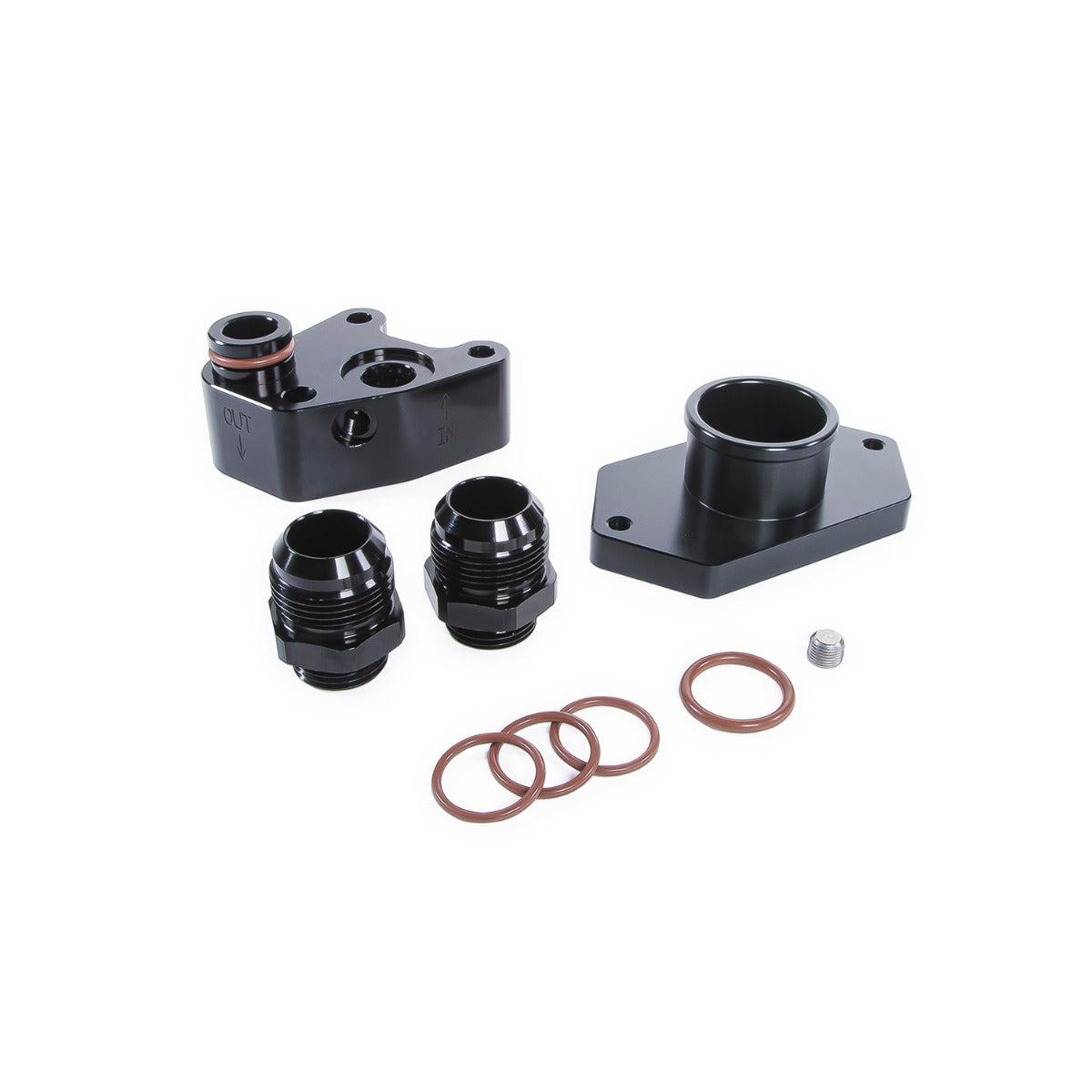

2001-2016 Duramax Internal Oil Cooler Delete (114001000)

Designed for high performance Duramax engines that require remote oil cooler and filtration solutions. Popular for hot rod, marine and race applications that require larger less restrictive cooler/filter systems. The compact design adds additional clearance for tight engine frames.

Part Number: 114001000

• Machined from billet aluminum with hard-anodized black finish
• Uses existing factory oil-cooler mounting bolts
• #12 ORB port, -16AN (1 inch) oil inlet/outlets
• 1/8" NPT oil temp sender port (measures oil temp entering block)
• Includes Engine Coolant Bypass Adapter

• Use with Coolant Tube Kit (114001050)and Remote Filter Mount (114002000)
• Recommended to use with -16AN (1 inch) hose for maximum flow.
