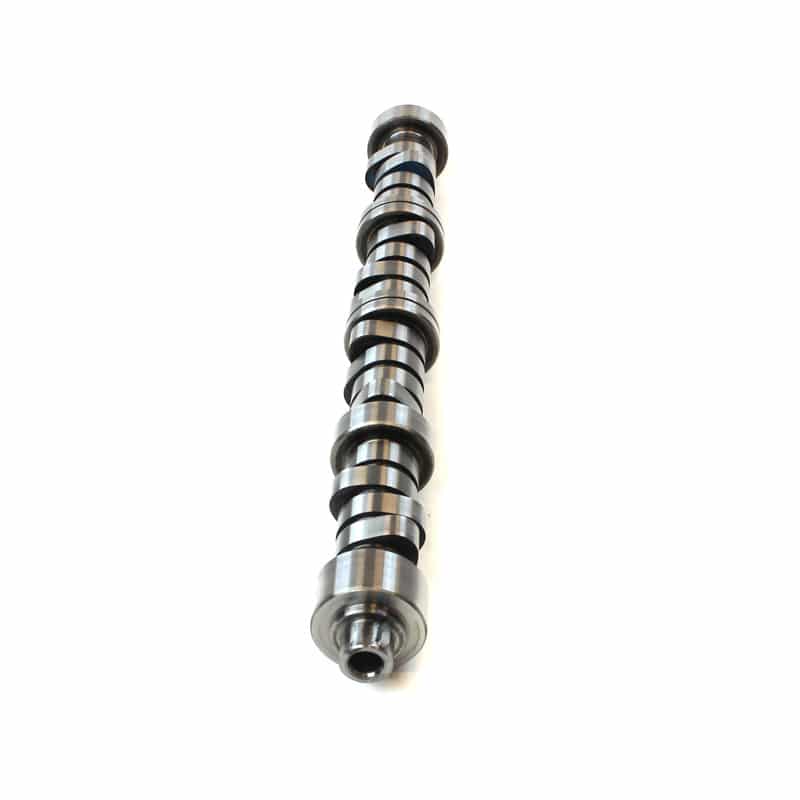

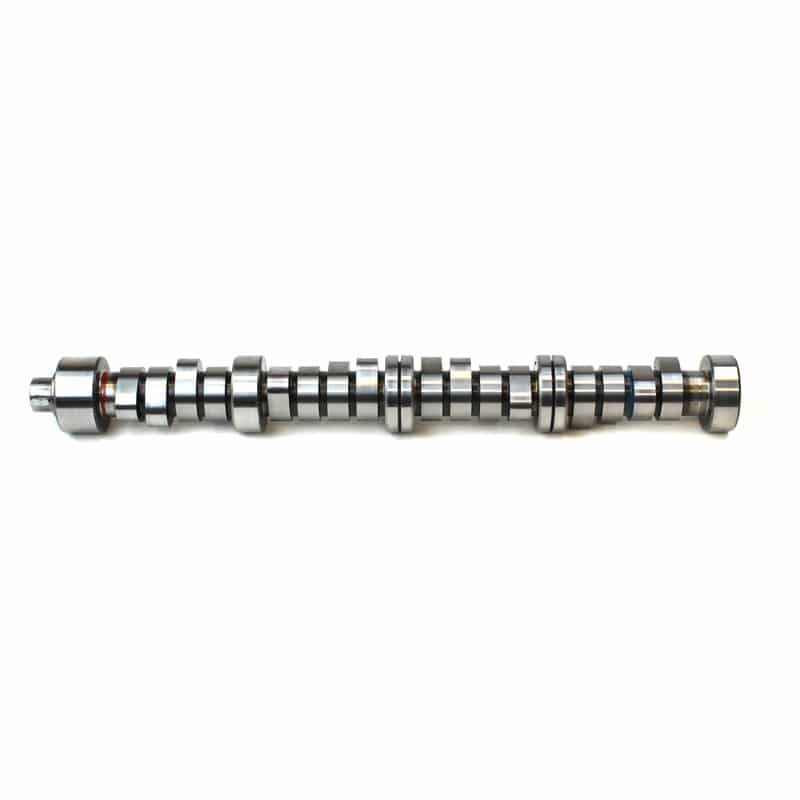

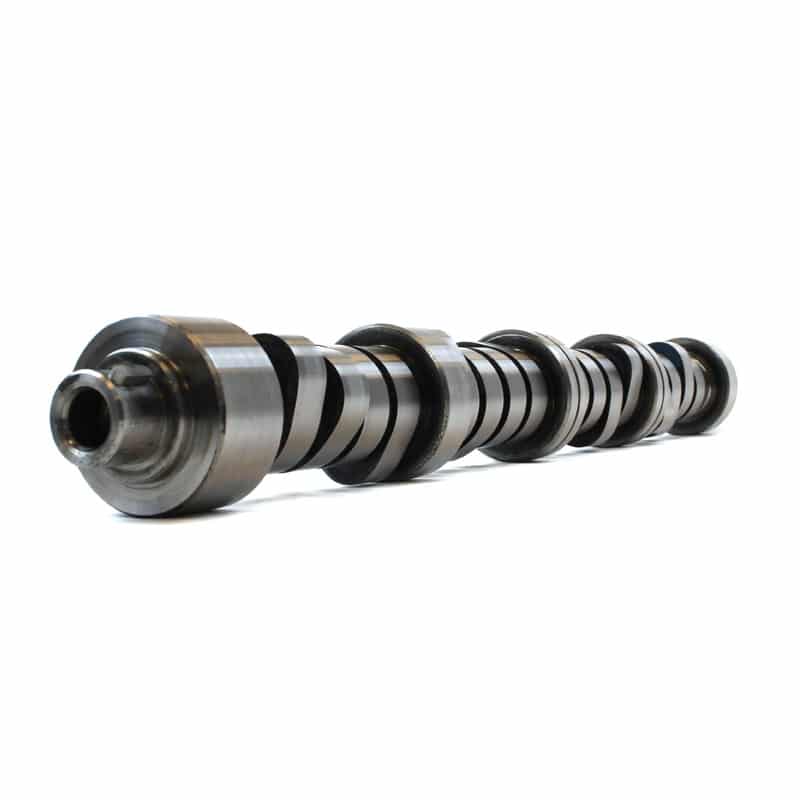

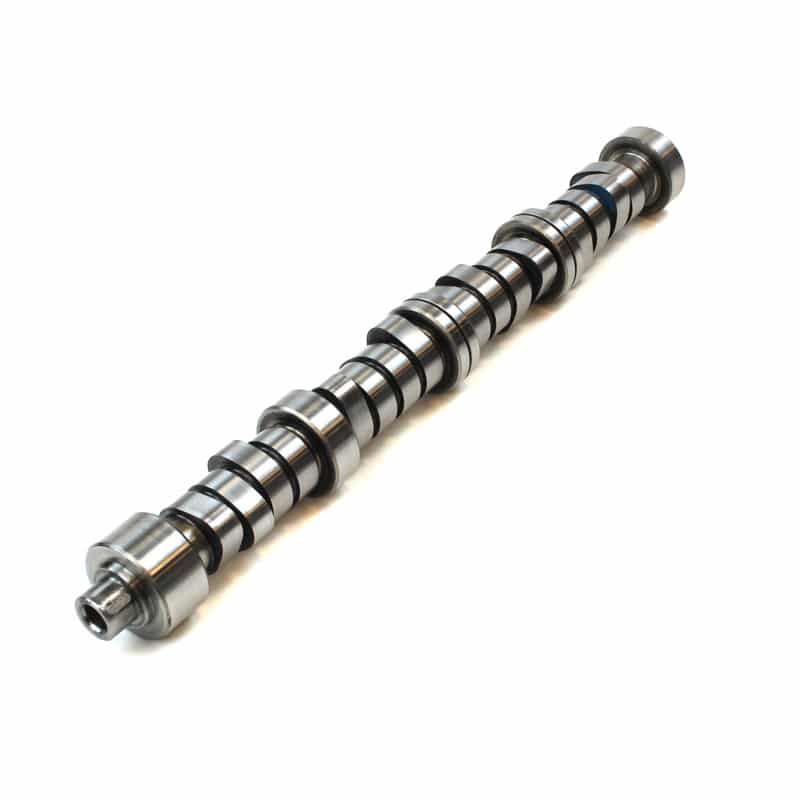

2001-2016 Duramax Stage 2 Race Performance Camshaft (PDM-DMXHP)
Purchase to earn 1396 Dirty Dollars Learn More
Description
Description
Industrial Injection Stage 2 race performance camshaft for 2001-2016 Chevrolet Silverado 2500HD/3500 and GMC Sierra 2500HD/3500 6.6L Duramax (LB7, LLY, LBZ, LMM, LML). The higher-lift race-grind sibling to the Stage 1 drop-in cam — .450" lift on both intake and exhaust with .258/.268 duration.
Features
Features
- Stage 2 Race Performance Camshaft
- Lift: .450" Intake / .450" Exhaust
- Duration: .258 Intake / .268 Exhaust
- Recommended Piston Valve Relief: .080"
- Part Number: PDM-DMXHP
Notes
Notes
- Industrial Injection recommends checking piston-to-valve clearance whenever installing a camshaft. Minimum recommended clearances: .080" intake, .120" exhaust.
- For the milder Stage 1 drop-in cam, see the PDM-DMXRV Stage 1 Performance Camshaft. For the billet alternate-firing race cam, see PDM-DMXAFS.
- Core deposit applies — keep your old camshaft and return it to recover the deposit.
