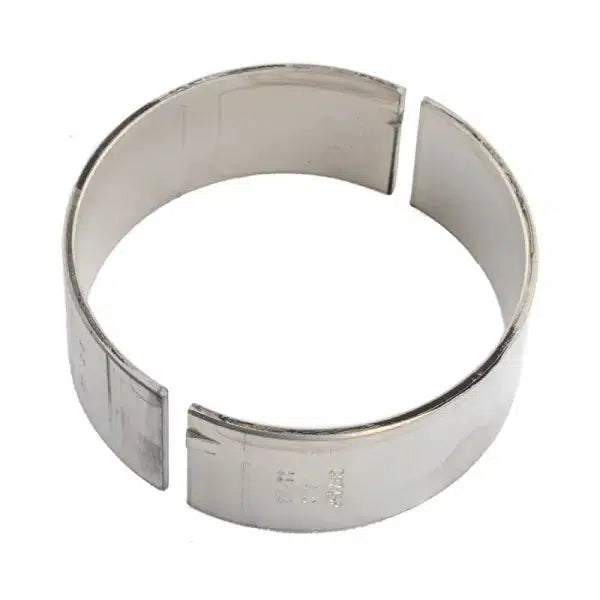

2001-2016 Duramax HX Series Rod Bearing (CB-1805HX)

Industrial Injection HX-series Clevite rod bearing for 2001-2016 Chevrolet Silverado 2500HD/3500 and GMC Sierra 2500HD/3500 6.6L Duramax (LB7, LLY, LBZ, LMM). Race-spec Clevite construction with .001" extra clearance vs. the standard H-series. Sold individually — order 8 for a complete set.

HX-series bearings have a medium level of eccentricity, high crush, hardened steel back, thin overlay, and enlarged chamfers for crankshaft fillet clearance. Made without flash plating for better seating, with the dry-film lubricant coating that protects against cold-start and oil-starvation wear.

• HX Series Clevite Rod Bearing — Sold Individually
• .001" Extra Clearance vs. H Series
• Dry-Film Lubricant Coating
• Hardened Steel Back, Thin Overlay
• Enlarged Chamfers for Fillet Clearance
• Part Number: CB-1805HX

• Sold individually — order 8 for a complete Duramax set.
• For the H-series with standard clearance, see CB-1805H. For the matched H/HX rod bearing set, see PDM-CB-1805HXC.
