2001-2010 Duramax 7" Lift Kit (BDS189H)

Description

Click here to customize this Kit

Fits

This unique High Clearance suspension lift kit utilizes high arched crossmembers that blend perfectly with the angle of the factory-installed lower control arms for a completely integrated look while lifting your vehicle a full 7" dramatically increasing ground clearance at the front crossmembers and improving operating geometry. Torsion bars are mounted directly to the top of the lower a-arm eliminating the need to drop the torsion bar crossmember.

Part Number: BDS189H

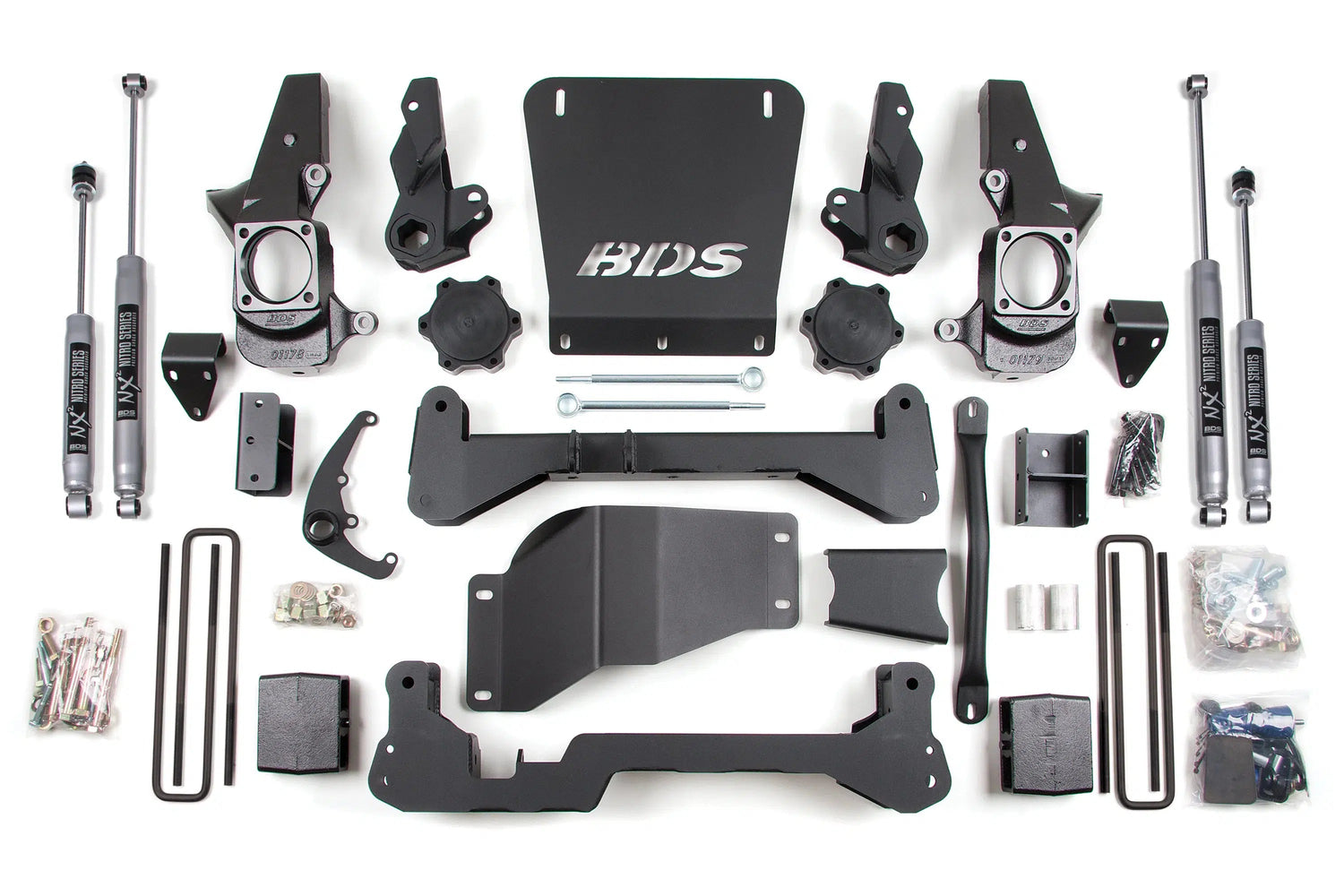

Features

• 7" High Clearance IFS
• 5" Flat Rear Block Kit
• Front Skid Plate
• Differential Skid Plate
• NX2 Series Shocks

Tire & Wheel Combinations:

• 35" x 12.50" w/16 x 8 and 4-1/2" back spacing
• 35" x 12.50" w/17 or 18 x 9 and 5.5" back spacing
• 37" x 12.50" w/20 x 9 and 5.75" back spacing

Notes

• Torsion Bar Tool required to load/unload the torsion bars.
• Some welding is required.
• Requires frame bracket modification and differential mount modification.

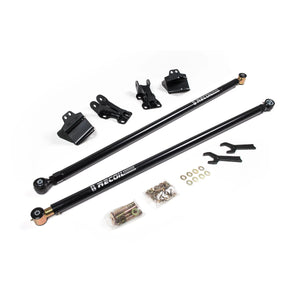

• Traction bars will NOT fit standard cab/short box models and are designed to work on vehicles with 4" to 8" of lift. Will NOT work on long-bed models.
• 20" wheels with 5" to 5-3/4" backspacing are recommended to reduce trimming.
• Gas models require exhaust modification.
• A narrow track knuckle will slightly increase the turning radius.
• For tail high stance use #119157 add-a-leaf with the block kit or #069207 with the leaf spring kit.
• Dually applications will require custom u-bolts.

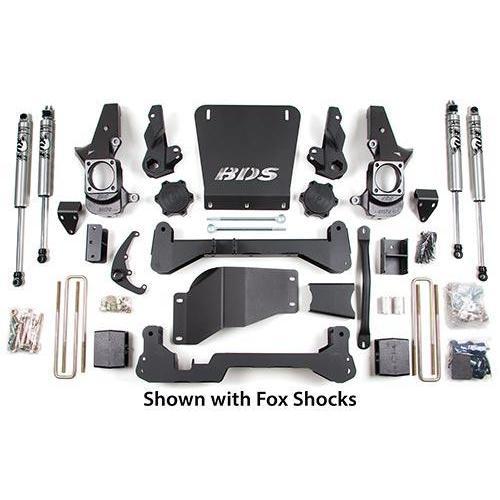

• Although this is pictured with Fox Shocks, this kit will come equipped with BDS Shocks. If you would like fox shocks, please reach out.

Installation

• Click Here For Installation Instructions
• Difficulty: 4 (where 1 = easiest and 5 = complicated)
