Description
Fits
Year |
Make |
Model |
Type |
2001-2010 |
Chevy / GMC |
1 Ton Truck 4WD |
4WD
|
2001-2010 |
Chevy / GMC |
3/4 Ton Truck 4WD |
4WD |

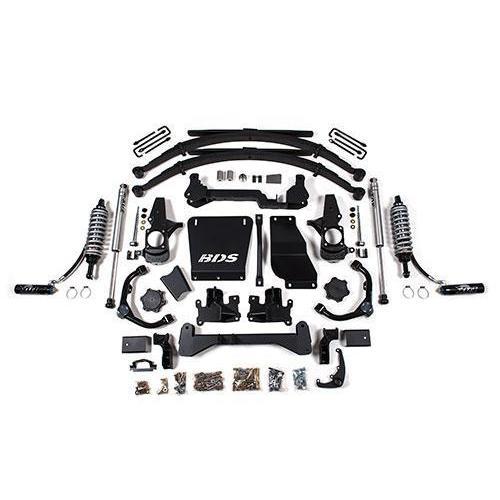

If you've got an HD Duramax truck it's possible it could use some new suspension! Why not lift it while you're in there with this BDS 6.5" Coilover conversion system. This system eliminates your torsion bars and gives you a much more adjustable alternative. This system builds on the BDS high clearance system design offering more ground clearance, corrects suspension, steer, driveline geometry, and pairs it with the race-proven pedigree of Fox 2.5 factory series Coilovers to soak up the harshest terrain while still offering comfort and control for your daily commute.
Part Number: BDS738FDSC
Features
- FOX 2.5 Series Remote Reservoir Coilovers
- Fox 2.0 Series Shocks
- 5" Rear Block Kit
- Longer Sway Bar Links
- 1.5" OD x .120-wall tubing, fully welded, and gusseted Upper Control Arms
- CNC machined ductile iron steering knuckles
- Torsion Bar Delete
- High Clearance Crossmembers
- Multi Differentialrelocation brackets for correct CV angles
Tire & Wheel Combinations:
- 35" x 12.50" w/16 x 8 and 4-1/2" back spacing
- 35" x 12.50" w/17 or 18 x 9 and 5.5" back spacing
- 37" x 12.50" w/20 x 9 and 5.75" back spacing
Notes
- Torsion Bar Tool required to load/unload the torsion bars
- Some welding required
- Requires frame bracket modification and differential mount modification
- Traction bars will not fit standard cab/short box models and are designed to work on vehicles with 4" to 8" of lift
- 20" wheels with 5" to 5.75" backspacing recommended to reduce trimming
- Not Recommended for Suburban / Yukon models with AutoTrac Transfer Case
- Does NOT work with rear Autoride equipped SUV's
- Fits Diesel Models Only
