2001-2006 Duramax PPE Forged XR Tie Rods (158032500)

Name: 2001-2006 Duramax PPE Forged XR Tie Rods (158032500)
Brand: PPE
SKU: 158032500
Price: 357.83 CAD
Availability: InStock

(14)

PPE Part Number: 158032500

$357.83 CAD

Purchase to earn 357 Dirty Dollars Learn More

This product ships for free to most Canadian locations! Learn more

Truck Fitment

Description

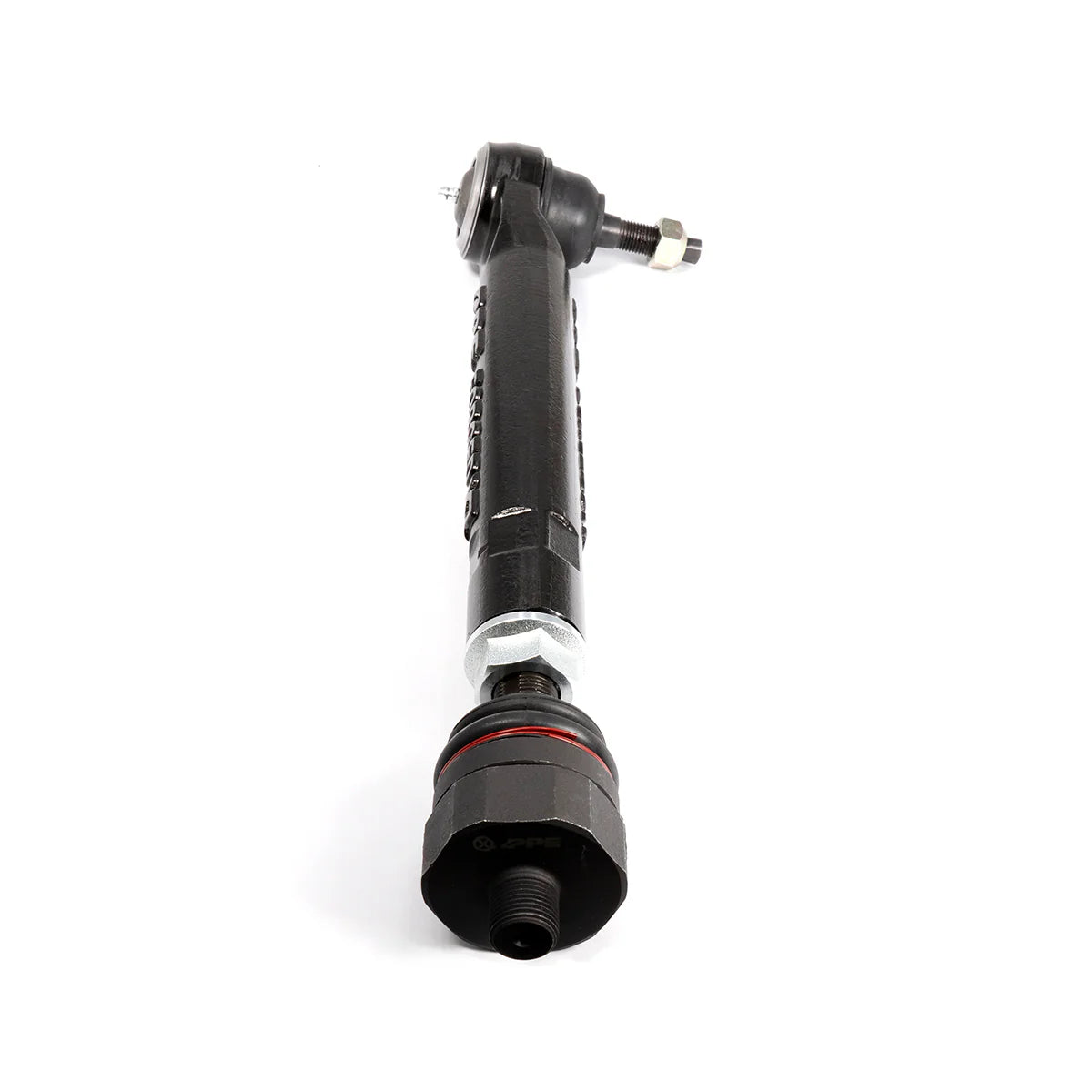

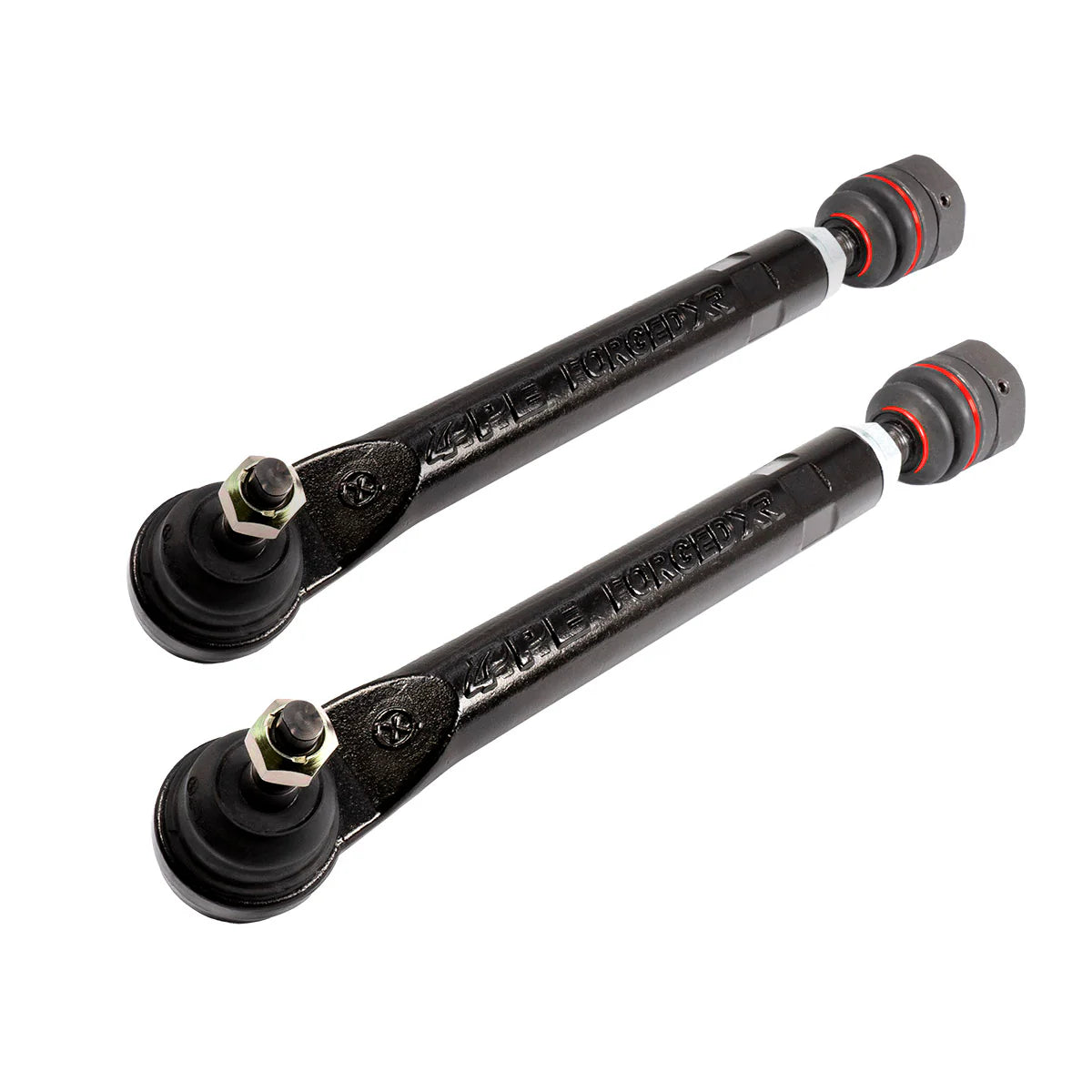

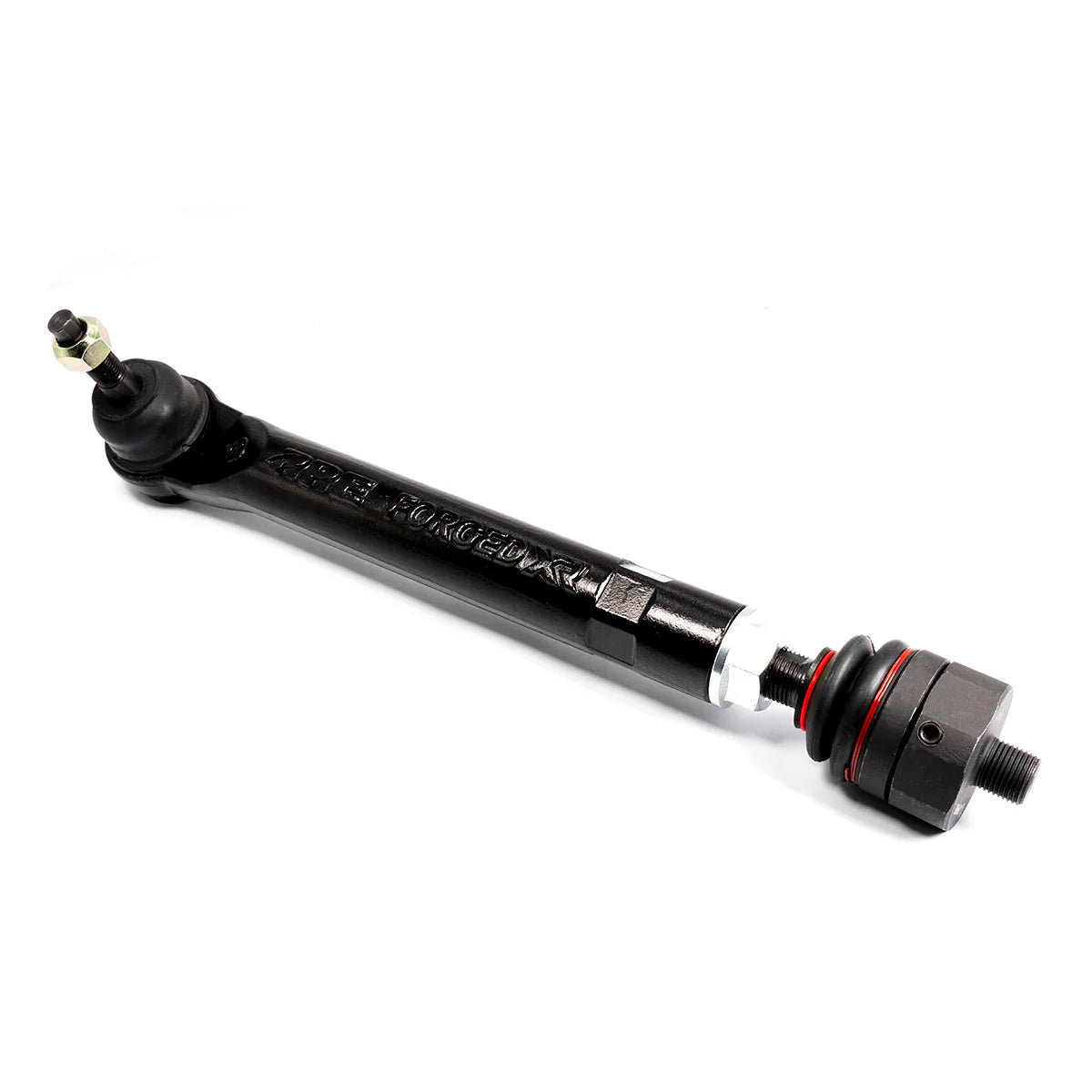

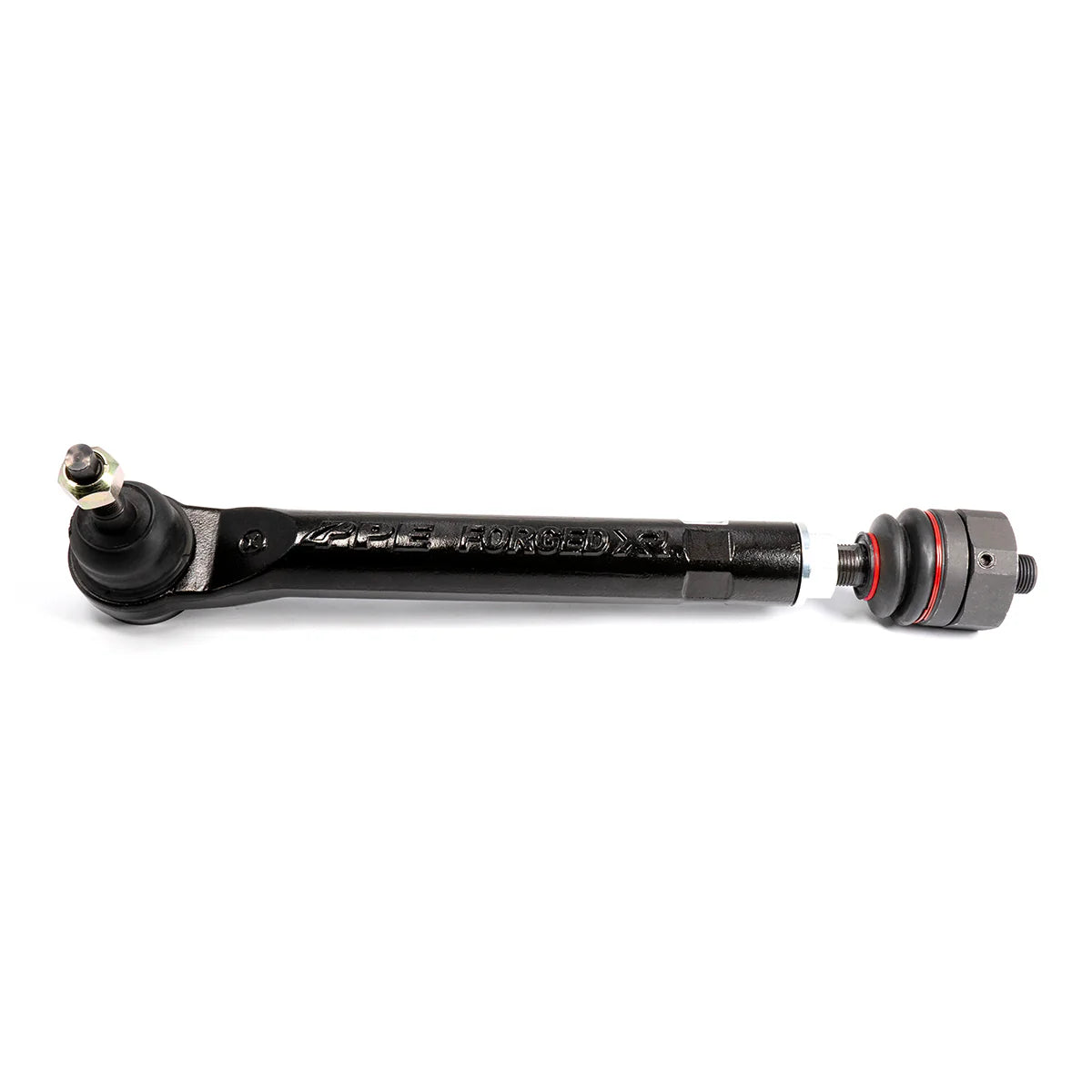

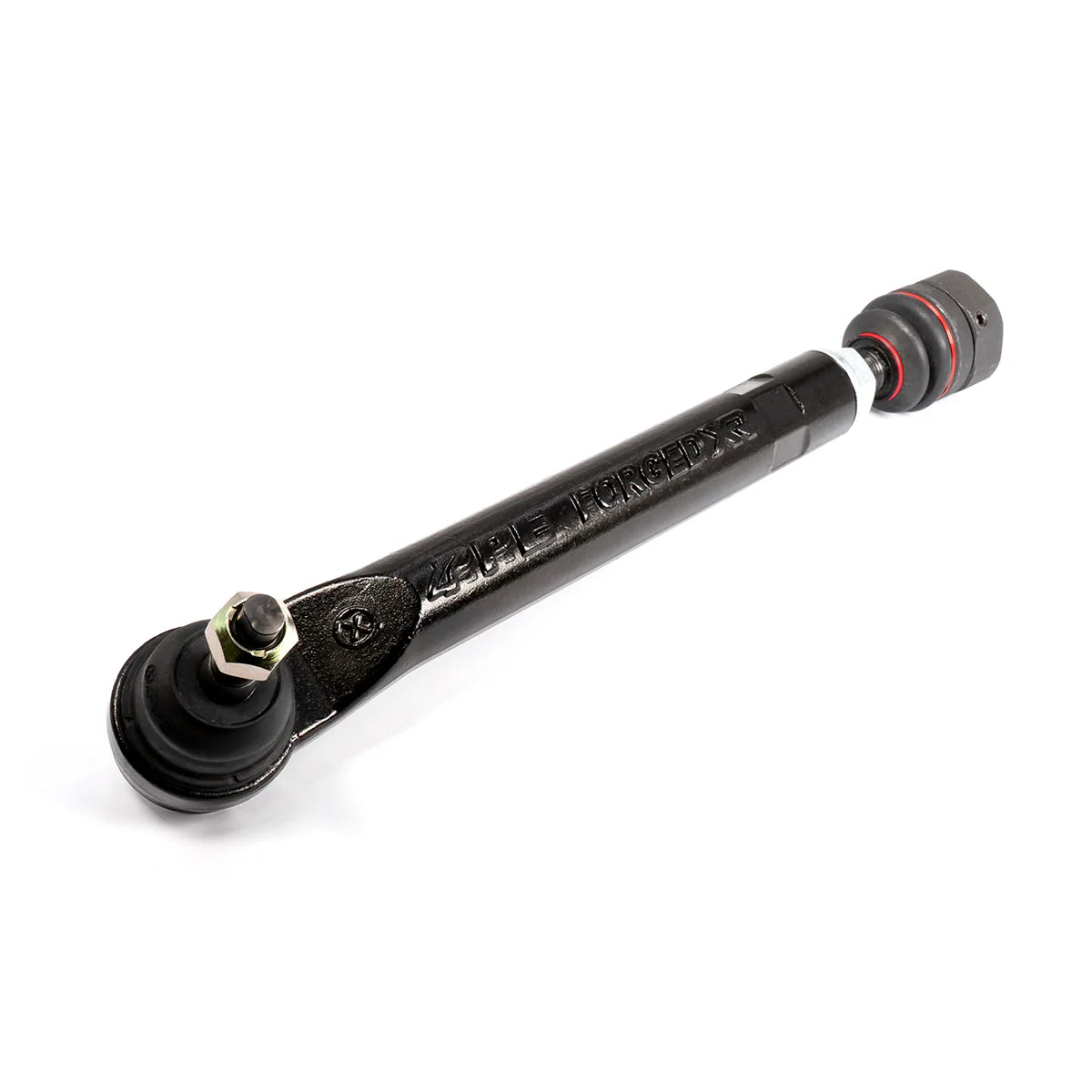

The PPE Forged XR Tie Rods are the ultimate upgrade for extreme-duty tasks like intense off-roading and sled pulling, while also serving as the perfect high-performance replacement for worn-out stock units. Featuring massive 32mm ball studs and a 1.6-inch forged outer body, these assemblies are engineered to eliminate the bending and deforming common with factory components under stress.

Part Number: 158032500

Superseded Part Number: 158031500

Features

Extreme-duty forged steel construction
1.6-inch forged outer tie rod body (50% larger than stock)
32mm ball stud (35% larger than stock)
3/4-inch inner tie rod threaded shaft
Siliconized rubber boots for maximum durability
Integrated grease fittings for easy maintenance
Preserves factory articulation angles
Sold as a pair

Includes

2 x Forged XR Tie Rod Assemblies
Integrated Zerk Grease Fittings
Required Mounting Hardware

Notes

Each tie rod comes pre-greased and does not require greasing for initial installation.
The outer tie rod can be trimmed by up to 1 inch to accommodate customized steering setups or relocated aftermarket perches.

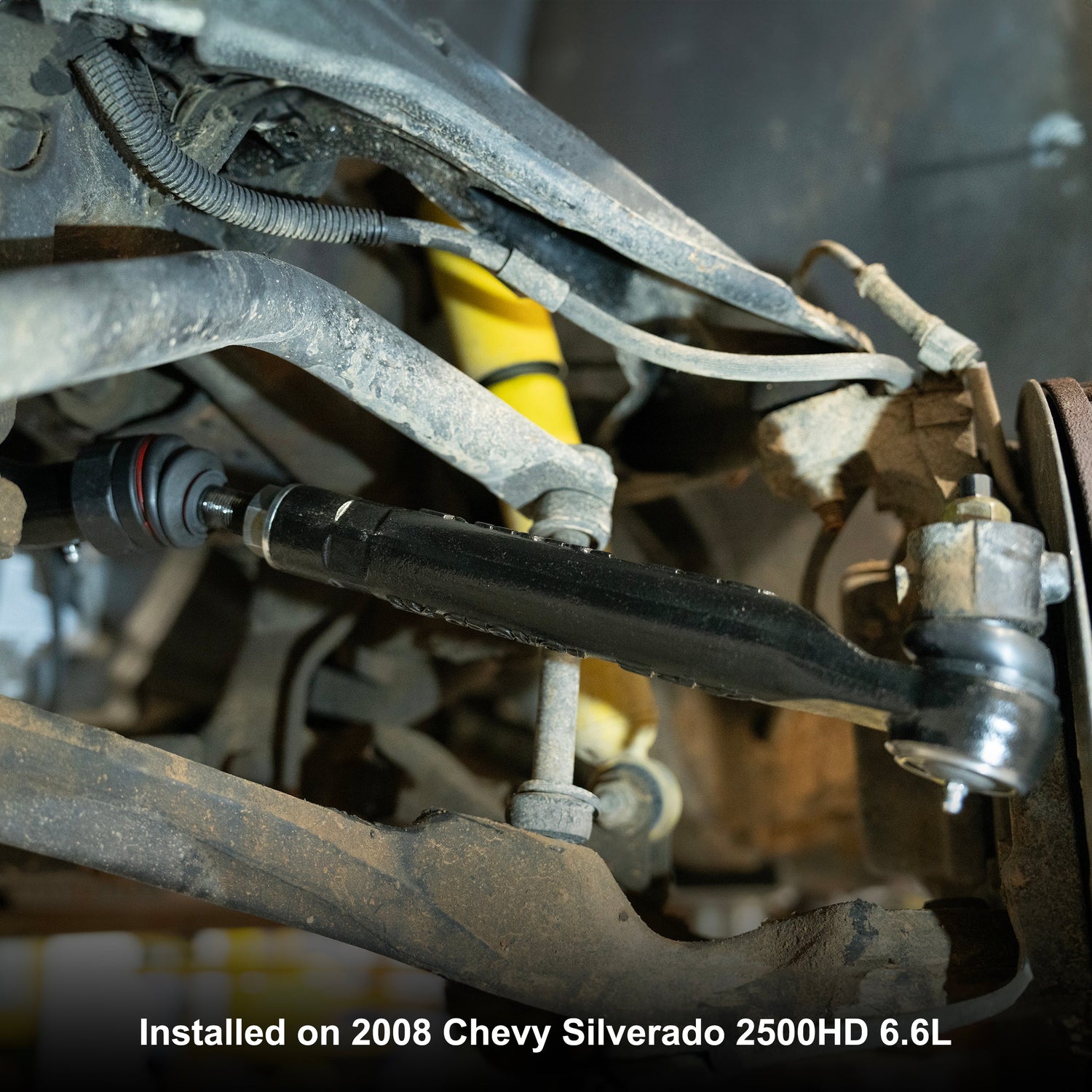

Compatible with both 6.6L Duramax diesel and 8.1L V8 gas engine applications.

Questions and Answers

Don't see your question? Ask us anything about this product.

do these have warranty?

Yes, they come with a limited lifetime warranty against manufacturer defects, premature wear, or breakage.
Are these sold as a pair or each? Thank you in advance.

These are sold as a pair.
Hey what's the warranty on these mine are done.

PPE has a limited lifetime warranty on tie rods.
Lifetime warranty?

These come with a limited lifetime warranty against manufacturer defects, premature wear, or breakage.
When running these oversize tie rods (or others like the BD, Kryptonite, etc.) on the truck, is it necessary to get aftermarket sway bar end links for extra clearance around the tie rods? I've seen this mentioned some places but I'm not sure.

It's not always required, unless you're noticing clearance issues (trucks with leveling kits or lifts, if you've got wider tires with aggressive offsets). That said aftermarket sway bar end links can help prevent interference, and if you're tight for clearance or want max articulation, they're a smart upgrade!
Will the PPE tie rods fit with the kryptonite center link?

Yes!
