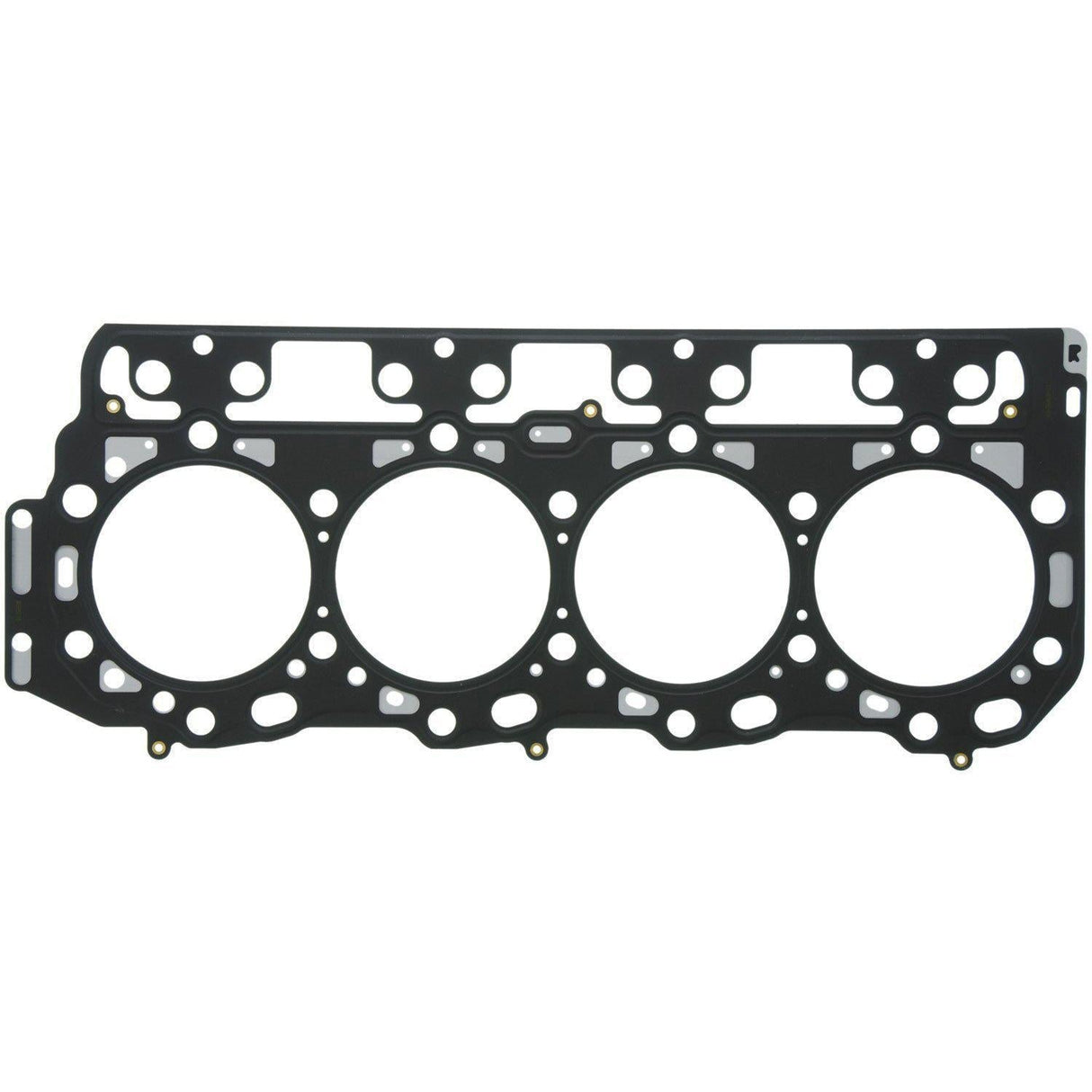

2001-2016 Duramax Wave-Stopper Grade C Driver Side Head Gasket (54585)

Fits

Ensure a professional-grade seal on your engine overhaul with the Mahle Original® Wave-Stopper Cylinder Head Gasket. Engineered for the 2001–2016 Duramax 6.6L, this Grade C (1.05mm thickness) gasket utilizes advanced Multi-Layered Steel (MLS) construction and "Combustion Load Limiter" technology. This specialized design allows the gasket to dynamically acclimate to the extreme thermal loads and cylinder pressures found in high-output diesel engines. As a premium direct-fit replacement, it provides a durable, leak-free seal for standard bore cylinders on the left-hand (driver) side of your engine block.

Part Number: 54585 (5458X Series)

• Wave-Stopper Technology: Integrated combustion load limiter adapts to fluctuating pressures for a superior high-pressure seal.
• Multi-Layered Steel (MLS): Fabricated from high-grade stainless steel layers for ultimate thermal and mechanical durability.
• Grade C Thickness: Precision-measured at 1.05mm, the standard thickness for the majority of service and repair applications.
• Direct-Fit Replacement: Rigorously quality tested to meet or exceed original factory specifications for perfect alignment.
• Left-Side Specific: Specifically designed and ported for the driver side (LH) bank of the 6.6L Duramax engine.

• (1) Mahle Grade C Driver Side MLS Head Gasket

• Bore Size: Intended for use with standard bore cylinders only.
• Fasteners: Cylinder head bolts are not included; upgrading to high-strength head studs is highly recommended during installation.
• Selection: Verify your required gasket grade (A, B, or C) by measuring piston protrusion before final assembly.
