Description
Important: This kit is strictly to upgrade to Coilovers specific to the lift height you currently have in your truck.
Fits
| Year |
Make |
Model |
Lift |
Location |
| 2001-2010 |
Chevy / GMC |
1 Ton Truck 2WD |
6.5" |
Front |
| 2001-2010 |
Chevy / GMC |
1 Ton Truck 4WD |
6.5" |
Front |
| 2001-2010 |
Chevy / GMC |
3/4 Ton Truck 2WD |
6.5" |
Front |
| 2001-2010 |
Chevy / GMC |
3/4 Ton Truck 4WD |
6.5" |
Front |
Coilovers arent just to lower your vehicle! If you're serious about performance then BDS offers this conversion kit for your GMC/ Chevrolet. With high-quality parts, this kit will improve handling at high speeds and overall ride quality. FOX 2.5 Coilovers w/ Remote DSC Adjustment BDS UCAs to Improve Travel BDS Fully Boxed and Gusseted LCAs Next Level Performance On & Offroad Compatible with existing 4.5" & 6.5" BDS Lifts Easy Installation.
Part Number: BDS741FDSC
Features
- 6.5" Lift
- Fully TIG welded Components
- Ball joint cups are repositioned for optimal performance allowing a 30% improvement in wheel travel
- Moog brand ball joints & factory style rubber bushings for smooth, quiet operation and superior durability
- FOX's DSC (dual speed compression)
- 6061-T6 Billet Aluminum mounts
- 12 adjustment points for high-speed compression
- 10 adjustment points for low-speed compression
- Allows you to adjust on trails
- Replaces the factory torsion bars, the upper and lower control arms are upgraded to improved strength, travel, and accommodate the new coilovers.
- Superior dampening for the harshest terrains
- Performance UCAs for increased strength and travel
- Bolt-on design requires no welding
- Compatible with BDS high clearance kits
- Eliminates rough riding torsion bars

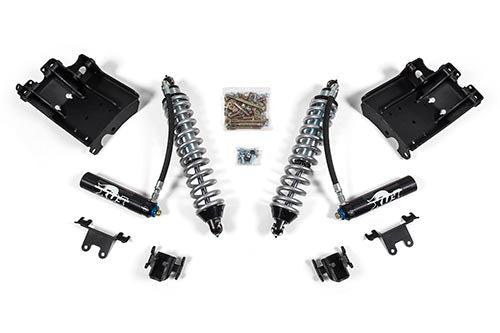

Includes:
- FOX Coil Springs
- One Coilover Conversion Upper Mount - Drivers & Passenger Side
- One Weld-In Support Guesset - Driver & Passenger Side
- One Coilover Conversion Resivoir Mount - Driver & Passenger Side
- Two Sway Bar Links
- Two Moog Ball Joints
- Two Rear Bump Stop Extension
- Two Front Bump Stop Extension
- One Front & Rear Lower Bushing
- ....And More - (See Installation Instructions for full list)
Tire Fitment:
- 6.5” Kit: 37 x 12.50 on 17” x 9” w/ 4-1/2 to 4-5/8” Backspacing
- 37 x 12.50 on 18” x 9” w/ 4-1/2 to 4-5/8” Backspacing
- 37 x 12.50 on 20” x 9” w/ 5 to 5.5” Backspacing
- Larger than 20”, use 20” wheel specs
Warranty
- Supplemental Drivetrain Limited Protection - 5 Year/60,000 Miles on Ford, Nissan, & Toyota vehicles and 5 Year/100,000 Miles on Dodge/Ram, GMC, & Jeep vehicles.
- Free, no cost protection for BDS customers
- Could save thousands of dollars on possible repairs
- An easy online registration process
- Available for most late-model vehicles
Notes
- For use with 6.5" high clearance lift kits only.
- Not approved for use with other brand lift kits or as a stand-alone upgrade.
- This System cannot be set lower than 6.5" as it will cause alignment issues.
- Stock 20” x 8.5” wheels are not recommended, however, they can be reinstalled if necessary. Stock 17” and 18” wheels will not fit back on the vehicle once this suspension system is installed.
- Torsion bar tool required to unload torsion bars
- Requires frame bracket modification
- Coilovers are preset for diesel, gas models will require preload adjustment (use #129600 spanner wrench)
- Gas models will require exhaust modification
