2001-2010 Duramax 3" Adventure Series Lift (ZONC31N)

Zone Part Number: ZONC31N
$1,350.79 CAD

Purchase to earn 1350 Dirty Dollars Learn More


Description

Fits

 Year Make Model Engine
2001-2010 GM
2500/3500 HD LB7, LBZ 6.6L Duramax

Note: will not fit Dually

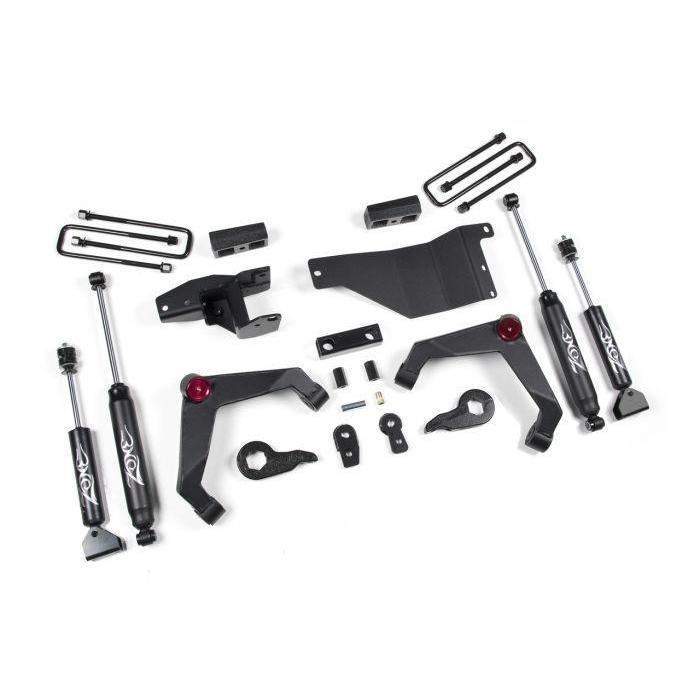

3” Adventure Series Lift System.


This ZONC31N is a new addition to the Adventure Series lineup of lift systems and is built around the Zone Offroad heavy-duty replacement upper control arms already available for the 01-10 HD trucks.  The arms are made from 3/16” steel that is precision laser cut, formed, and fully welded.  Preinstalled Raybestos brand ball joints and rubber bushings provide easy installation and long service life.

The ball joint is repositioned to compensate for the added lift and maintain a neutral position at ride height.  To complement the improved upper ball joint angles, the kit address the other area often ignored at this lift height – the CV shafts.

Features

  • Differential drop system that relocates the differential down 2” for near stock angles at the 3” lift height
  • Drop spacer on the passenger’s side
  • (2) drop brackets for the front driver’s mount
  • Integrated “half cross member” for the driver’s rear mount
  • New different skid plate
  •  2” rear lift by block & u-bolts
  •  Front and rear shocks are included and can be upgraded to Nitro versions.

RPO Number: FT2, FT3, FT4, FT5, FT6 or FT7



Notes

  • Please note that a Frame Bracket Mount modification and a Torsion Bar unloading/loading tool are required when installing this kit.
  • RPO codes are located in the glove box – match one of the following in order to determine kit
  • RPO code must be verified to order the correct kit – this covers the factory torsion key differences.

Fitment

  • 33x12.50 on 17x9 w/ 5" Backspacing. Minor Trimming may be required depending on the model of truck.

Questions and Answers

Previously asked questions

We've compiled a list of questions and answers below.

Don't see your question? Ask us anything about this product.

Ask a Question
  • Are there any other parts required for this install?

    This is a complete kit and doesn't require anything extra.  The only thing you will need to do after is a wheel alignment.

  • Can I fit 35” tires with this kit?

    33x12.50 on 17x9 w5" backspacing minor triming may be required depending on the model of the truck

  • Will this kit work with a kryptonite steering setup, from what i read the upper control arms cause an issue?

    This should be fine to run with any Kryptonite Parts

  • will this level my truck out flat and still lift it 3 inch?

    Yes!

  • Does this kit require cutting the frame?

    Yes.

  • Do these control arms utilize a factory style upper balljoint?

    This kit comes with the ball joint on the control arm.

  • Can’t really tell in the picture but does it come with new torsion key bolts as well?

    New torsion keys are included, but torsion bolts are reused from your stock setup.
