2001-2006 Tundra Alpha HD Pro S Air Suspension Kit (HP10126-J-S)

Fits

 Note: Trucks in which the upper jounce bumper pad protrudes 1" below the frame require HP10158. All Toyota Kits require a minimum of 5'' between the tire and the frame and will only fit with stock wheels and tires.

The 2001-2006 Toyota Alpha HD Pro S Air Suspension Kit addresses truck sag, sway, and bottoming out. It includes durable airbags with corrosion-resistant end caps and 20 support wires for strength. An internal polyurethane bumper prevents damage from bottoming out. This kit offers reliable ride comfort and the option to run without air when not towing.

Part Number: HP10126-J-S

• 5,000 lbs of load leveling capacity
• 2.5-hour install time
• Lifetime warranty
• Can be run at 0 psi

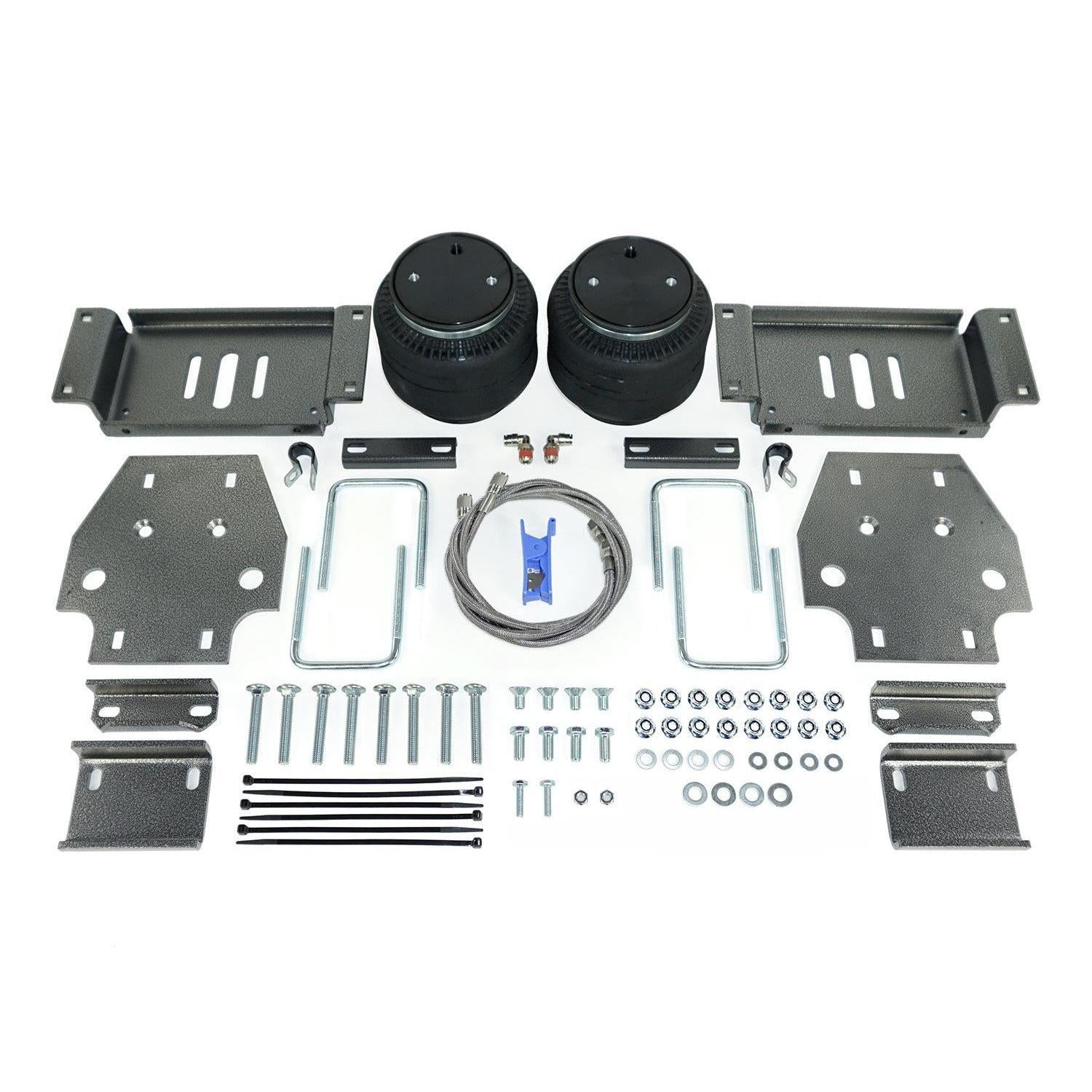

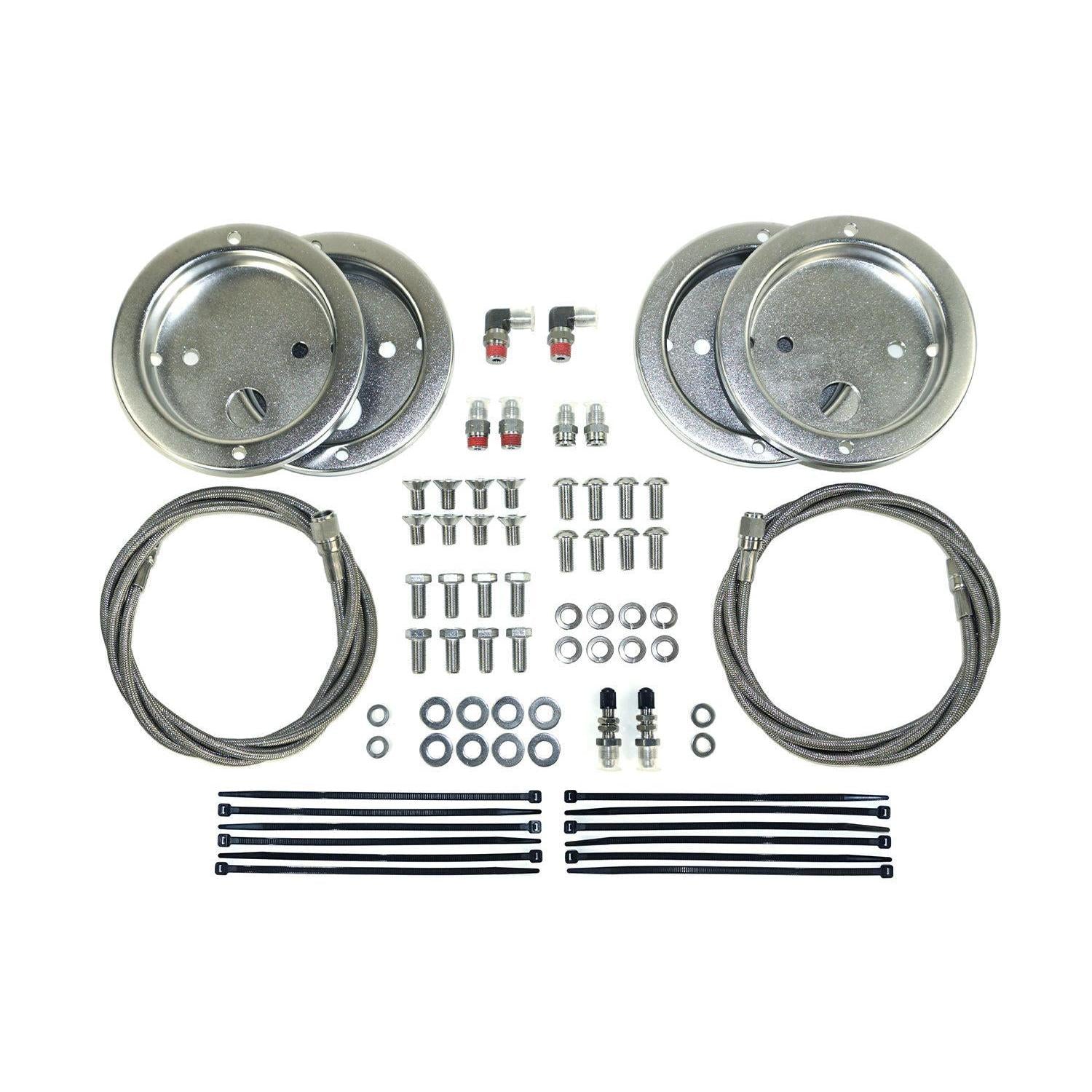

Includes:

• 6ft Braided Stainless Steel Air Lines
• Stainless Steel Air Spring Fittings
• Stainless Steel Air Spring Mounting Hardware
• Stainless Steel Schrader Valves
• Stainless Steel Roll Plates
• Two Air Springs
• Everything required for install

• Click Here
• Click Here - Stainless Steel Hardware
• Application Guide

• Never exceed manufacturer's recommended Gross Vehicle Weight Rating.

Why Pacbrake added a bump stop to their bags?

Peace of mind. Customers want a bump stop to prevent bottoming out from loss of air bag pressure, an extremely rare event that could damage the air bags or potentially the frame of the truck. Think of it as an "insurance policy" against bottoming out.

An additional benefit is that you can run these airbags at 0 psi when unloaded for superior ride comfort.

Are bump stops necessary?

No! For those that require max travel in their air bags, to raise and lower their rear end to pickup trailers or boats, or for those that take their trucks off roading, air bags without bump stops are recommended. Consider the HP10126 ALPHA HD air bag.

Parts Only

• Click Here
