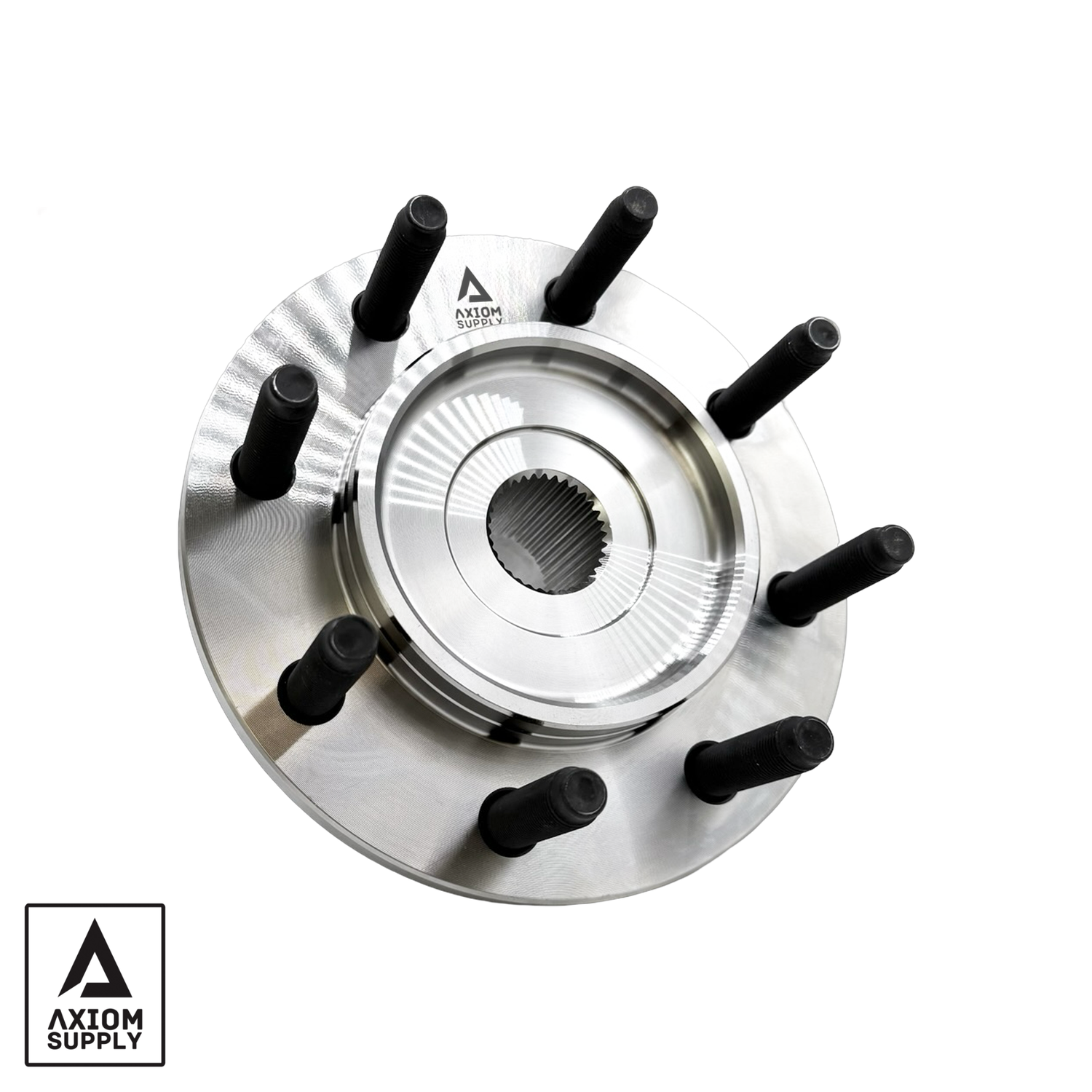

2000-2002 Cummins Wheel Bearing Assembly (AX515063)

The Axiom Supply wheel bearing assembly is a complete bolt-in hub unit for 2000-2002 2nd-gen 24V Cummins 2500 and 3500 4WD trucks. A proprietary bearing and hub structure reduces hub-face deflection under load for tighter steering, improved braking stability, and added durability when towing, running oversized tires, or a lifted setup. Each unit fits both left and right spindles and installs in roughly two hours with no modifications.

• Precision tapered roller bearings packed with high-performance grease for smooth, maintenance-free operation
• Grade 10.9 cold-formed, zinc-plated studs for high tensile strength and corrosion resistance
• Durable ABS sensor built to hold an accurate signal in heat, mud, and moisture
• Versatile rolled inner spindle compatible with both 2WD and 4WD systems
• Configuration: 8x6.5 (8x165.1) 9/16"-18 lug studs

(1) Wheel bearing & hub assembly with integrated ABS wire

• Axle nut: 180 lb-ft
• Spindle bolts: 122 lb-ft
• Caliper bracket bolts: 250 lb-ft
• Lug nut: 130 lb-ft

Mopar 5016458AA / AB / AC, Moog 515063, Timken HA590203, SKF BR930203, National 515063, Mevotech H515063, Centric 402.67011, Dorman 951-834, FAG 102190, Axiom AX515063

Axiom No-Nonsense Lifetime Warranty: Axiom steering and suspension components are warrantied for life to the original purchaser against any manufacturer defects, premature wear, or breakage. Race it, jump it, off-road it, lift it—if you can break it, we will replace it. Axiom products must be purchased from an authorized dealer.
