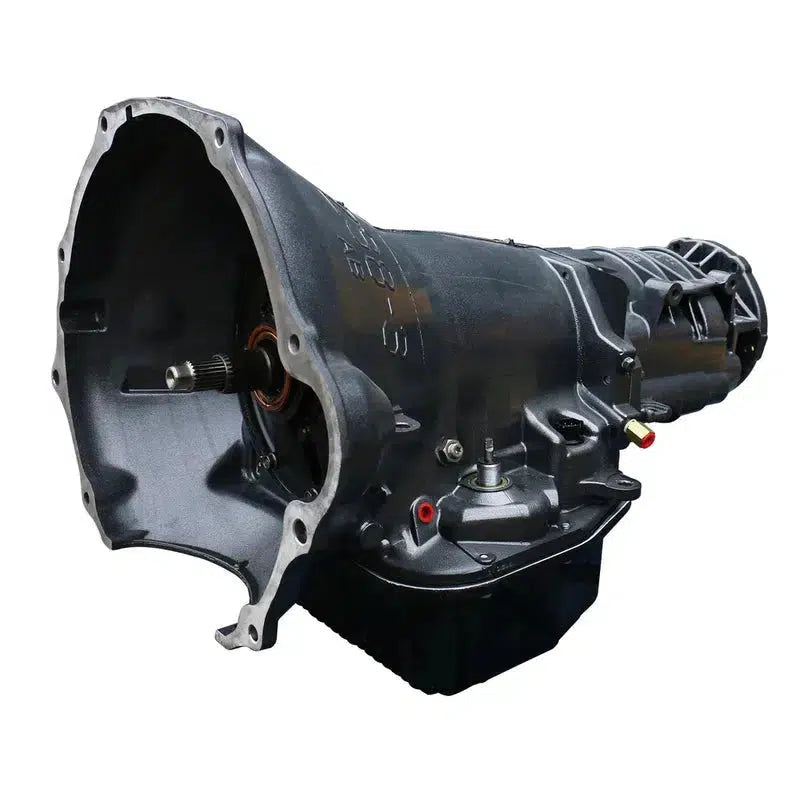

2000-2002 Cummins 47RE Torquemaster Transmission W/ Auxiliary Filter & Billet Input (4WD) (1064184BF)

Fits

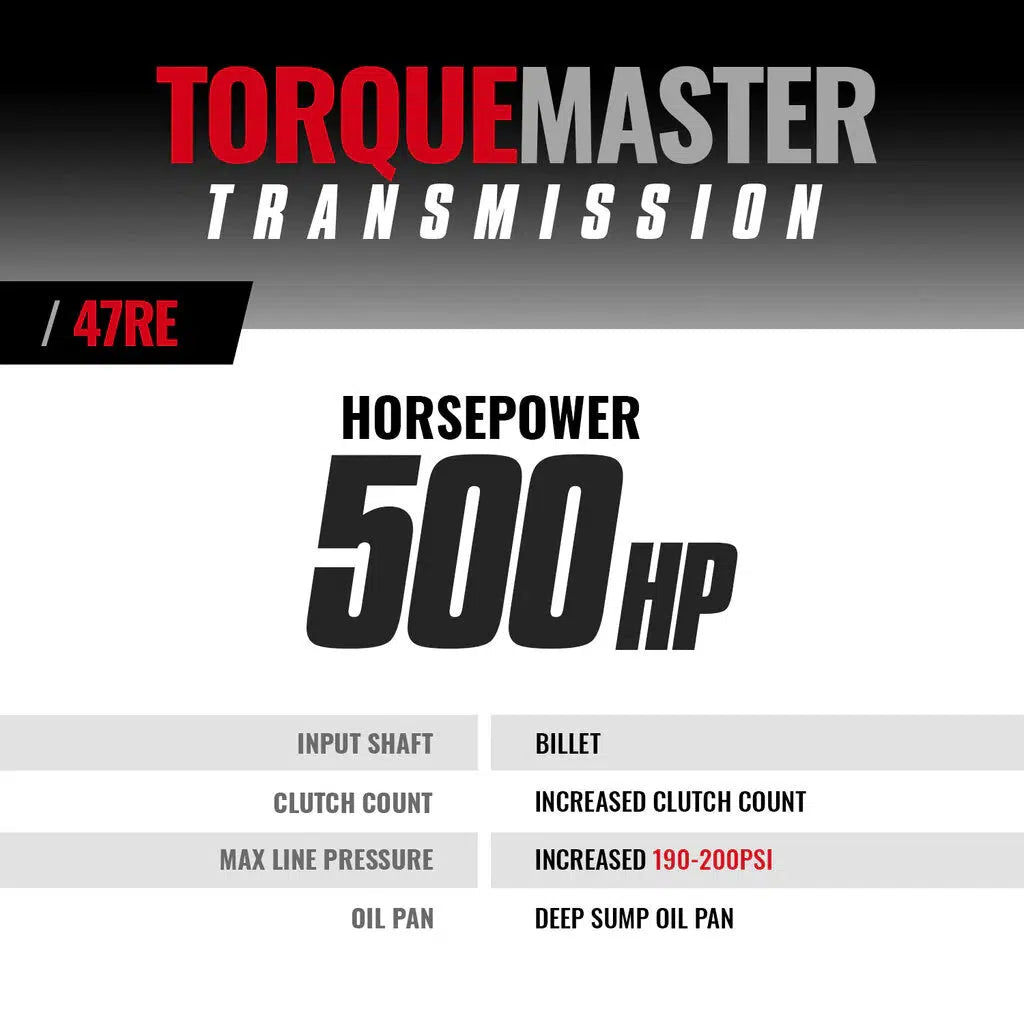

The original transmission can handle the engine's power, but not a whole lot beyond that. Upgrade to a BD transmission for increased durability. Comes with BD's heavy duty transmission pan and auxiliary filter kit for added protection. Features a Billet Input Shaft for high acceleration and torque, making it perfect for pairing with the ProForce 3 or Hi5 torque converter.

Part Number: 1064184BF

• Increase the durability of your drivetrain
• Stock thrust bushings replaced with roller Torrington bearings
• Every transmission is tested on a dyno
• Upgraded Valvebody
• Increased line pressure to 190-200psi
• No shuttle shifting problems
• Drilled intermediate shaft for increased lubrication
• Modified manual valve for lube in all positions
• Billet barrel strut
• Billet band lever
• Clutch Count: OD 6
• Clutch Count: OD DIRECT 10
• Clutch Count: FORWARD 5
• Clutch Count: DIRECT 6
• High temp/energy Raybestos band
• Upgraded governor pressure transducer (47RE/48RE)
• Upgraded governor solenoid - Twice the burst pressure than stock
• Upgraded 48RE sunshell
• Cooler line case saver in every transmission

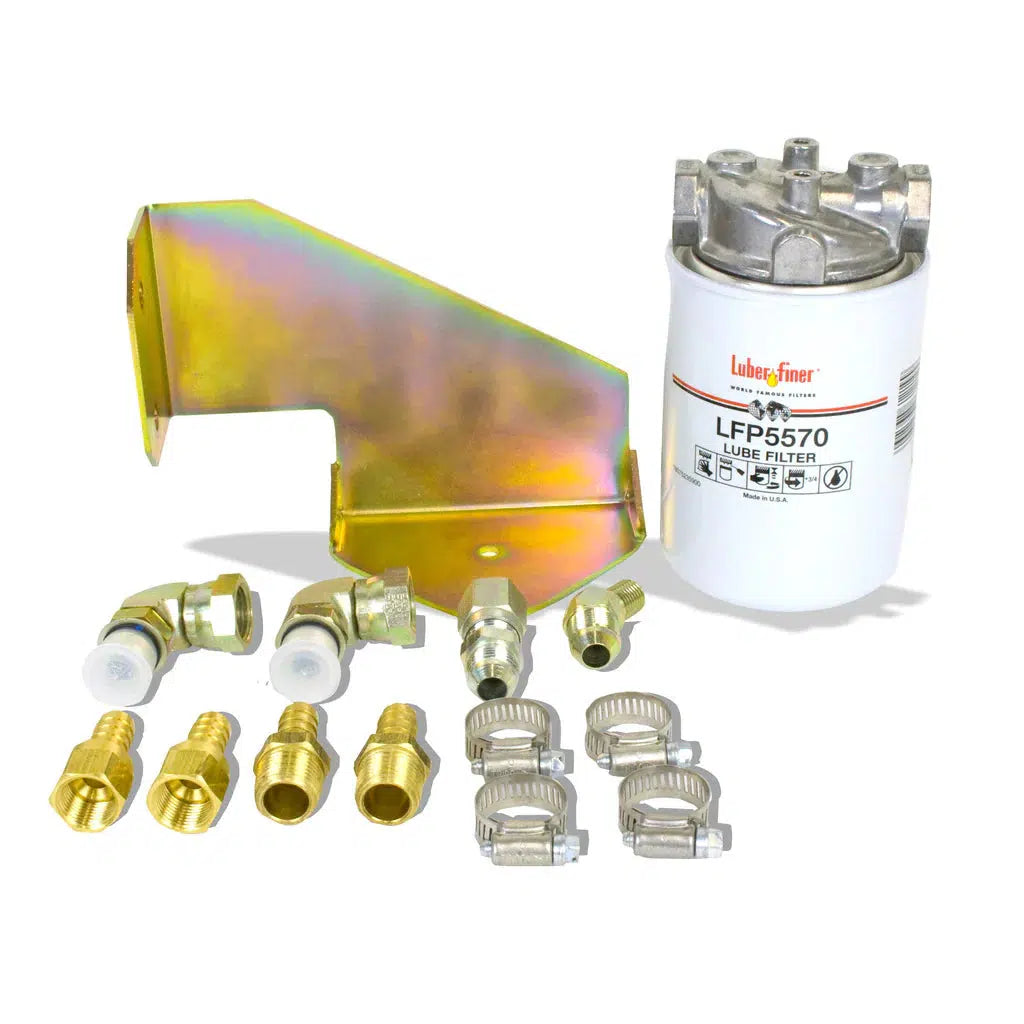

• BD auxiliary full flow filter kit for extra protection
• BD rigid aluminum heavy duty transmission pan
• Pan heat-dissipating fins keep temperature down
• Magnetic drain plug
• Pan adds 2qt extra oil capacity


• 9-Hours
• Transmission Filter Kit Click Here
• Install Click Here

Parts Only - No Race or Sled Pull use covered

• 36-Months
• 150,000 Miles
• BD torque converter must be installed at the time of installation of the transmission - use of a 3rd party or OE converter will invalidate the transmission warranty.
• Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.
