Description
Fits
| Year |
Make |
Model |
Type |
Lift |
Location |
| 1999-2016 |
Ford |
F250/F350 Super Duty |
Short Box |
0-6" |
Rear |
Important: The mounting kits DO NOT include the Recoil Traction Bar, they need to be purchased separately. (BDS123409)
BDS Suspension's revolutionary spring-loaded, full-floating RECOIL traction bar system is engineered to improve traction and limit axle wrap without limiting suspension travel or decreasing ride quality.
Part Number: BDS123408
Features
- The bars are fabricated from 2" OD x 3/16" wall steel tubing with a threaded bung welded in toward the axle
- CNC machined end at the frame
- Adjustable axle wrap control utilizing dual-stage resistance springs
- Full-floating traction bar design will not bind throughout the full range of wheel travel and/or hinder suspension articulation
- Spring preload can be adjusted on the vehicle without disassembling the traction bar
- Adjustments can be made for optimum performance over a wide range of uses/terrain.
-
(On-Road, Unloaded, Towing/Hauling, Off-Road, Competition pulling)
- Traction bar ends are greaseable and rebuildable
- Mounting brackets are bolt-on, only requiring minor drilling for frame mount installation.
- These traction bars can be used on stock height or lifted trucks and work with both lift blocks and replacement leaf spring kits
- 1-piece flex ball for up to 15-degrees of misalignment in either direction.
- Forged flex ends use a forged housing with a large 1-1/4'' -12 threaded shank
- Durometer-specific polyurethane bushing installed that free floats in the traction bar utilizing dual-stage internal compression springs
- UHMW polyurethane bearings.

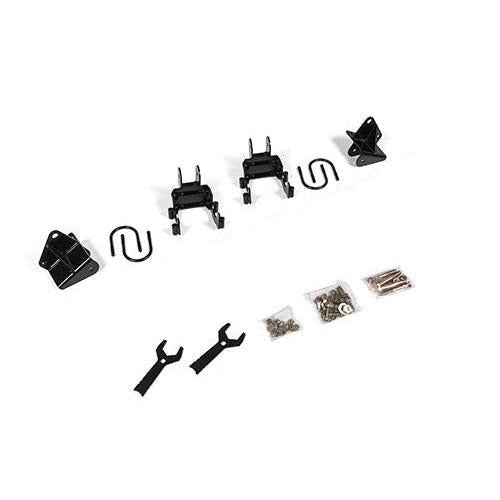

Includes:
- 0-6" of Lift
- One Frame Bracket - Driver & Passenger Side
- Two Axle Brackets
- Two Jam Nut Wrench
- Four 1/2" x 3-1/2" x 5-1/4" Round U-bolt
- One Bolt Pack (Frame Mounts)
- One Bolt Pack (Traction Bar Hardware)
- One Bolt Pack (Axle Mount)
- One Bag Kit
- ... And More (See Installation Instructions for full list)
Notes
- Fits Short Box Models Only Fits 0-6" of rear lift Will work with vehicles equipped with factory rear sway bar
- The shorter the distance the more loaded the springs are
- Bracket kits are vehicle specific
