1999-2006 GM 1500 6-Lug Wheel Bearing Assembly (AX515036)

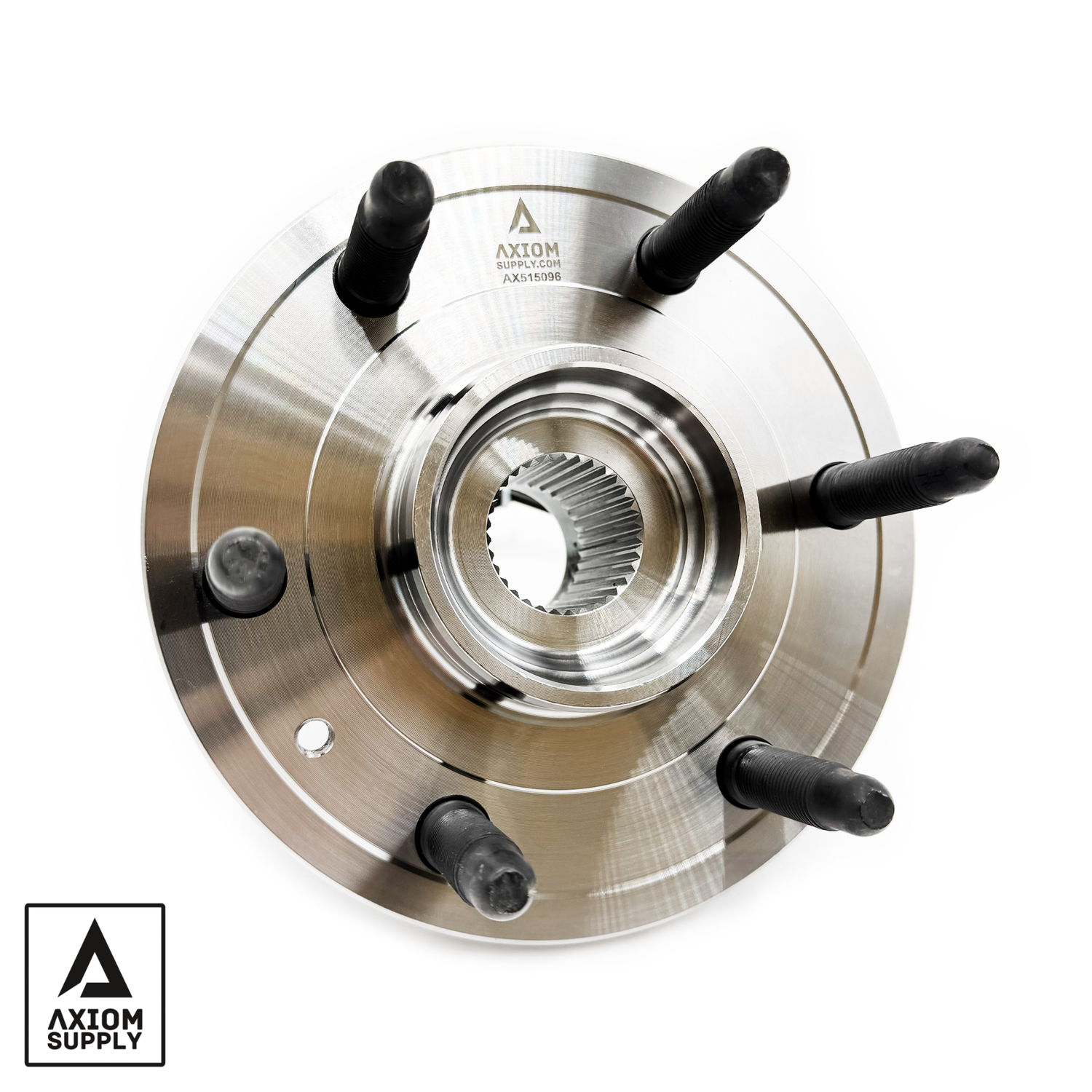

The GMT800 platform is famous for eating front hubs, and the symptoms are always the same: an ABS light that comes and goes, a growl that builds with speed, and a front end that never feels tight. This Axiom Supply wheel bearing and hub assembly is a complete bolt-in replacement for 6-lug GMT800 trucks, SUVs, and AWD vans, built with precision tapered roller bearings and a hub structure that resists deflection under load. It fits either the left or right front position, installs in about 2 hours, and interchanges with Timken SP500300, SKF BR930304, Kryptonite KR6300, and MOOG 515036, among others.

Part Number: AX515036

• Precision tapered roller bearings packed with high performance grease for maintenance-free operation
• Grade 10.9 cold-formed, zinc-plated wheel studs for tensile strength and corrosion protection
• Durable ABS sensor built to maintain accurate signal transmission through heat, mud, and moisture
• Configuration: 6x5.5" (6x139.7) bolt pattern with M14-1.50 lug studs
• Rolled inner spindle design accommodates both 2WD and 4WD systems
• Interchanges with Timken SP500300, SKF BR930304, Kryptonite KR6300, MOOG 515036, Duralast DL515036HD, and more
• Complete bolt-in unit, fits both left and right spindle positions
• Proprietary bearing and hub structure reduces hub-face deflection under load for tighter steering response and improved braking stability

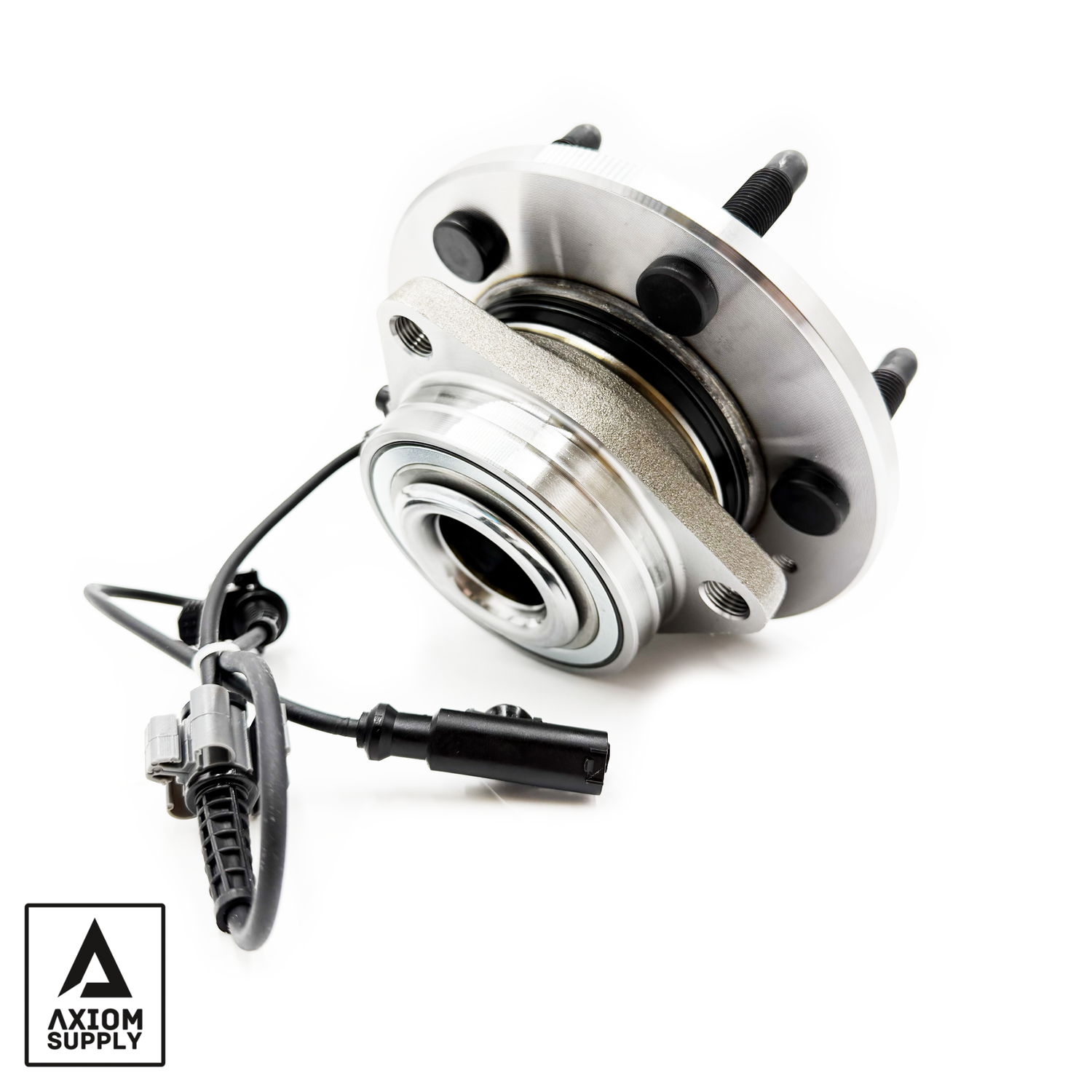

• 1 x Wheel Bearing & Hub Assembly with Integrated ABS Wire

• Fits 6-lug applications
• Torque specs: axle nut 177 lb-ft, spindle bolts 133 lb-ft, main caliper bolts 125 lb-ft
• Typical installation time is approximately 2 hours with no special modifications required
