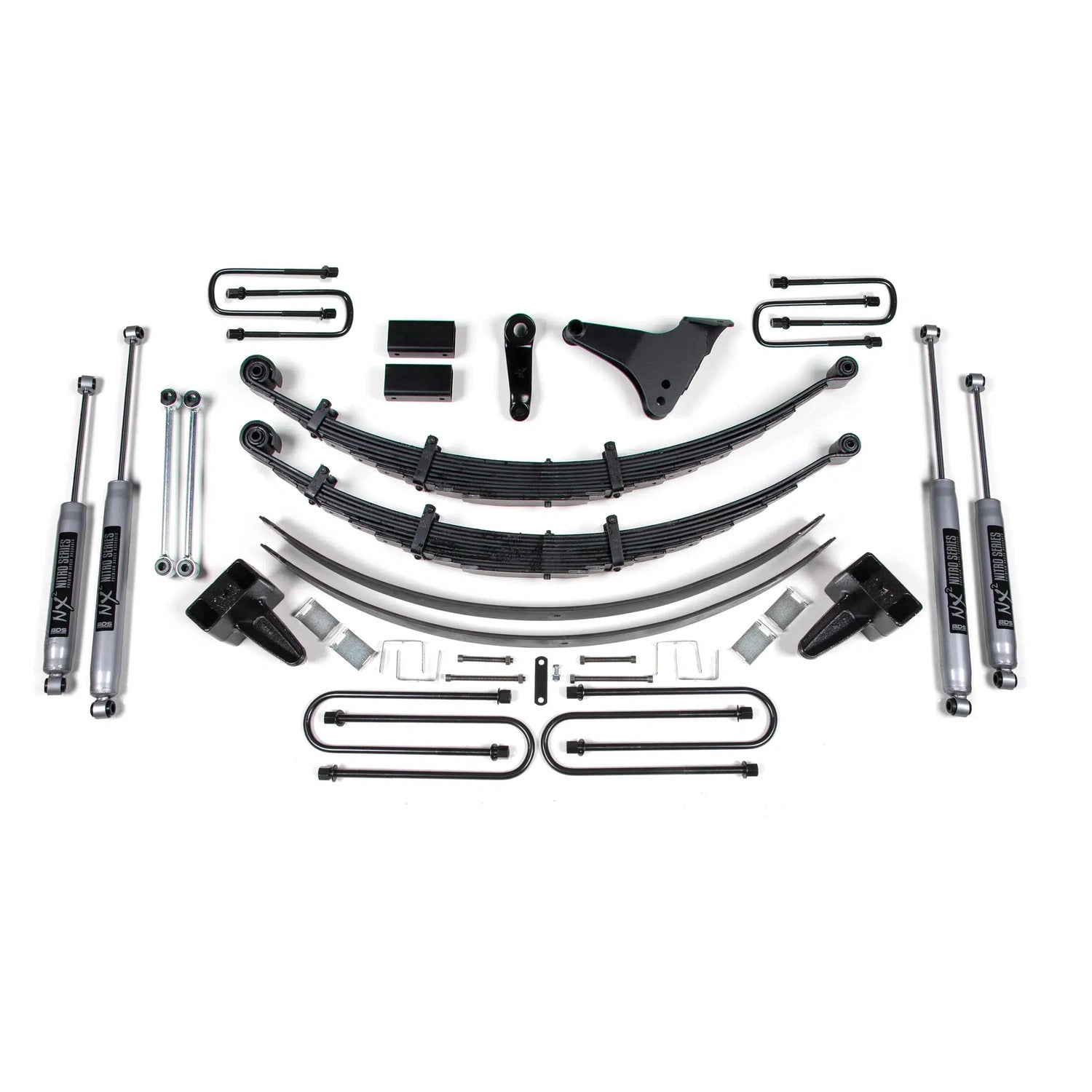

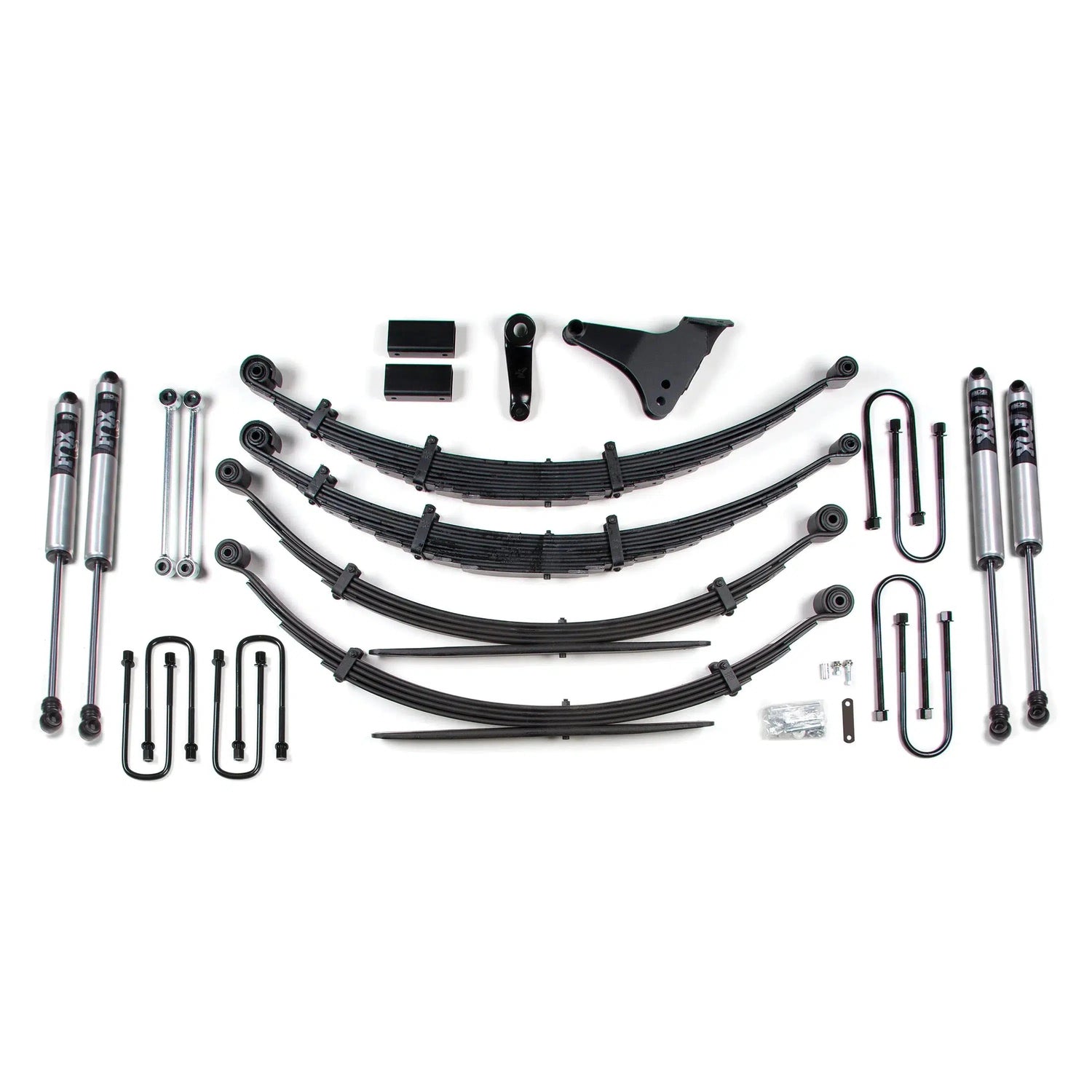

1999-2004 Powerstroke 6" Lift Kit (BDS323FS)

Fits

Click here to Customize this Kit

Take your Powerstrokes performance, capability, and stance to the next level with this modest, 6" Lift Kit from BDS, Glide-Ride leaf springs, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

Part Number: BDS323FS

• Easy, 100% Bolt-on installation
• Glideride leaf springs to provide full lift height and increased capacity
• Track bar relocation bracket and pitman arm maintains proper steering angles for improved handling
• Cast steel blocks provide level stance from front to rear
• NX2 Nitro shocks or Fox 2.0 performance series shocks


Tire Fitment:

• 36 x 12.5 with 16 x 10 and 4 in. Backspace

Rear Lift Option

Block Kit

• Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.
• Blocks made of steel for high strength
• Designed to provide correct pinion angles

Leaf Springs

• Eliminates any need for a lift block
• Reduces axle wrap and creates a more controlled and stable feel
• Multi-leaf progressive design for a smooth ride
• Maintains factory payload weight ratings

• These truck were manufactured with two different style front u-bolts. You will need to know if your front leaf spring u-bolts are square or are half way between round and square with a gentle radius around the OE cast u-bolt plate before ordering.
• Vehicles produced before 3/1/99 require a different box kit. You must check the production date on the door prior to ordering.
• The Superduty came from the factory with a 2", 3", or 4" rear block. If you wish to truly level your vehicle it may be necessary to change the rear OE block.
• Will not fit dually applications.
• If your vehicle is equipped with a carrier bearing, you will want the 123402 drop kit in the options section.
• The front driveshaft will need to be lengthened and/or clearance ground depending on how the vehicle is equipped.
