1999-2004 Powerstroke 4" Lift Kit (BDS314H)

BDS

Part Number: BDS314H-SQ-W/OFOS

Mfr Part Number:

Sale price$1,784.63 CAD

(show all inventory)
Available at alternate warehouse - contact for price
This is a special order item, please allow for additional processing time. If you would like an ETA, please reach out prior to placing your order.
Front U-Bolt Design:Square U-Bolts
Factory Overload Springs:Without Factory Overload Spring
Quantity:
This item may have additional freight costs. Learn more
Product images may differ from exact product.
Description

Click here to customize this Kit

Fits

Year Make Model
1999-2004 Ford F250/F350 Super Duty



Renew and improve your 7.3L Powerstroke using the BDS Suspension 4" Lift Kit to give your truck a new stance and height not achieved before! This kit comes with two front Glide-Ride Leaf Springs with bolt-style leaf alignment clamps, anti-friction pads, and tapered leafs for a smooth ride. There's always a risk of lifting your truck and ruining how it drives, this BDS kit is designed to retain the factory driving characteristics as best as you can while giving you the most aggressive stance!

Part Number: BDS314H

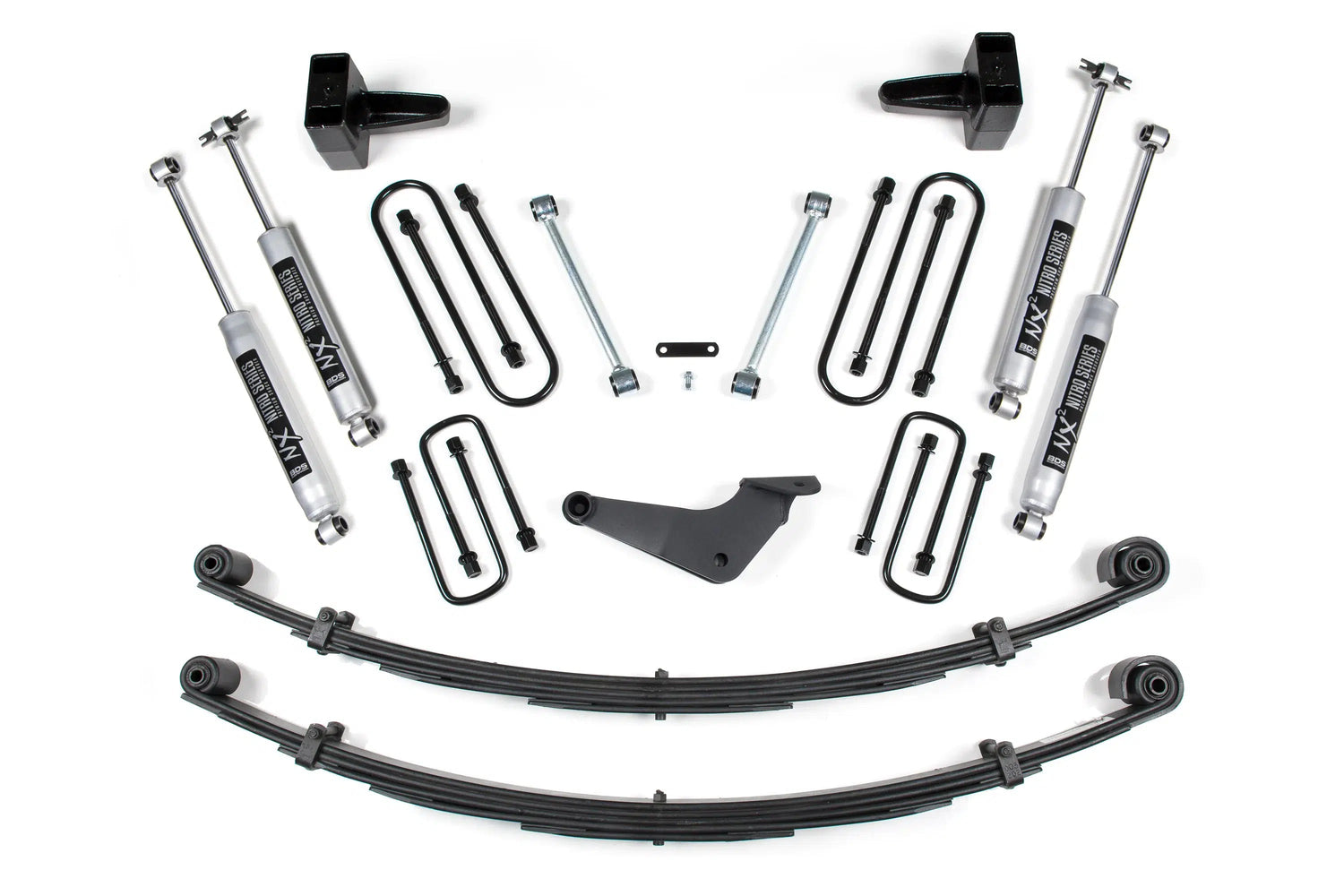

Features
  • 4" GlideRide Leaf Springs
  • 3" Rear Block & U-Bolt kit
  • NX2 Series Shocks
  • 35" Wheel fitment

Tire & Wheel Combinations:

  • 35" x 12.50" w/ 16 x 8 and 4"
Notes
  • These trucks were manufactured with two different style front u-bolts. You will need to know if your front leaf spring u-bolts are square or are halfway between round and square with a gentle radius around the OE cast u-bolt plate before ordering.
  • Vehicles produced before 3/1/99 require a different box kit. You must check the production date on the door prior to ordering.
  • The Superduty came from the factory with a 2", 3", or 4" rear block. If you wish to truly level your vehicle it may be necessary to change the rear OE block.
  • Will not fit dually applications.
  • These trucks were produced both with and without a top-mounted overload spring. There is an extra leaf that mounts on top of the rear leaf pack. You will need to know how your truck is equipped before ordering.
  • If your vehicle is equipped with a carrier bearing, you will want the 123402 drop kit in the accessories section.

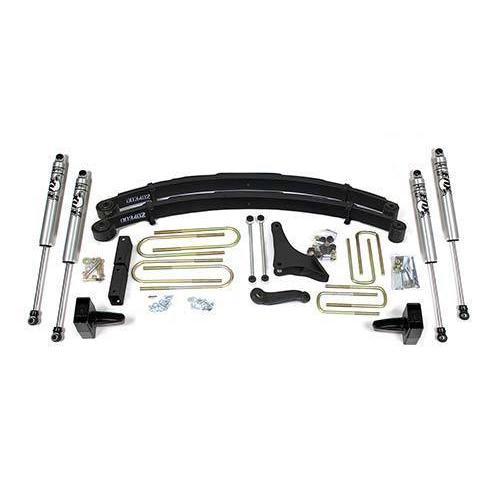

  • Although this is pictured with Fox Shocks, this kit will come equipped with BDS Series Shocks. If you would like fox shocks, please reach out.
Installation
Selecting Your U-Bolts
  • These trucks were manufactured with two different styles of front u-bolts. You will need to know if your front leaf spring u-bolts are square or are halfway between round and square with a gentle radius around the OE cast u-bolt plate before ordering.
  • Vehicles produced before 3/1/99 require a different box kit. You must check the production date on the door prior to ordering.
  • The Superduty came from the factory with a 2", 3", or 4" rear block. If you wish to truly level your vehicle it may be necessary to change the rear OE block.
  • Will not fit dually applications.
  • These trucks were produced both with and without a top-mounted overload spring. There is an extra leaf that mounts on top of the rear leaf pack. You will need to know how your truck is equipped before ordering.
