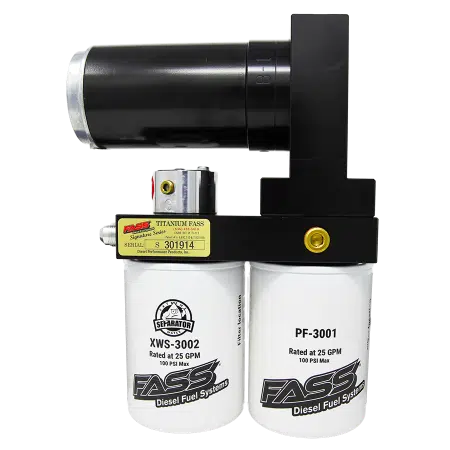

1998.5-2004 Cummins Titanium Signature Series 290GPH Lift Pump (TSD08290G)

Fits

Elevate the performance of your Cummins diesel engine using the highly rated and dependable FASS Diesel Fuel Systems Titanium Signature Series 290GPH Lift Pump. This pump is capable of supplying enough fuel for 1200-1500 HP large and multiple aggressive fueling upgrades commonly used during competitions. Experience enhanced protection with a filtration rating of 2 Microns, along with built-in water separation and FASS Diesel Fuel Systems patented air/vapor removal process. Aftermarket Systems are important for both daily drivers and high-performance applications when looking to improve either fuel economy or increase horsepower/torque. Enjoy these benefits and more, backed by a lifetime warranty.

This kit includes a 6061 T-6 Billet Aluminum Bulkhead & Suction Tube. Plum your return line directly to the new Bulkhead, skipping filler neck tweaks! The Bulkhead fitting functions as both a suction tube and return and features a 5/8” Suction Tube and suction fuel line along with a 1/2” Fuel Return Port. The PTFE Teflon pickup tube adjusts to varying fuel tank depths. Safe to operate up to 1/8 tank.

Part Number: TSD08290G

• New Whisper Technology
• New Bolt On Bracket Installation
• Preset 16-18 PSI Fuel Pressure
• 290 Gallons Per Hour Flow Rating
• Removes Water, Air and Debris From Diesel Fuel
• 2 Micron Filtration Rating
• Protects and Extends The Life Of Your Injectors
• Improved Cold Weather Starts
• Decreases Carbon Monoxide and Carbon Dioxide Emissions
• ½ Inch Fuel Lines and Ports
• Fuel Mileage Improvement
• Improved Fuel Volume Delivery
• Smoother Engine Idle
• Optional Electric Heater Ports
• Optional Fuel Pressure Gauge Port
• Limited Lifetime Warranty
• 1,000,000 Mile Motor
• 30,000 Mile Filter Life Expectancy
• Quietest Motor On The Market

• Installation of this kit on a cab and chassis may require modifications.

• FASS Whisper Technology (FWT) was engineered to meet the stringent demands of  today’s quiet diesel engines. FASS Whisper Technology was in development and testing for over two and a half years to meet FASS Fuel System’s high quality and durability standards. FASS Whisper Technology effectively and drastically reduces the sound levels of the Signature Series FASS Diesel Fuel System to a “whisper”while at the same time increasing fuel flow rates. Competition reduces noise levels by reducing flow rates.
• Performance Radius Cuts (PRC) are an advanced machining technique used to improve the flow of fuel through the FASS System by creating smooth flowing cuts within the aluminum housing.  This prevents the reintroduction of air and vapor back into the fuel and to prevent eddy currents from forming within the corner of a 90-degree sharp angle. FASS Titanium Signature Fuel Systems are the only Fuel Air Separation System that incorporates these exclusive Performance Radius Cuts, lesser competitors commonly use T-Bone and square 90-degree fittings that can limit fuel flow, cause restrictions and reintroduce air back into your fuel.
• Mass Flow Return (MFR) technology is used to continually polish your fuel by keeping a positive pressure on the fuel being delivered to the engine to prevent cavitation along with galling and scoring. Then returning the fuel, that’s not yet needed, back to the tank after it has been passed through the filtration process, removing dirt, air, vapor and water. This means your fuel is being constantly “Polished” (cleaned), guaranteeing that your diesel truck always has the cleanest fuel possible. The MFR in combination with the optional FASS Fuel Heater options will help insure “EXTREME” cold weather operations!
• Bolt On Bracket Mounts old mounting styles required drilling or welding when mounting your new System.  This has now been simplified with a new bolt on brackets that utilize your Ford Super Duty factory bed bolt, the bolt that secures your truck bed to your frame. Mounting your Titanium Series System takes only minutes and all brackets are made from machined steel for superior support and strength.
