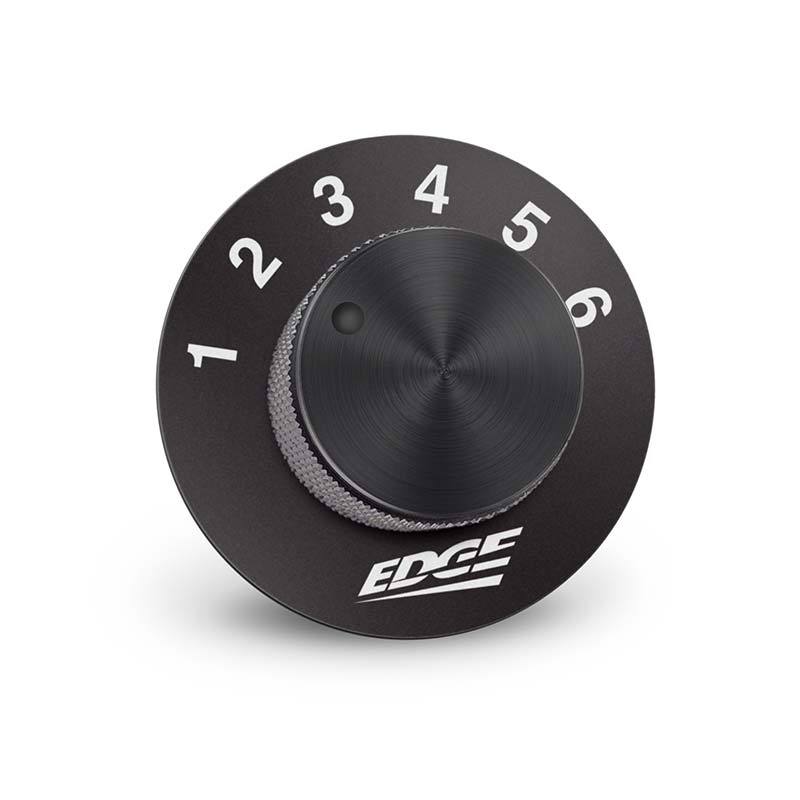

The Edge Revolver is designed exclusively for the 7.3L Ford Powerstroke to deliver power gains up to 150 horsepower over stock via six shift-on-the-fly power levels controlled with a simple to use dash-mounted knob. With the addition of a Revolver, you'll be able to hook up to your trailer, set your power level and tow with confidence.
Once you unhook, change to another power level to burn the tires off or set for maximum fuel economy. It's really that easy. And installation is just as simple. This unit slides into your factory PCM then you run your wires to the switch location, mount the switch, and you're done.
- Easy Installation
- Six Shift-On-The-Fly Power Levels
- Transmission Tuning for Automatic Transmission Equipped Applications
- Up To 150 Horsepower Gains Over Stock
- Increased Fuel Economy
- High Idle (Great for winter warm-up)
- 50 Horsepower
- 75 Horsepower
- 100 Horsepower
- 150 Horsepower
- Note your PCM code and put the code in the order notes so we can ensure you receive the proper tune!

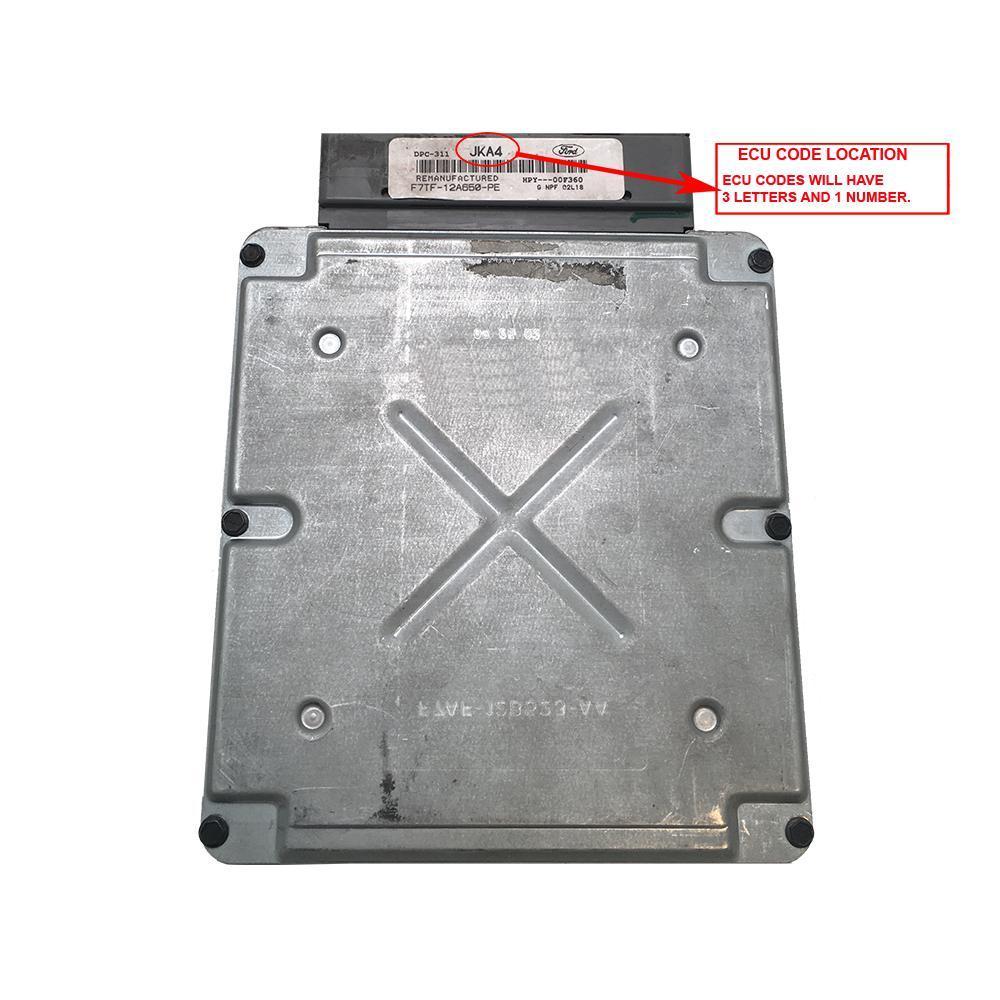

- For those with a 1999 model year and if you are uncertain as to whether it is a 1999 or 1999.5, please inspect your PCM and use the below reference to determine the correct PCM code.
|Edge Part Number||Revolver Description||PCM Code||Support ECU Codes|
|14001||1995-1997 Powerstroke w/ Automatic Transmission||Master Box Code TDE1||LKM MIF NAW PRE PRY TDE TEE YBT ZAA|
|14002||1995-1997 Powerstroke w/ Manual Transmission||Master Box Code MLE1||ALF AUG BEG GOB MLE SOD|
|14003||1999 Powerstroke w/ Automatic Transmission||Master Box Code XLE7||FUT GLF HPA XLE|
|14004||1999 Powerstroke w/ Manual Transmission||Master Box Code AWA4||AWA BDT CLB DYK|
|14005||1999.5-2001 Powerstroke w/ Automatic Transmission||Master Box Code NVK4||AGD BKA CNH FIF HAM JLJ KRK LVS MNM MRT NVK PMT RXM YEV|
|14006||2000 Powerstroke w/ Manual Transmission||Master Box Code DAC3||BAW BIS DAC NBD QEK VRP VXY XPC ZHL|
|14007||2001 Powerstroke w/ Manual Transmission||Master Box Code APX1||APX ZXG|
|14008||2002-2003 Powerstroke w/ Automatic Transmission||Master Box Code VDH4||BXE KEK NWM PBY PRW TMA VDH VDU QLJ|
|14009||2002-2003 Powerstroke w/ Manual Transmission||Master Box Code AEB3||AEB GDU|
|14010||2000-2001 7.3L Excursion||Master Box Code MQJ2||AVB EBM MQJ NMC UKN AXD1|
|14011||2002-2003 7.3L Excursion||Master Box Code NQW2||MAP NQW SHT|
- 1995-1997 Models: Behind the fender liner in the driver's side front wheel opening.
- 1999-2003 Models: In the cab behind and to the left of the emergency brake pedal.
QUESTIONS & ANSWERSAsk a Question
I have a 1994.5, first year powerstroke. Will the Edge Blank Revolver tu er work for my 7.3?? It states it is for 1995-1999 years. Am I out of luck?
It will work! Please select the PCM code relevant to your year and transmission. Only select the blank revolver if you have the burner and would like to burn your own files onto the revolver.
I have a 1994.5 powerstroke. Will this tuner still work ? Do I need to upgrade injectors and turbos as well for the max 150hp gains?
This will work on your powerstroke! No other upgrades necessary to run this.
