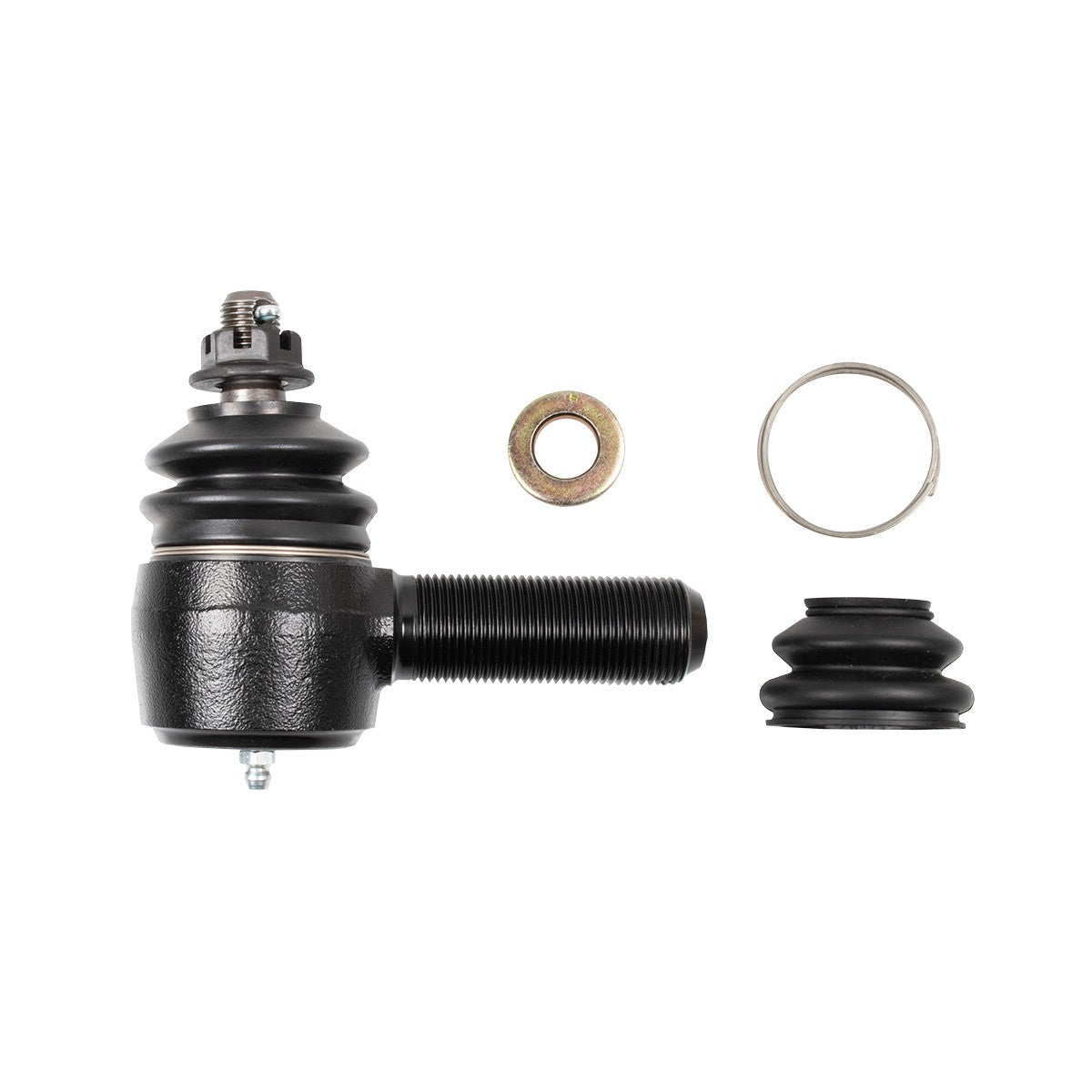

1994+ Cummins Single Plane Retrofit Tie Rod End Kit

Fits:

Upgrade an existing Synergy tie rod to the latest single-plane end design without buying a whole new tie rod. The single-plane geometry tightens steering response and kills the "flop" you feel from worn factory or aftermarket joints. Each kit includes one updated passenger-side single-plane tie rod end plus a fresh driver-side boot, so both sides of your tie rod come out refreshed.

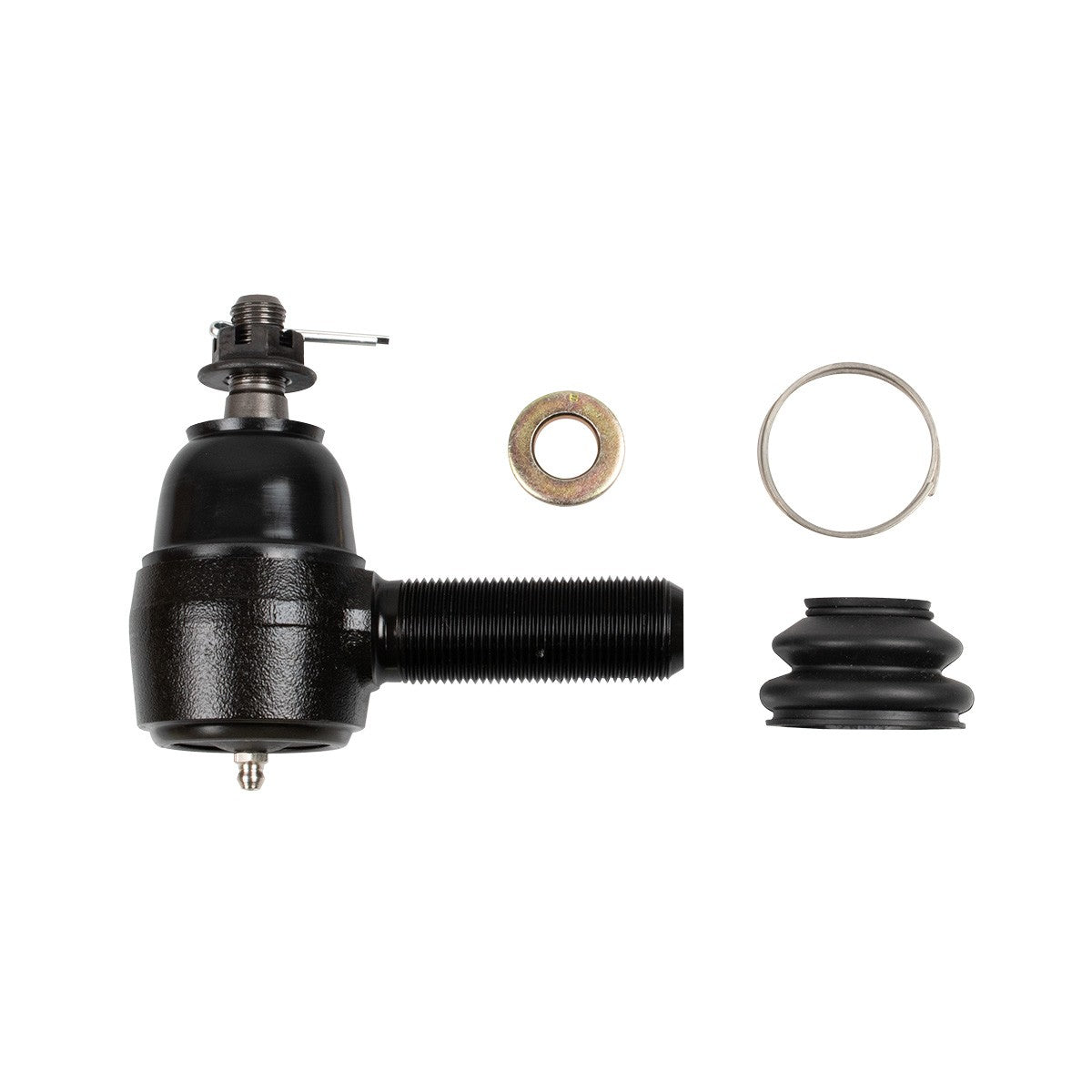

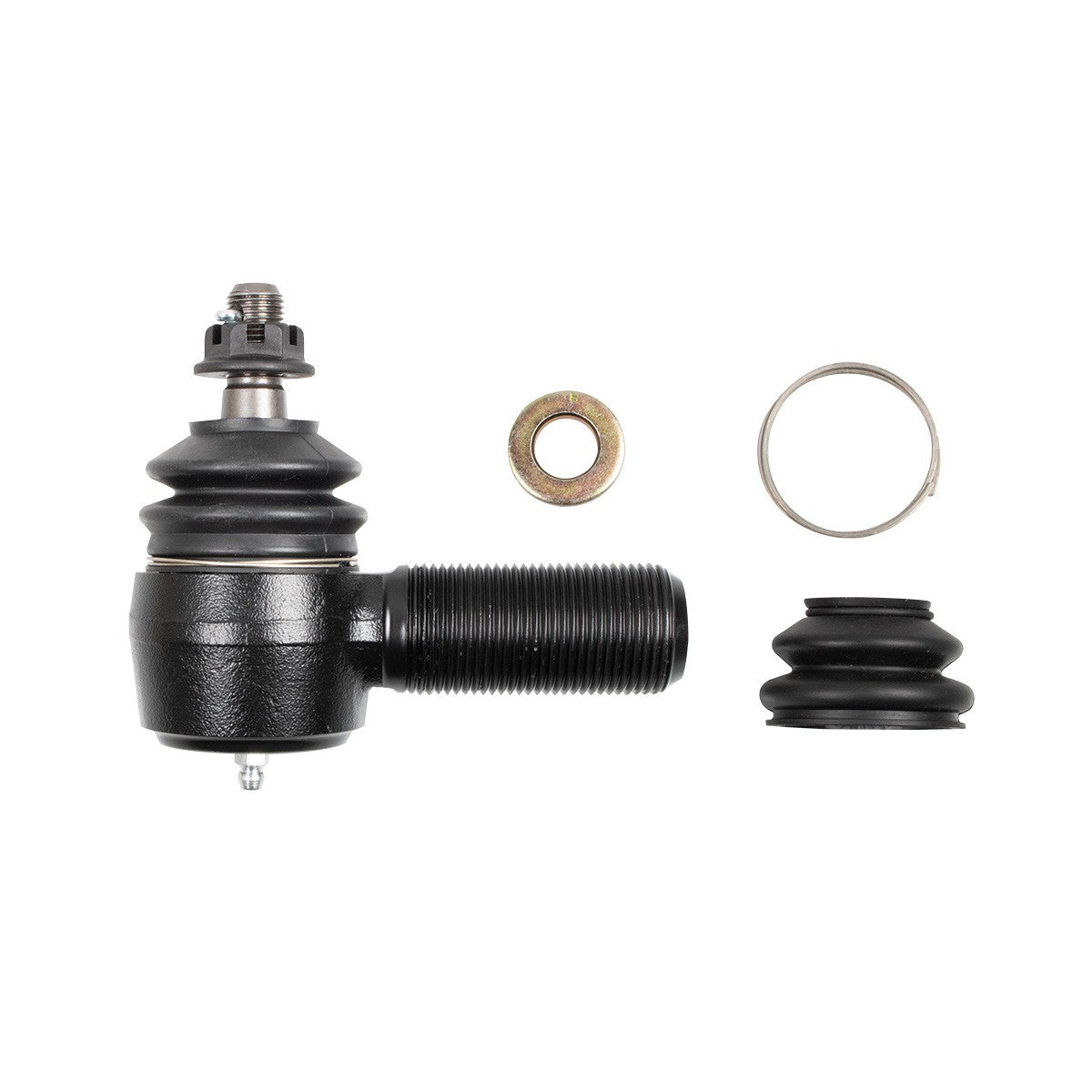

Part Numbers: 4167-01, 4168-01, 4169-01

• Fully greaseable sintered metal-on-metal bushing for maximum wear resistance
• 4140 steel stud with oversized shank - no stress riser at the base
• 1018 forged steel bearing housing for serious load capacity
• Spring-loaded bearing design keeps the joint tight as it wears, preventing premature play
• Heavy-duty NBR rubber boot with retaining spring
• DynaFlo 1/4″-28 straight steel zinc grease zerk with ball check
• Single-plane geometry improves steering precision and prevents tie rod “flop”

• (1) Synergy Heavy Duty Metal-on-Metal Single Plane Tie Rod End
• (1) Heavy Duty NBR Rubber Boot and Retaining Spring
• (1) Hardware Kit

• Fits existing Synergy Dodge Ram tie rods only - not compatible with OEM steering.
• Single-plane joints in this kit are for tie rod applications only, not drag links.
• Only one single-plane joint can be used per tie rod.
• Not compatible with old-style misalignment caps (4134-02) - the driver-side end’s cap must be replaced with the supplied boot.
• If the cotter pin does not engage the castle nut on install, use the supplied washer (not required on every knuckle).
• Synergy High Performance Grease (PN 4119) recommended.
