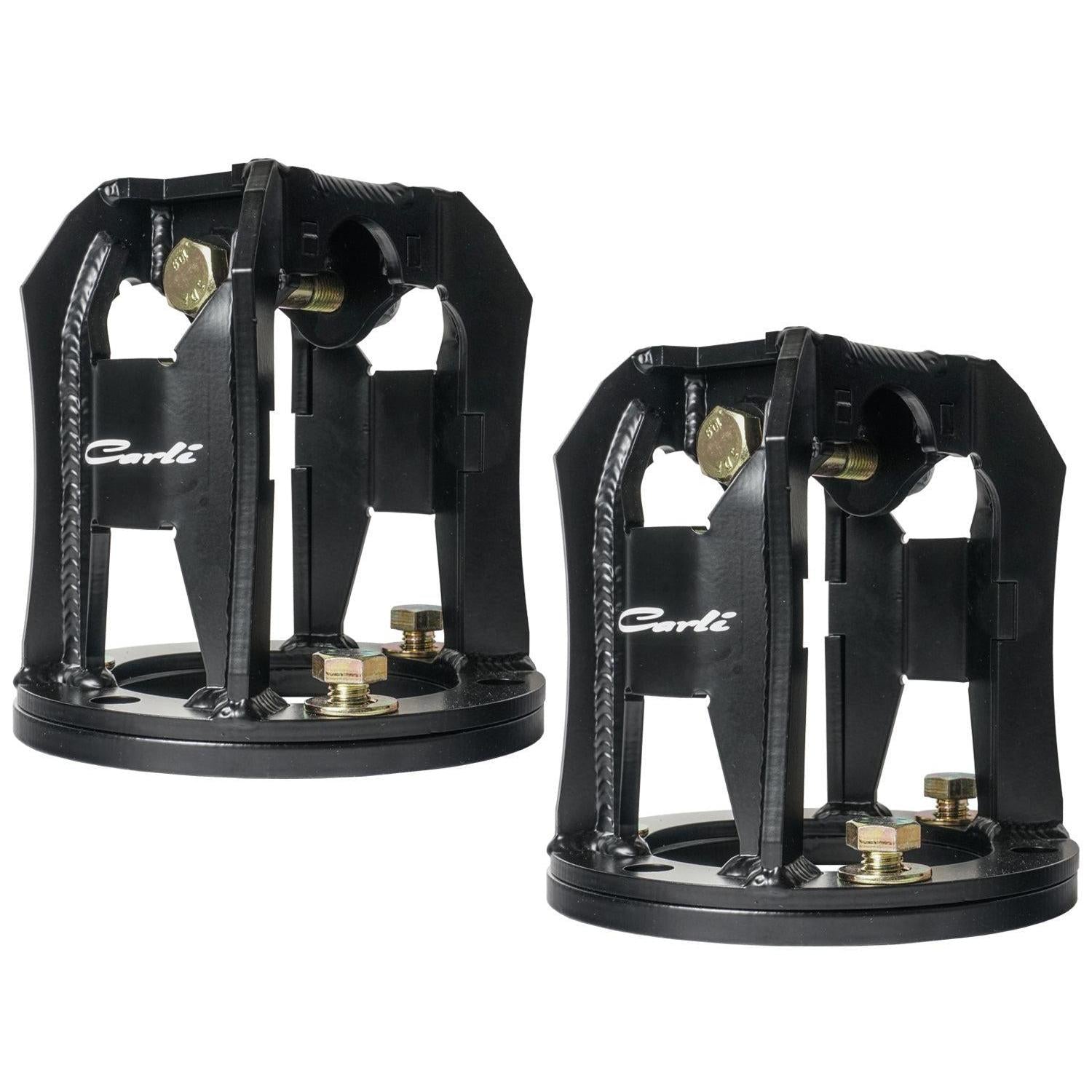

1994-2013 Cummins 4.75" Fabricated Shock Tower w/ 3" Short Arm Systems (CS-DFST475)

Fits

Fully gusseted, expertly welded, CAD-crafted, and laser-cut from 1/4″ cold rolled steel, delivering extreme strength and maximizing shock travel. This particular set maintains the stock mounting height of the factory tower but converts to an eyelet upper mount.

Part Number: CS-DFST475

• 4.75" height from base to center of shock bolt; equivalent to factory
• Converts shock mounting from stem style to eyelet style
• This shock tower is not compatible with OE stem top shocks
• 1/4" cold-rolled steel construction
• Durable black powder-coat finish with grade 8 mounting hardware

CS-DFST475 – This shock tower maintains the stock mounting height of the factory tower but converts to an eyelet upper mount. This is compatible with our 3″ and 6″ Lift Dominator Systems.

CS-DFST525 – Designed 1/2″ taller than the factory shock mount, this shock tower makes room for a longer-body on our Carli-spec 3.5″ Kings utilized in our 6″ Unchained System.

CS-DFST625 – 1.5″ Taller than the factory tower, this tower was designed with a "Slide Over" design for easy installation and maximum shock length. Specifically, it accommodates the short-body, long travel shocks in our 3″ Long-Arm equipped systems.

CAD-crafted and laser-cut from 1/4″ cold rolled steel, our Shock Towers are designed to accommodate Carli Performance, Dominator & Unchained Series shocks. Fully gusseted and expertly welded, these Shock Towers are engineered for work & play, delivering extreme strength and maximizing shock travel. Supplied with each tower is 3/8″ Cold Rolled Stud Ring, the largest in the industry, complemented with 1/2″ Grade 8 hardware. The stud ring was designed so that the towers could be easily removed without coil removal, making shock repairs easier. Finished in Black Powdercoat for long-lasting corrosion protection.
