1994-2012 Cummins HX40 Downpipe with Clamp (HXDPWC)

Fits

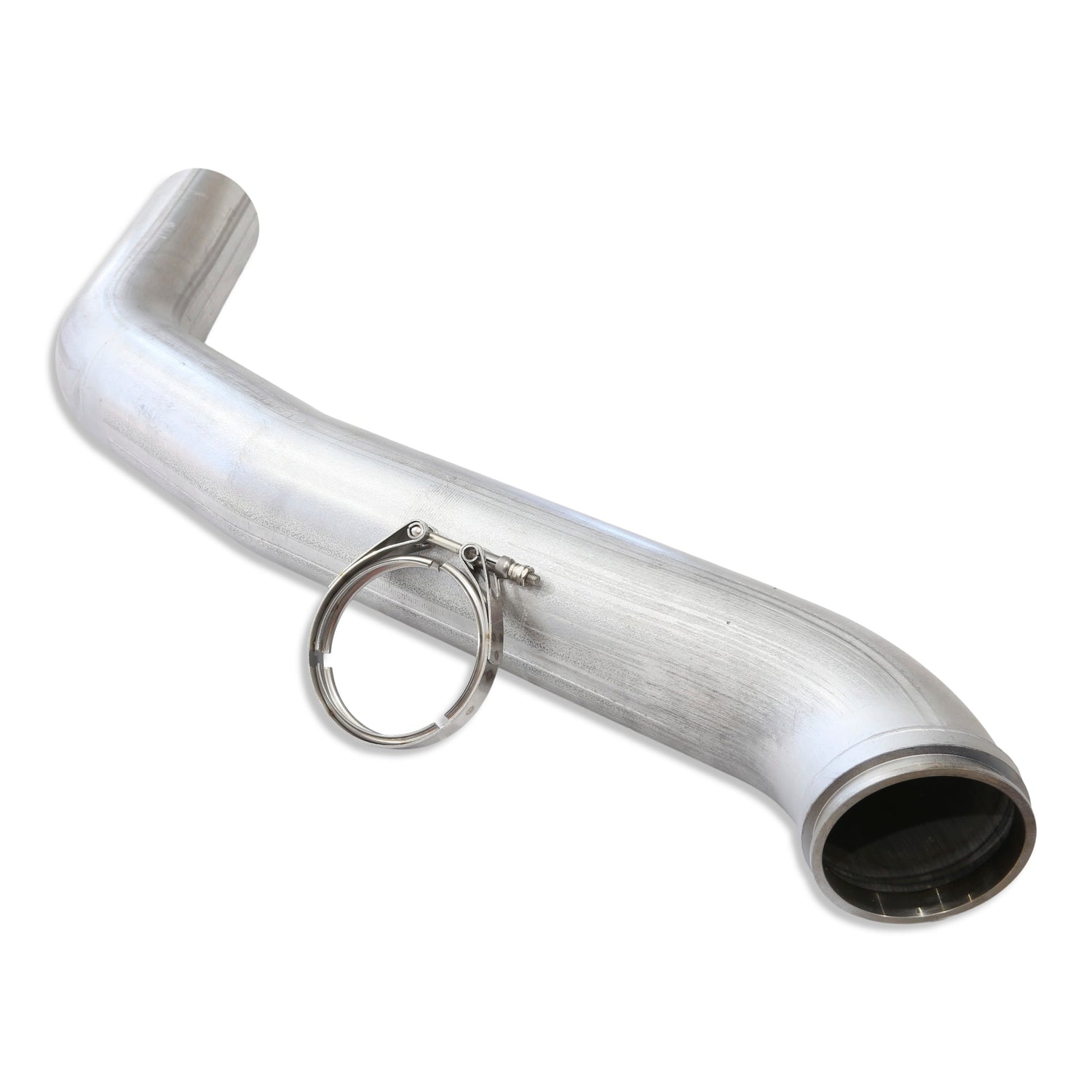

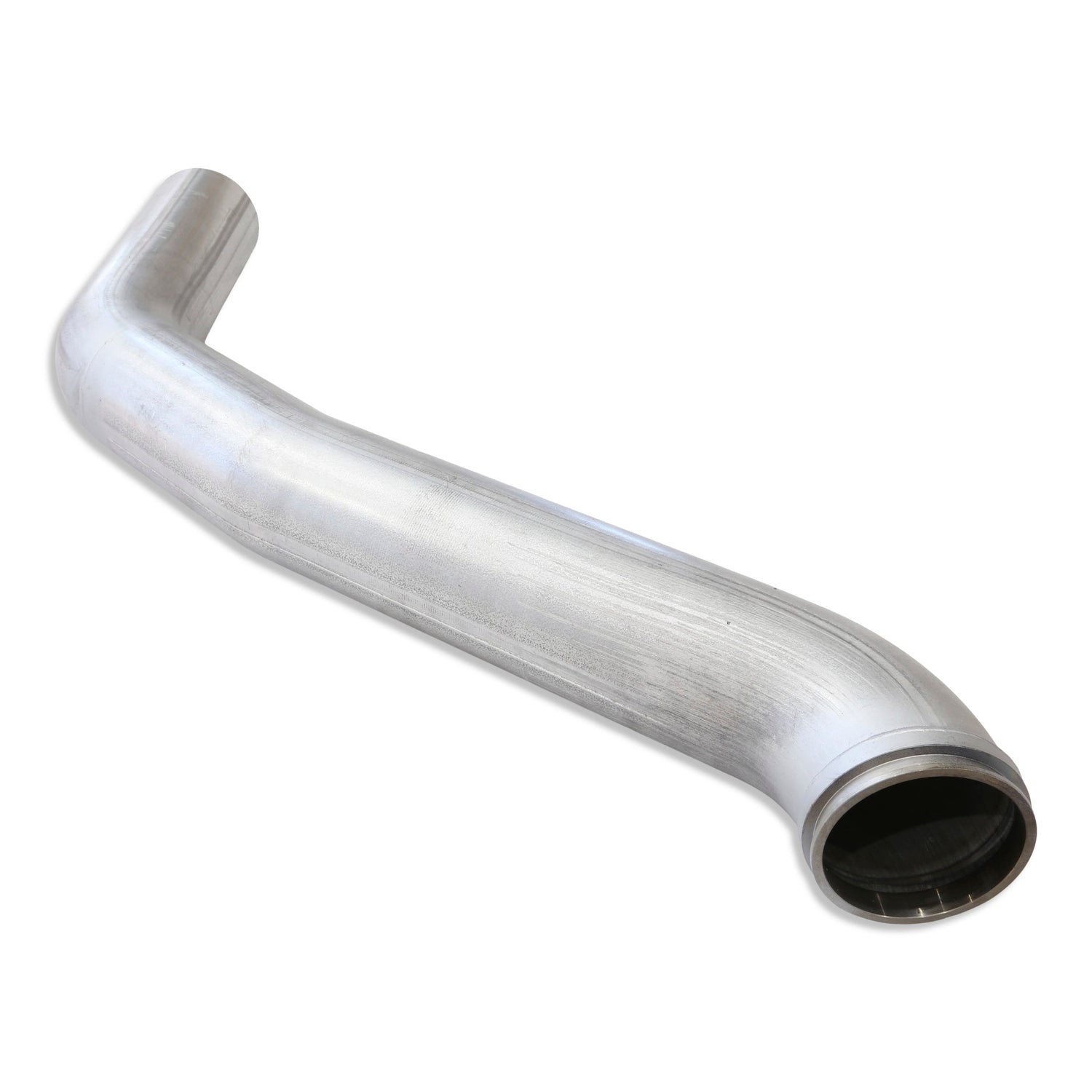

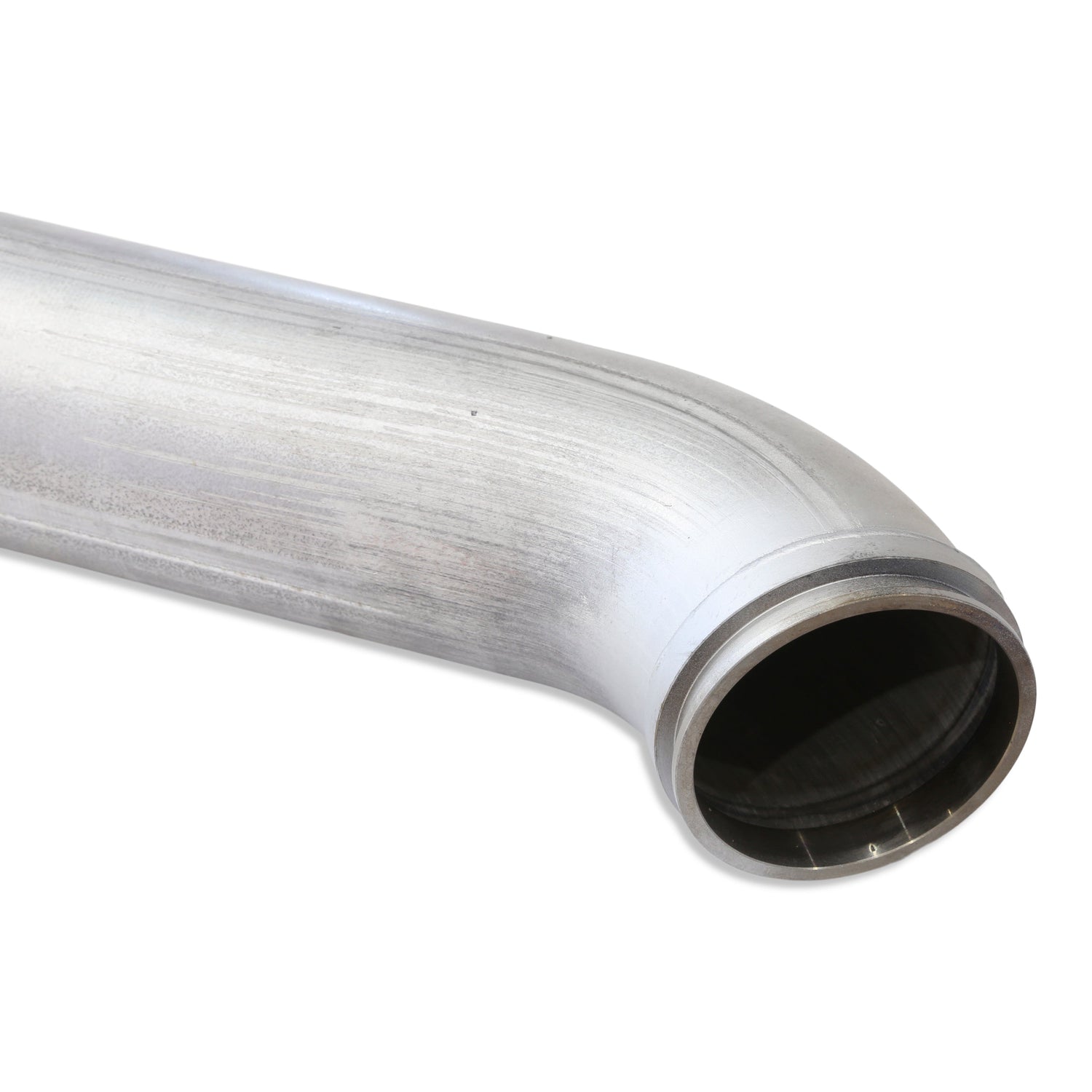

This downpipe connects an aftermarket HX40 flanged turbocharger to the exhaust on a 5.9L or 6.7L Cummins. The flange is a flat face design with a 4 inch outside diameter to match the outlet on an HX40 turbine housing, and the clamp needed to seal that joint is supplied with it.

It covers two applications. On 1994-2002 trucks it bolts to an HX40 flanged charger sitting in the factory turbo location. On 2003-2012 trucks it suits a low mount second gen swap, where the charger has been relocated and the factory downpipe no longer applies.

Part Number: HXDPWC

• Flat face HX40 flange, 4 inch outside diameter
• Clamp included
• Fits factory turbo location on 1994-2002 trucks
• Fits low mount second gen swap turbo locations on 2003-2012 trucks
• Suits 5.9L and 6.7L Cummins applications

• This is not a stock or OEM flange downpipe.
• It is meant for aftermarket turbochargers equipped with HX40 flanges.
• On 2003-2012 Dodge Ram trucks it fits low mount second gen swapped setups only. It will not bolt to a factory turbocharger position on those years.
• Covered by Smeding Diesel's 1 year unlimited mileage limited warranty.

HX40 downpipe with HX40 clamp for the 5.9 and 6.7 Cummins. The HX40 flange is a flat face flange with a 4 inch outside diameter. This is NOT a stock/OEM flange downpipe. This downpipe is meant for aftermarket turbochargers equipped with hx40 flanges. This downpipe will fit factory location hx40 flange equipped turbochargers from 1994-2002. This downpipe will also fit LOW MOUNT 2nd gen swapped 2003-2012 Dodge Ram trucks with the 5.9 and 6.7 Cummins.
