1994-2002 Cummins Viper Phatshaft 62 Turbo Kit (229412)
If your order ships from the USA, Canada charges an import tariff on US-made turbos. It's added at checkout as its own line, not built into the price.
Purchase to earn 3582 Dirty Dollars Learn More
Description
Description

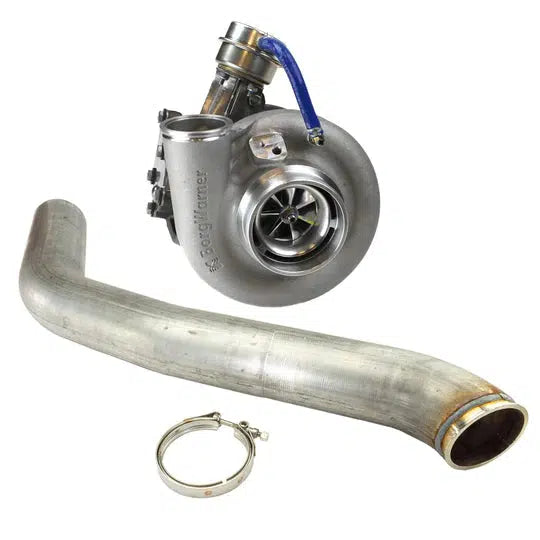

Industrial Injection's Viper PhatShaft 62 drop-in turbo kit for 1994-2002 Dodge Ram 2500/3500 5.9L Cummins (12V and 24V). The step up from the standard PhatShaft 62 — same 62mm compressor wheel but paired with a larger 68mm turbine wheel for more aggressive fueling and harder pulls without choking the back side of the turbo.
The Viper ships with an extended-tip 62mm forged milled compressor wheel and 360° thrust bearing on a 68mm turbine wheel and 12cm exhaust housing. The exhaust nozzle angle is modified, wastegate ports are enlarged, and the wastegate chamber is opened up for full wastegate travel. Runs dual-grooved high-performance journal bearings and an adjustable boost elbow. Kit includes the HX40 downpipe and V-band clamp.
Features
Features
- Viper PhatShaft 62 Drop-In Turbo Kit
- 62mm Forged Milled Compressor Wheel
- 68mm Turbine Wheel — More Aggressive Fueling Headroom
- 12cm Exhaust Housing
- 360° Thrust Bearing
- Dual-Grooved High-Performance Journal Bearings
- Adjustable Boost Elbow
- Modified Exhaust Nozzle & Enlarged Wastegate Ports — Full Wastegate Travel
- Includes HX40 Downpipe & Clamp
- For 1994-2002 Dodge Ram 5.9L Cummins
- Part Number: 229412
