1994-2002 Cummins Super B SX-E S364.5 Turbo Kit (1045250)-Turbo Kit-BD Diesel-1045250-Dirty Diesel Customs

1994-2002 Cummins Super B SX-E S364.5 Turbo Kit (1045250)

BD Diesel

Part Number: 1045250

Sale price$3,149.00 CAD

This product ships for free to most Canadian locations! Learn more.
(show all inventory)

Fits: 1994-2002 Dodge 5.9L Cummins

Comp Wheel: 64.5mm 2.54in

Turbine Wheel: 80mm 3.15in

A/R Ration: 0.80

Flow: 82 Lb/min

HP Rating: 600hp (depending on truck configuration)

The Ultimate drop in turbocharger for your 5.9L Dodge Cummins. All kits come with everything you need to allow for an easy install. Now get these kits with Borg Warner SX-E turbo options and expect even more. A BD-exclusive feature of the SX-E turbos is that they are waste-gated to mount on stock T3 manifolds.

Part Number: 1045250

  • The SX-E turbo was designed for performance with a 360 thrust bearing and enhanced compressor wheel and housing
  • Larger compressor blade surface but with a smaller inducer results in quicker spooling, more flow than similar sized wheels
  • The high strength FMW Forged Milled Wheels are lighter and stronger and withstand higher wheel speeds
  • BD exclusive feature of a heavy sprung waste-gated T3 turbine housing that mounts onto stock exhaust manifolds
  • BD's HD Waste gate and bracket holds boost and prevents over speed damage
  • Turnbuckle Boost Control allows for ease of adjustment for altitude and extreme tuning

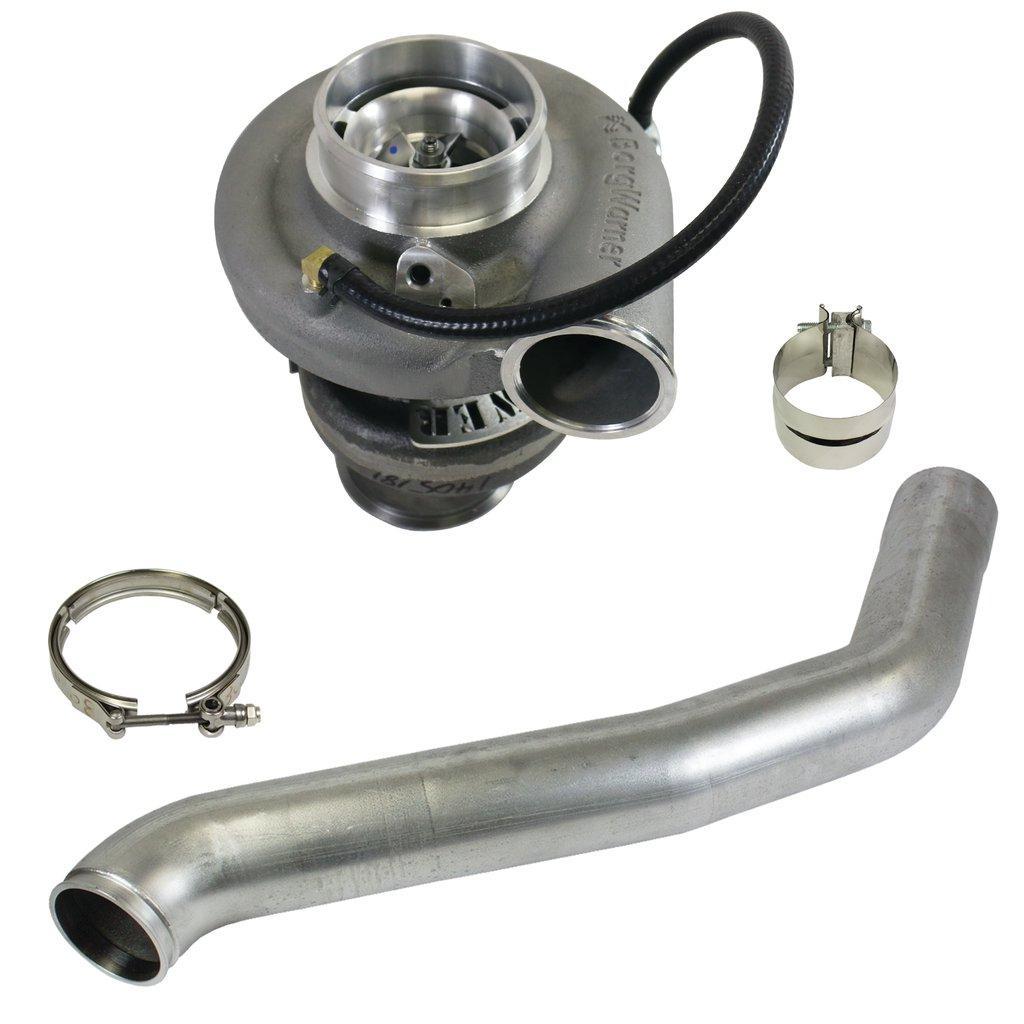

  • Kit comes with downpipe, V-band clamp, band clamp
  • Comp Wheel: 64.5mm 2.54in
  • Turbine Wheel: 80mm 3.15in
  • A/R Ratio: 0.80
  • Flow: 82 Lb/min
  • Approximate rated 600hp (depending on truck configuration)
  • Turbo mount exhaust brake cannot be installed with this kit - use remote mount exhaust brake
