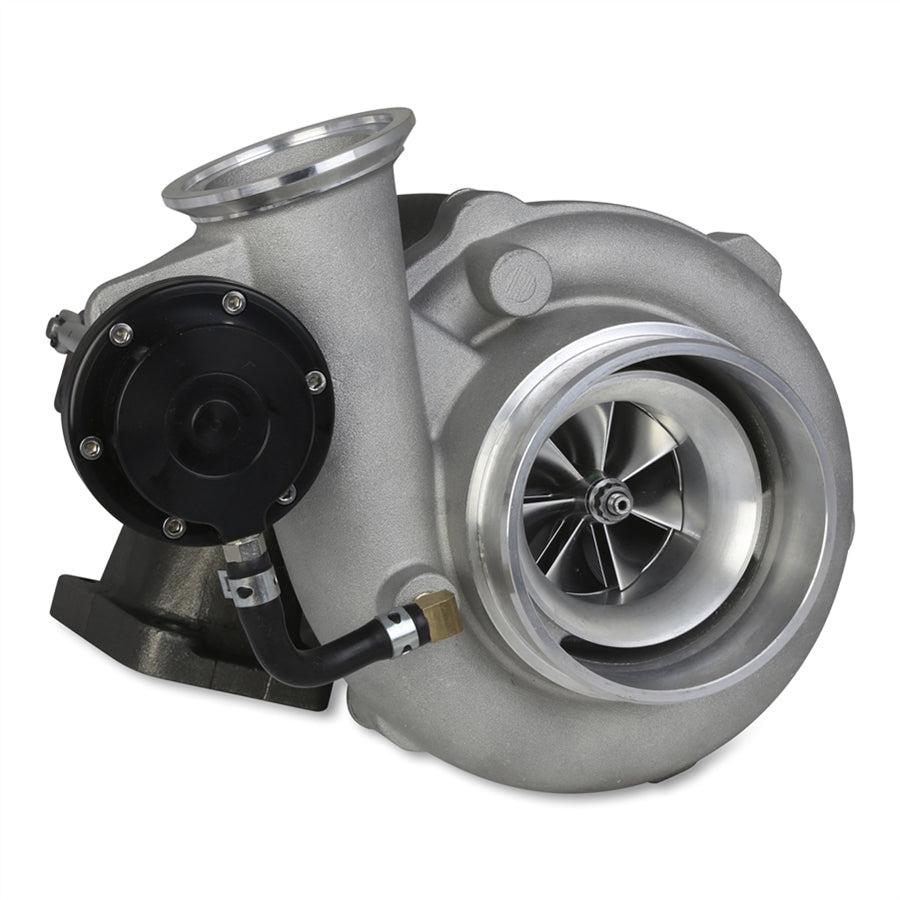

1994-2002 Cummins Smeding EZ Drop-In Turbo (9402CEZDT)

Name: 1994-2002 Cummins Smeding EZ Drop-In Turbo (9402CEZDT)
Brand: Smeding Diesel LLC
SKU: 9402CEZDT
Price: 1492.26 CAD
Availability: InStock

(1)

Smeding Diesel LLC Part Number: 9402CEZDT

$1,492.26 CAD

Made in the USA

If your order ships from the USA, Canada charges an import tariff on US-made turbos. It's added at checkout as its own line, not built into the price.

+$260.00 CAD

Purchase to earn 1492 Dirty Dollars Learn More

This product ships for free to most Canadian locations! Learn more

Truck Fitment

Description

This EZ Drop-in Turbo is a performance OEM replacement. No need for additional purchased parts as this Turboworks with all factory components! With this turbo, you will reduce EGTs and spool faster than the OE Turbo. Comes with an adjustable Wastegate that is pre-set to 36 PSI, a genuine Kawasaki Compressor Wheel, and an extended tip Compressor Wheel.

Part Number: SMED-0565

Features

Billet CNC Compressor Wheel
Extended Tip Compressor Wheel Technology
Step Gap Oil Seal on Turbine Side
Quick-Set Wastegate Actuator
Compressor Inducer - 59mm
Compressor Exducer - 80mm
Exhaust A/R - 0.84
Adjustable Wastegate Pre-Set - 36 PSI
Genuine Kawasaki Compressor Wheel
Extended Tip Compressor Wheel
Direct Replacement for OE Turbocharger
Reduced EGT's
Spools faster than OE Turbo

Questions and Answers

Don't see your question? Ask us anything about this product.

Hi, looking for a turbo upgrade for my 1992 12v. I have stage 2 injectors, fuel pin and governor spring mods done. Would this turbo be similar to an HX35 with a 12cm exhaust housing?

Yes, the Smeding EZ Drop-In is very similar to an HX35 with a 12cm² housing, but features a larger, modernized 59mm billet compressor wheel that flows more air.
Does this turbo come with the exhaust outlet adaptor for the stock 3" exhaust pipe? And is the exhaust inlet flange twin scroll style?

The turbo itself has a larger HX40-style 4" downpipe outlet. To make this work with your stock 3" exhaust pipe, you will need a downpipe adapter.
