1994-2002 Cummins Viper PhatShaft Turbos (3622306801)
If your order ships from the USA, Canada charges an import tariff on US-made turbos. It's added at checkout as its own line, not built into the price.
Purchase to earn 3155 Dirty Dollars Learn More
Description
Description

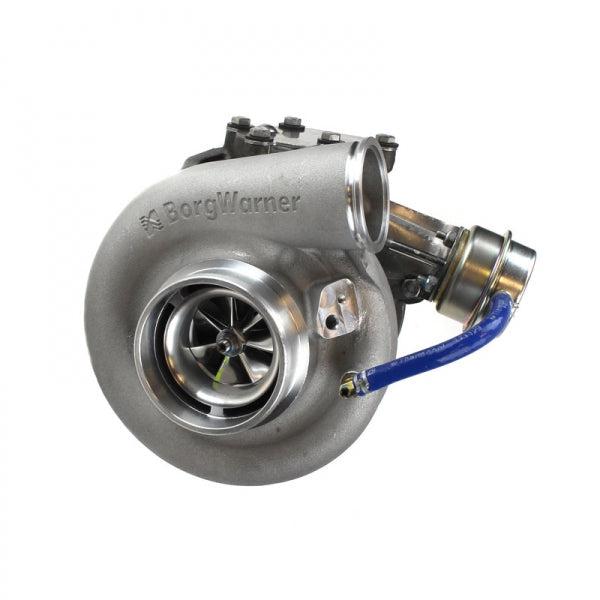

Industrial Injection's Viper PhatShaft Series drop-in turbocharger for 1994-2002 Dodge Ram 2500/3500 5.9L Cummins (12V and 24V). The 68mm-turbine variant of the PhatShaft family — handles mild fueling upgrades and works equally well for towing, daily driving, or street performance. Compressor options are 62mm, 63mm, or 64mm.
The Viper ships with an extended-tip forged milled compressor wheel and 360° thrust bearing on a 68mm turbine wheel. Available in 12cm or 14cm exhaust housings — Industrial Injection recommends the 12cm for both 12-valve and 24-valve trucks for faster spool. The exhaust nozzle angle is modified, wastegate ports are enlarged, and the wastegate chamber is opened up for full wastegate travel. Runs dual-grooved high-performance journal bearings and an adjustable boost elbow.
Features
Features
- Viper PhatShaft Series Drop-In Turbocharger
- 62mm, 63mm, or 64mm Extended-Tip Forged Milled Compressor Wheel
- 68mm Turbine Wheel
- 12cm or 14cm Exhaust Housing Options
- 360° Thrust Bearing
- Dual-Grooved High-Performance Journal Bearings
- Adjustable Boost Elbow
- Modified Exhaust Nozzle & Enlarged Wastegate Ports — Full Wastegate Travel
- Designed for Towing, Daily Driving & Street Performance
- For 1994-2002 Dodge Ram 5.9L Cummins
- Part Number: 3622306801
Notes
Notes
- Requires an HX40 4" Downpipe & Clamp (HX40DP2) — not included with the bare turbo SKU.
- Depending on factory oil drain configuration, the drain tube may need minor modification for wastegate rod clearance.
