1994-2002 Cummins Commuter 2.75" Lift Kit (CS-D3-COM-CS-94-D)

Carli Suspension
$2,233.44 CAD
Notices

This item may have additional freight costs. Learn More

Build Your Kit

Carli's 2.75" Commuter system for the 94-02 Cummins HD platform pairs softer-rate front coils with a tuned shock package for a more comfortable highway ride. Pick the Rear Leaf option that matches your payload needs; optional Extended Control Arms re-center the axle on 3" lift systems.

Step 1 of 3 · Optional

Sway Bar Options

Needed to complete this build. Skip only if your truck already has one installed. When pairing added down-travel with the taller ride height, the position of the factory sway bar will need to be altered. For this, we offer extended Sway Bar End Links equipped with ½” FK Rod-Ends and in-house machined 17-4 stainless bodies that are extended over stock to reset the sway bar engagement point. Factory pillow-bushings are re-used to assemble the sway bar to the lengthened link.

Step 2 of 3 · Optional

Rear Leaf Options

Needed to complete this build. Skip only if your truck already has one installed.

Step 3 of 3 · Optional

Control Arms
Your Build
1994-2002 Cummins Commuter 2.75" Lift Kit (CS-D3-COM-CS-94-D)
$2,233.44

Purchase to earn 2233  Dirty Dollars Learn More

Truck Fitment

Description

Note: Full Progressive Leaf Pack is HIGHLY RECOMMENDED

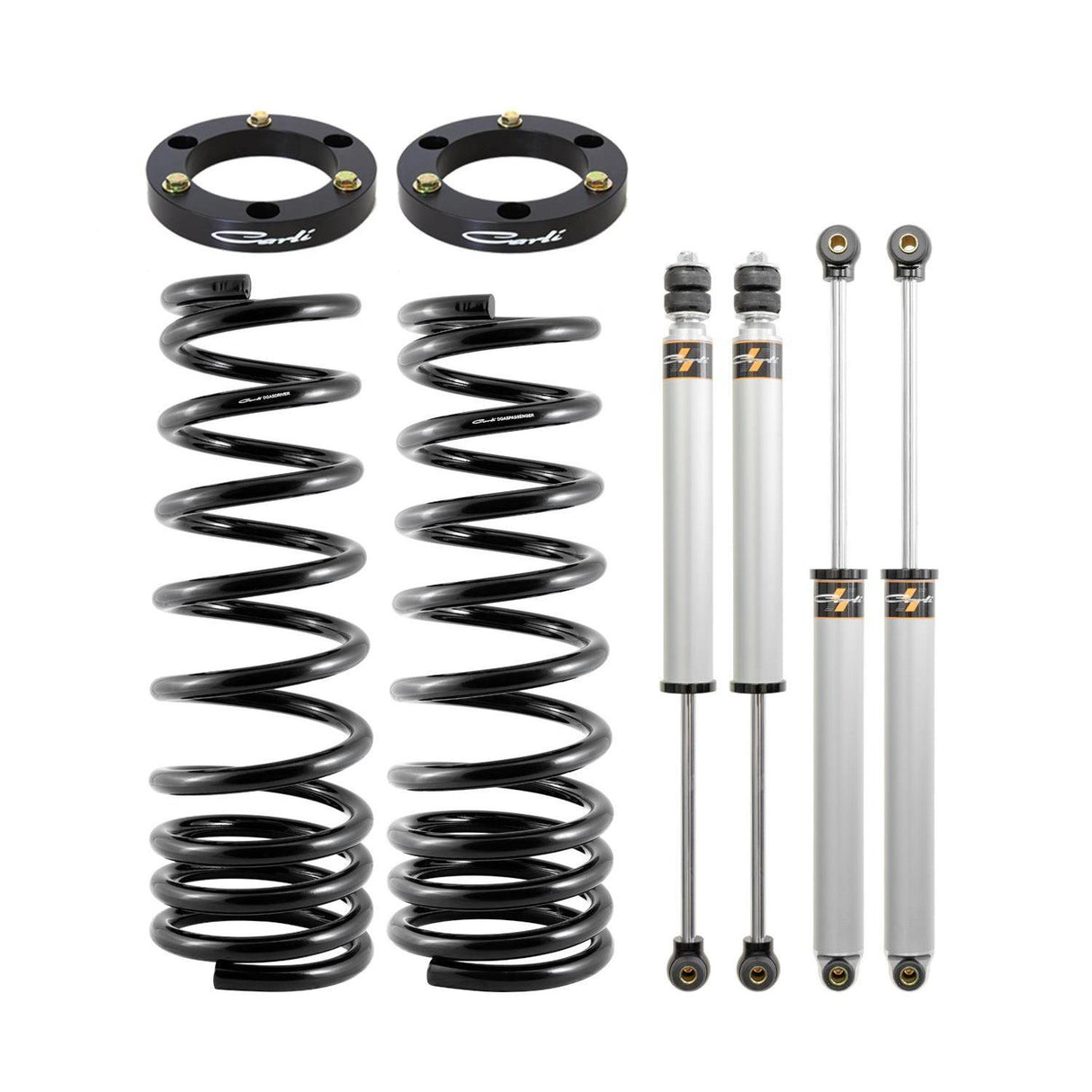

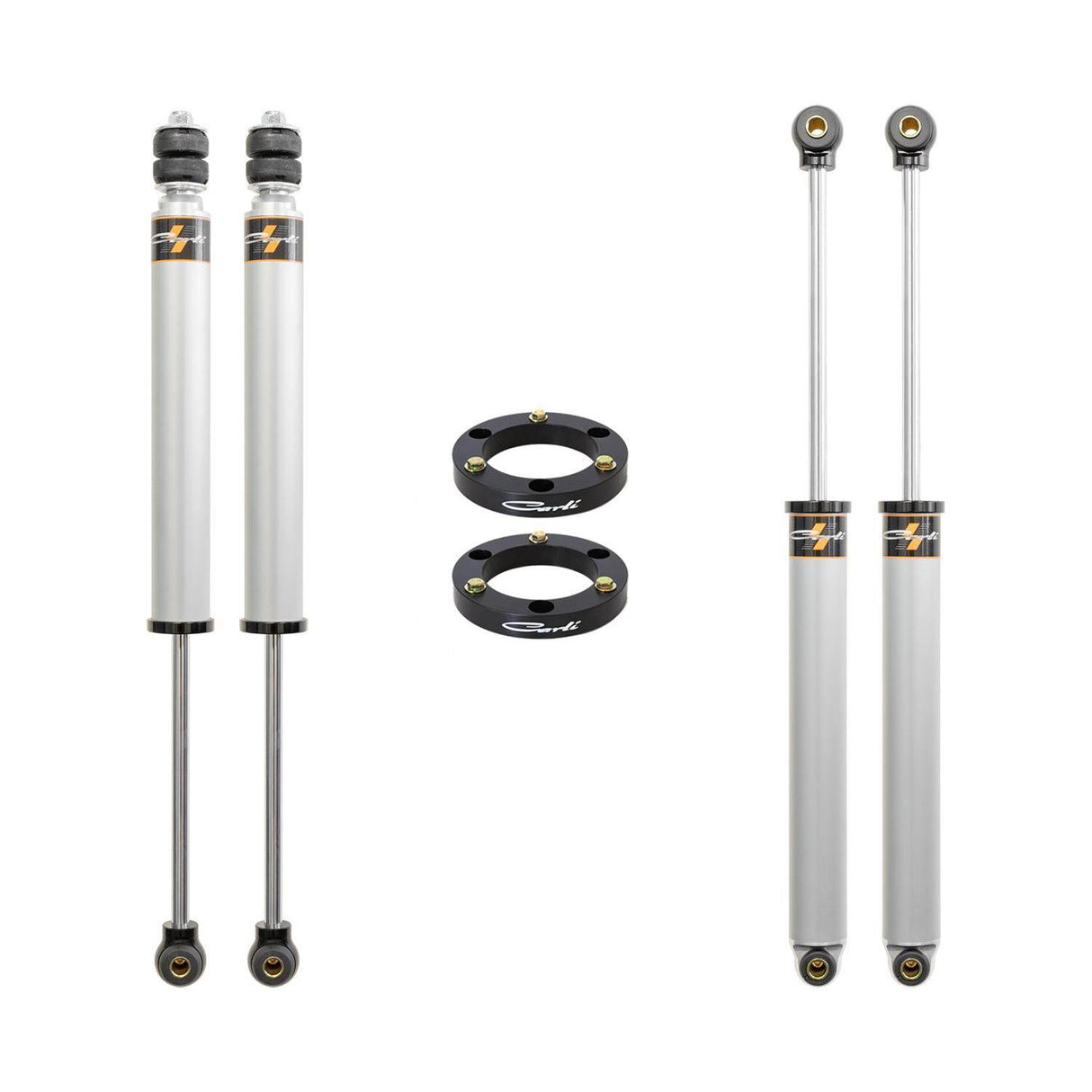

The perfect comprehensive suspension setup for your Cummins, with front multi-rate coil springs that provide a slight rear rake and smooth, soft highway driving and a stiffer, more controlled ride on rough terrain or hauling heavy loads. Paired with Carli's 2.0 6063 Aluminum shocks with 6061 Billet rod ends to further maintain stability, control, and provide superior bottom-out protection. Perfect for the daily driver that's sticking to city streets and highways.

Part Number: CS-D3-COM-CS-94-D

Features
  • Carli-Tuned 2.0 shocks provide a more comfortable on-road feel and better off-road performance
  • Corrosion-resistant aluminum bodies provide a long-lasting finish

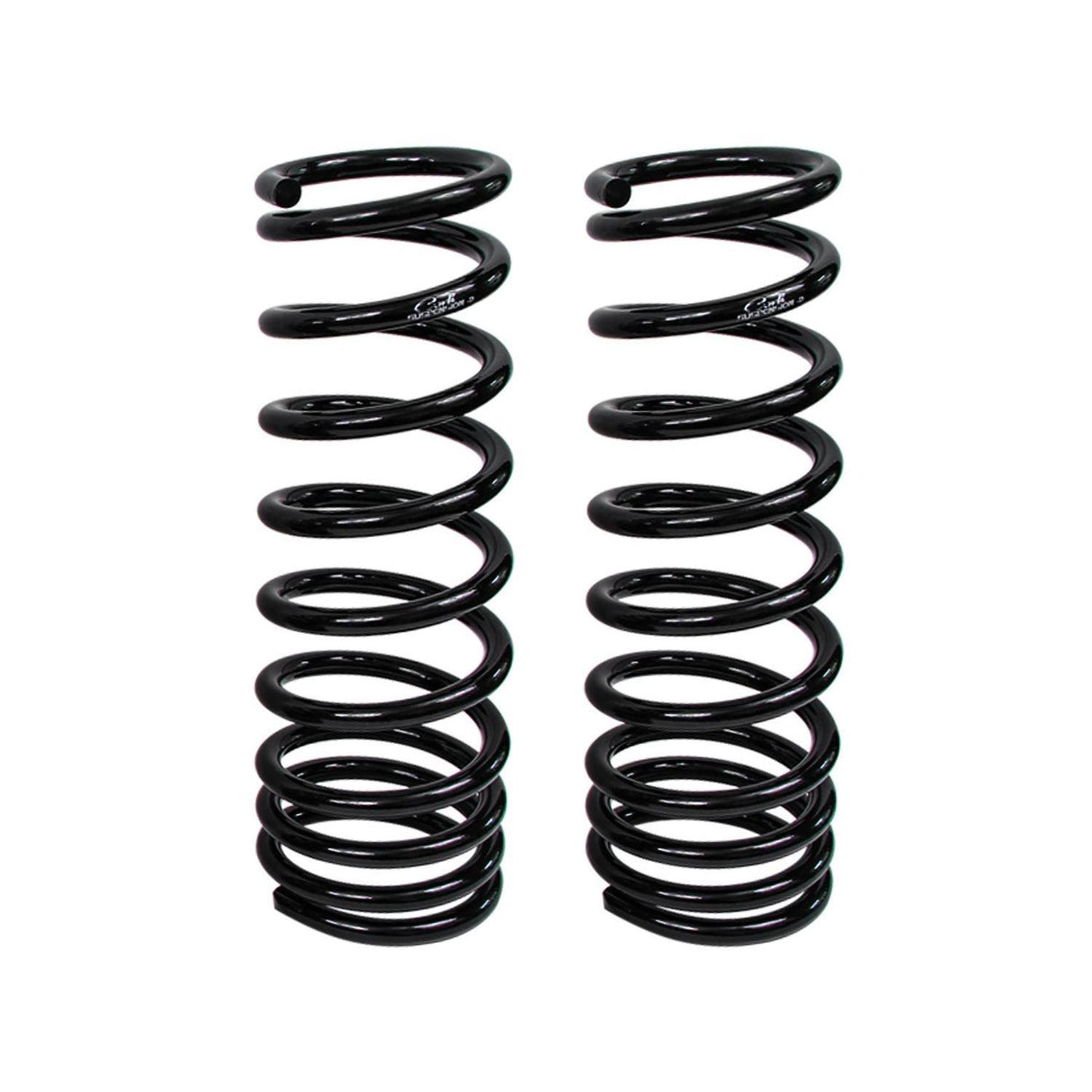

  • Multi-rate front coil springs, front and rear shock package, and shock tower spacer
  • 2.5-3" of lift (year/cab configuration dependent)
  • Increases wheel travel by 50% thanks to the taller, lighter rate coil springs
  • Fits up to 35" tires for a more aggressive appearance and better off-road performance

Notes
  • Full Progressive Leaf Pack is HIGHLY RECOMMENDED
