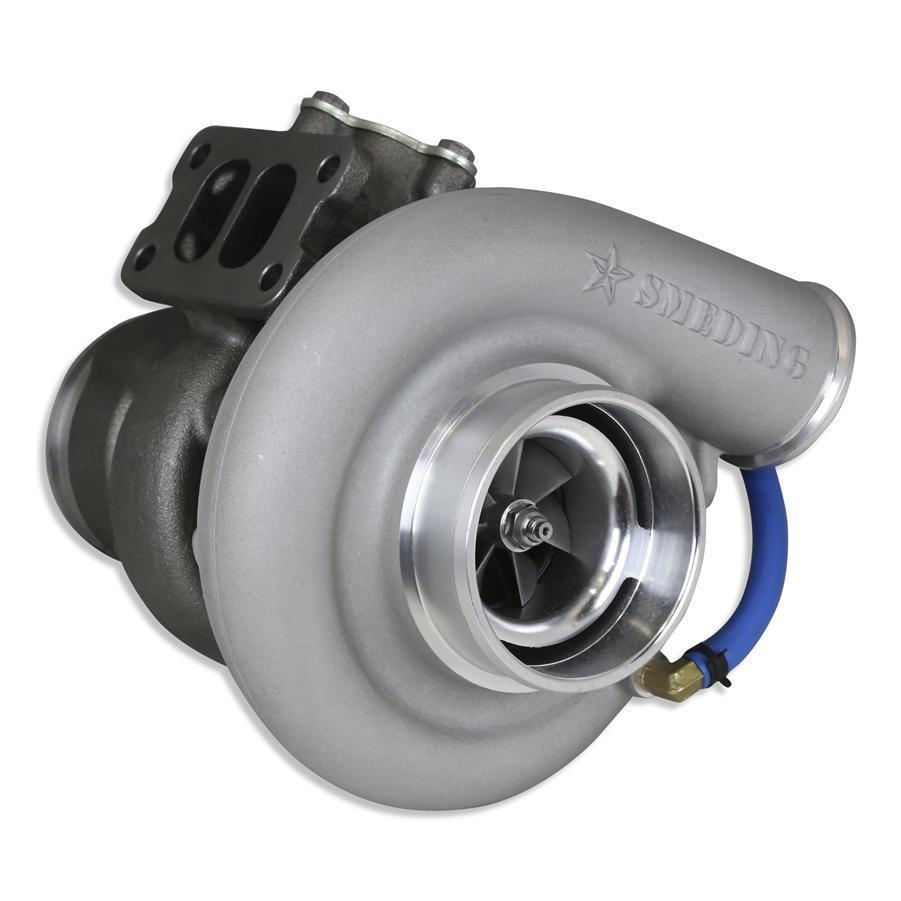

1994-2002 Cummins Billet S369 73MM Upgraded Replacement Turbo (9402B697314F)
Purchase to earn 2393 Dirty Dollars Learn More
Description
Description
Fits
| Year | Make | Engine |
| 1994-2002 |
Dodge Ram |
5.9L Cummins |
All Smeding Diesel Parts are Built To Order in Texas and are special orders, which can take longer than normal for fulfillment. If you're in a rush, contact us and we can make special arrangements.

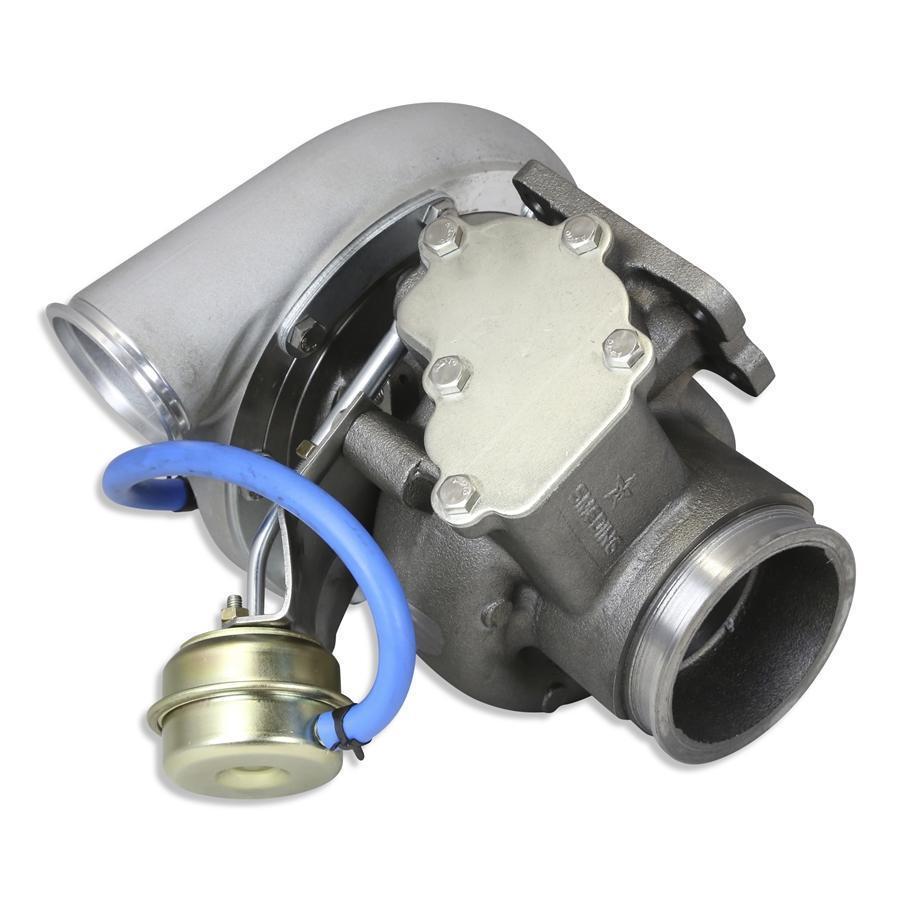

Specially designed for the Cummins owner with larger fueling upgrades, but also wants a simple, yet effective bolt-on replacement turbocharger. This S369 features an extended tip 69mm billet compressor wheel with a 73mm turbine wheel, Twin Scroll Divided T3 Gated Housing 14cm .80, and 40PSI standard wastegate pressure with the ability to adjust it if desired. Fully capable of a whopping 750- 800HP, effectively providing you with increased power, spool-up, and enhanced efficiency.
Part Number: 9402B697314F
Features
Features
- Drop-in replacement
- Designed to handle heavy fueling upgrades
- Comes equipped with an extended tip 69mm billet 6-blade compressor wheel
- Supports 750-800Hp
- Comes with a T3 Gasket & Oil Drain Gasket
- 73mm turbine wheel
- Twin scroll divided T3 gated housing available in 14cm .80 A/R
Notes
Notes
- Housings will be set to 36-40 PSI, the wastegate can also be adjusted by the customer.
Questions and Answers
Questions and Answers
Previously asked questions
We've compiled a list of questions and answers below.
Don't see your question? Ask us anything about this product.
Ask a Question-
What kind of injector size would be recommended to run with this turbo?
You need aggressive 180 to 200 HP (5x0.016) injectors for a 12-valve P-pump truck, or 200 to 250 HP injectors for a 24-valve VP44 truck. Running anything smaller will result in severe turbo lag and high EGTs.
