1994-1999 Cummins 4.5" Lift Kit (BDS211H)

Fits

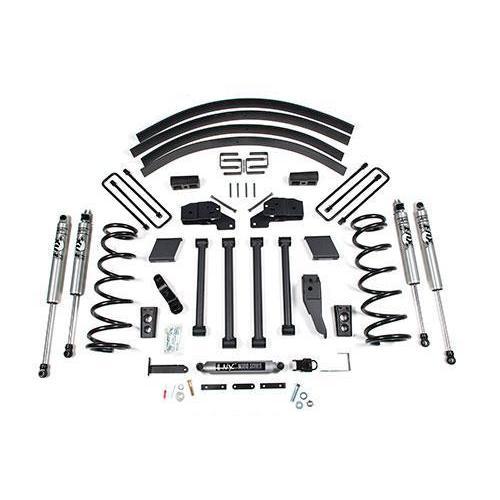

Keep it riding tall and true with this BDS Suspension 4.5" Lift Kit. This lift kit comes with new front Pro-Ride Coil Springs, upper and lower greaseable control arms, track bar relocation bracket, pitman arm, extended length urethane bump stops, anti-sway bar drop brackets, brake line relocation brackets, and steering stabilizer. BDS kits are some of the most thorough in the business which means that you can drive in with a stock truck, open up your lift kit and drive out modified without having to go look for small spare parts that weren't included as you might find in a less complete kit!

Part Number: BDS211H

• 4.5" ProRide Coil Springs
• 4.5" Rear Block Kit
• Upper & Lower Control Arms
• Track Bar Relocation Bracket
• Forged Drop Pitman Arm
• Brake Line Relocation Brackets
• NX2 Steering Stabilizer
• Polyurethane Replacement Bushings
• Up to 35" Tires

Tire & Wheel Combinations:

• 35" x 12.50" w/ 16 x 8 and 4"

• This is designed for vehicles without the Top Mounted Overload Springs
• For models built after February 9, 1994, due to track bar stud size.
• May require exhaust modification
• These vehicles were produced with and without a top-mounted overload spring. You will need to identify which your vehicle has before ordering.
• Pictured with an additional rear spring option. Rear spring option NOT included
• Although this is pictured with Fox Shocks, this kit will come equipped with BDS Series Shocks. If you would like fox shocks, please reach out.

• Click Here For Installation Instructions
• Difficulty: 3 (where 1 = easiest and 5 = complicated)
