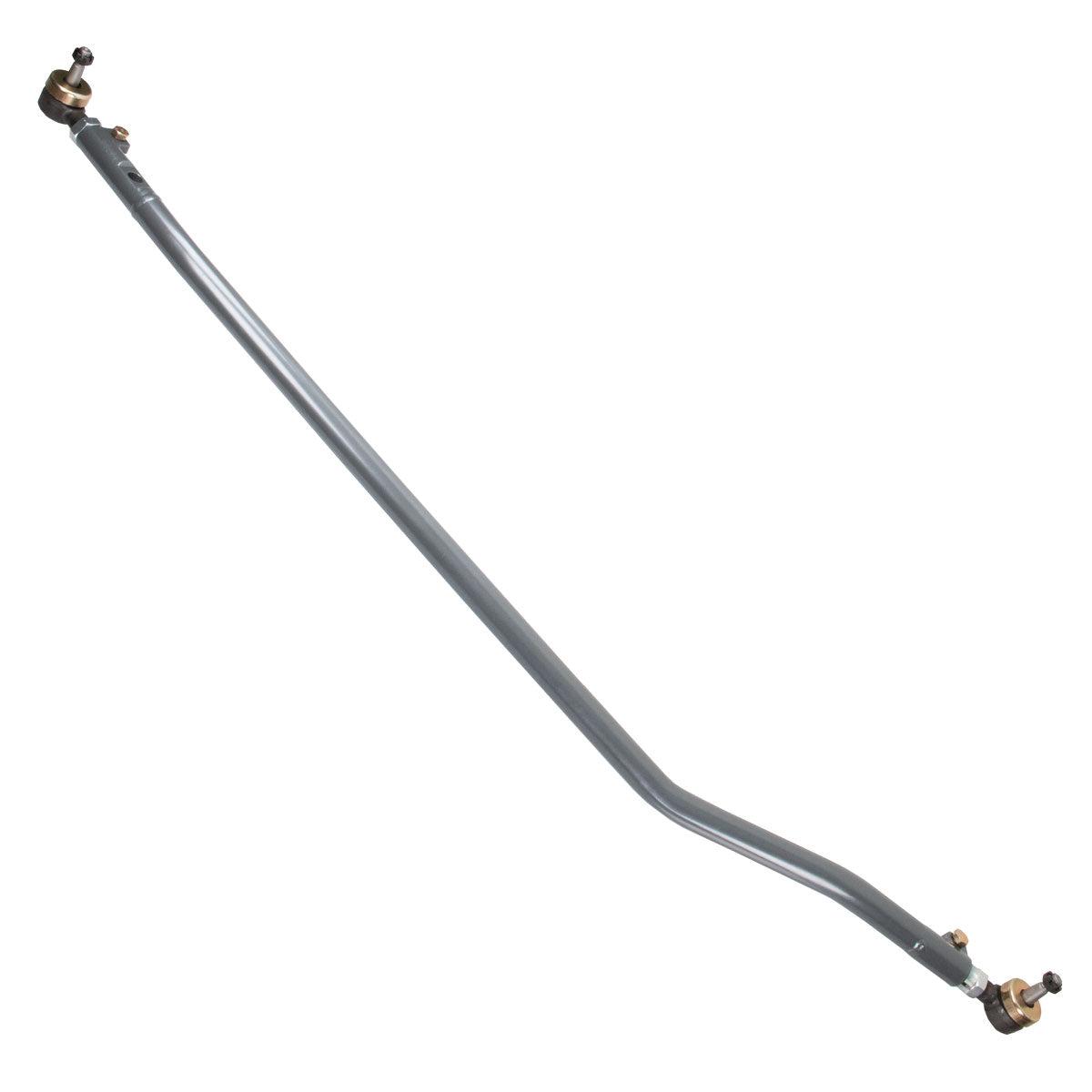

1994-2002 Cummins Tie Rod (8568-2X)

Fits

Part Number: 8568-23/8568-22

Superseded Part Number: 8568-03/8568-02

• Tie Rod is bent to clear sway bar mounts and steering pitman arm
• Provides 2" of additional ground clearance from stock tie rod
• Made from 1-1/2" x .188 wall 4130 Chromoly and Heat Treated for maximum strength - 200% stronger than stock tie rod

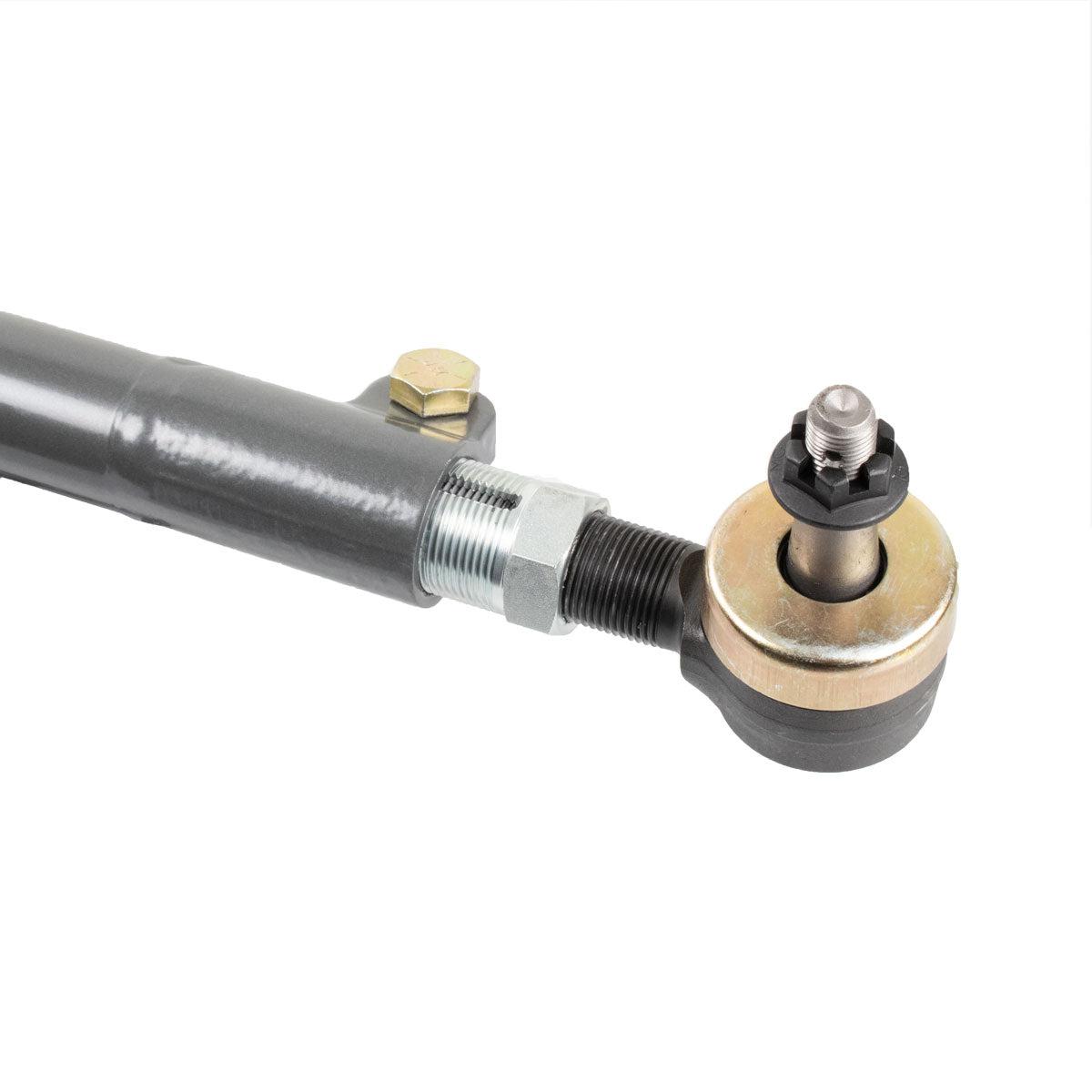

• Synergy Double Adjuster Sleeve: allows adjustment of tie rod length without removing it from the vehicle
• Suspension components feature an abrasive-resistant powder coat finish for maximum durability and corrosion resistance
• 100% bolt-on components assure an easy, trouble-free installation with the use of basic hand tools
• Tie Rod comes with Synergy HD metal-on-metal tie rod ends, 4136-L

• Click Here

• 98-99 trucks that originally came with T-Style Steering (Where the tie rod connects to both knuckles) must use the pitman arm from 94-97 trucks, stamped TRW-246

• Min/max Measurements:
  Measured from center of mounting point to center of mounting point
  • Minimum - 59.75"
  • Maximum - 62"
