1994-1998 Cummins Triple Disc Torque Converter (2361819-3D)

Suncoast Diesel Part Number: 2361819-3D
$2,570.16 CAD


Total w/ Addons:

Additional Refundable Core Deposit Required of $335.00 CAD.

Notices
This item may have additional freight costs. Learn more

Purchase to earn 2570 Dirty Dollars Learn More

Description

Fits

 Year Make Engine
1994-1998 Dodge Ram
5.9L Cummins

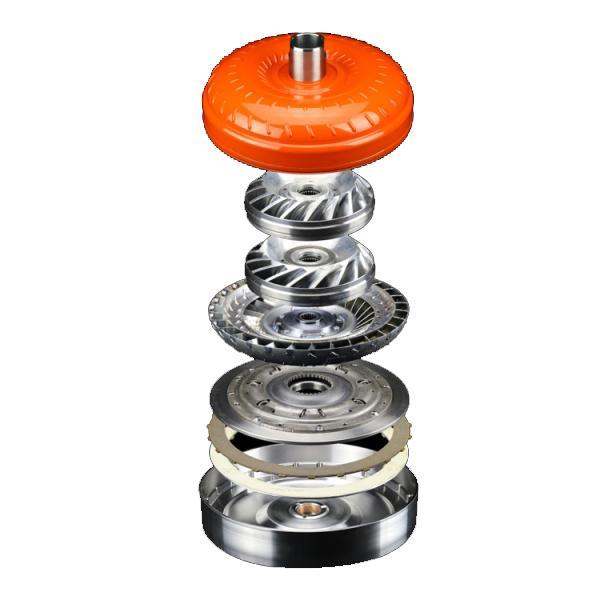

SunCoast Dodge series torque converters are designed and manufactured in-house. Because of this, the company is able to supply almost any request in regard to stall, torque multiplication, and efficiency to custom applications.

Custom-designed billet stators provide better torque and efficiency prior to the lockup. SunCoast's custom-designed CNC machined billet piston houses its 3-disk converter lock-up clutches and will not flex like other billet converters on the market. This clutch then applies to the custom CNC machined forged billet cover.

Part Number: 2361819-3D

Features

  • Multiple billet stators for various stalls (1800-3000 stocked)
  • Custom pump and turbine modifications (in-house)
  • Tig welding to reinforce furnace brazed fins
  • Proprietary converter clutches with trapezoid clutch teeth (no round tabs)
  • CNC machine billet stators (1800-3000 RPM stall)
  • 4140 turbine splines (heat treated depending on application)
  • Billet steel and aluminum pistons
  • Forged billet cover strength (proprietary Raybestos converter clutch plates)
  • Pressure tested welds/spun balanced to ensure the highest quality
  • 2200 STALL 12V 3D CONVERTER

Notes

  • 12-valve dinosaurs cannot run lower than 2,200 stall. Great for daily driver/towing and mild charger trucks. If running big injectors and chargers, refer to the 2361825-3D 2,500-stall or higher along with the option of the shaft.
  • Core deposit required.
