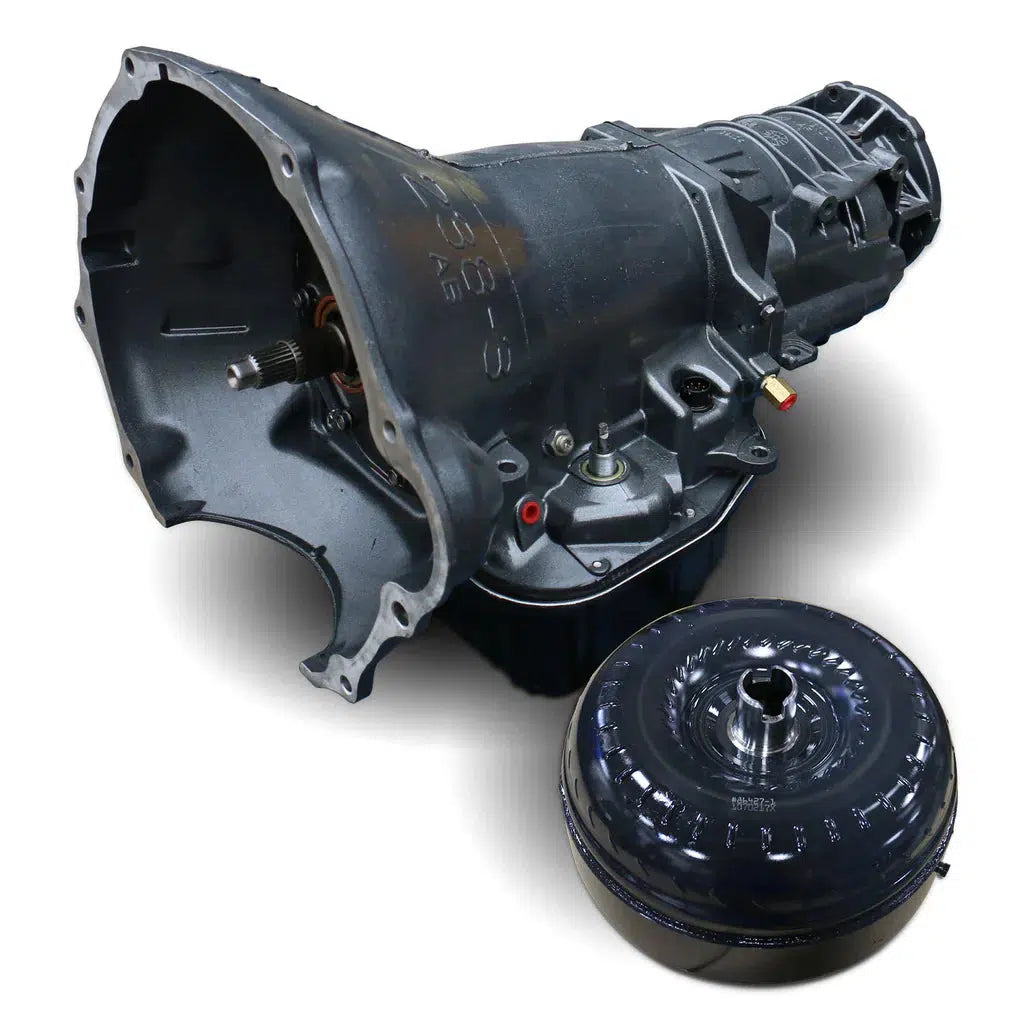

1994-1995 Cummins 47RH Towmaster Transmission & Converter Package (4WD) (1064154SS)

Fits

Dyno tested together for ultimate performance and reliability; Every transmission comes with BD's own HD pan that adds extra fluid capacity. For towing, street, or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands.

Part Number: 1064154SS

Transmission:

• Upgraded Valvebody
• Increased line pressure to 190-200psi
• Stock thrust bushings replaced with roller Torrington bearings
• Clutch Count: DIRECT 5
• Clutch Count: FORWARD 5
• Clutch Count: OD 6
• Clutch Count: OD DIRECT 10
• High temp Raybestos band
• Billet band strut
• BD rigid aluminum heavy duty transmission pan
• Pan adds 2qt extra oil capacity
• Pan heat-dissipating fins keep temperature down
• Magnetic drain plug
• Increase the durability of your drivetrain
• BD auxiliary full flow filter kit for extra protection
• Cooler line case saver in every transmission
• Every transmission is tested on a dyno


Torque Converter:

• Enhanced Stall - Street/Towing applications
• Torque multiplying cast aluminum stators
• Lower rpm response than the stock converter
• More efficient operation
• Less heat and better fuel economy
• Stamp-forged steel front cover
• Furnace-brazed fins
• Up to triple the amount of lock-up clutch material


• 9 Hours
• Install Click Here
• Auxiliary Transmission Filter Kit Click Here

Parts Only - No Race abuse is covered or Sled Pull use.

• 36 Months
• 150,000 Miles
•  Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.
