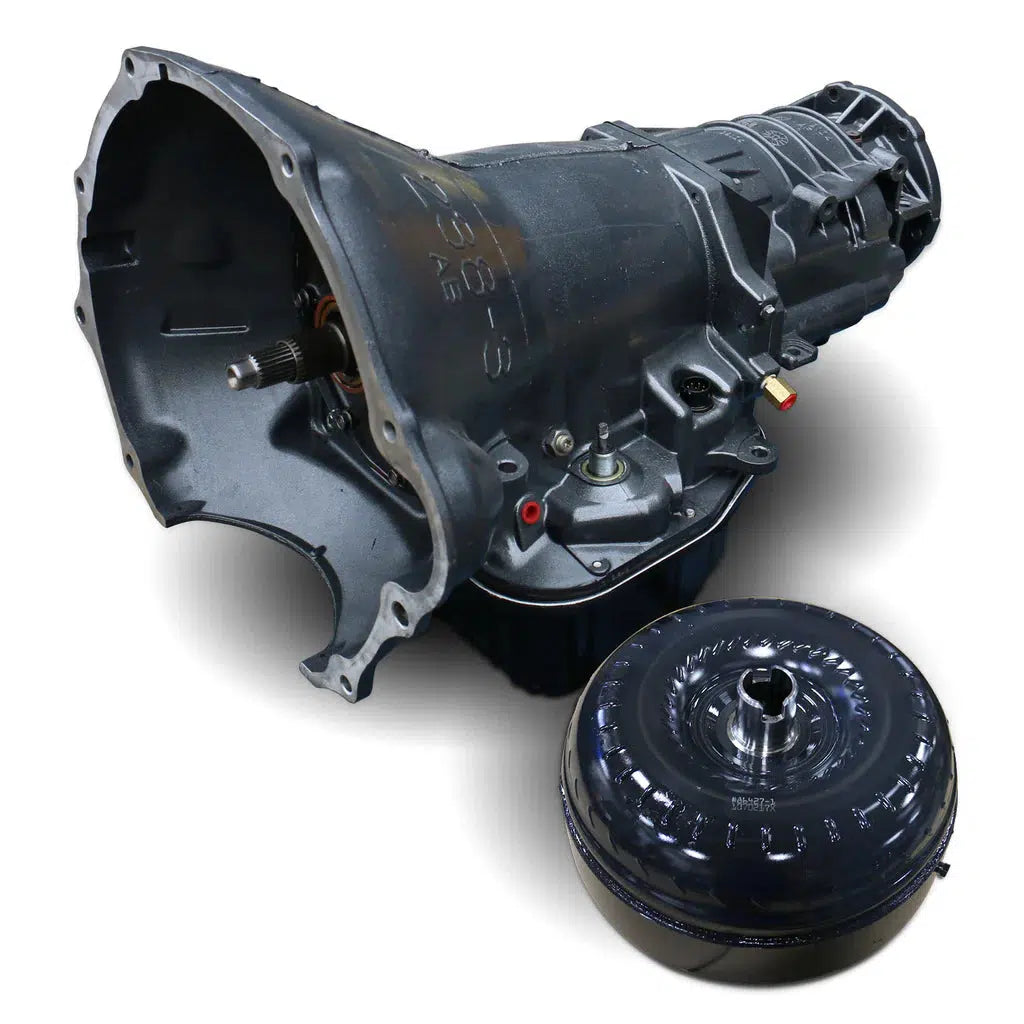

1994-1998 Cummins 47RH Towmaster Transmission & Converter Package (2WD) (1064152SS)

BD Diesel Part Number: 1064152SS
$7,379.00 CAD


Total w/ Addons:

Additional Refundable Core Deposit Required of $3,250.00 CAD.

Notices
This item may have additional freight costs. Learn more

Purchase to earn 7379 Dirty Dollars Learn More

Description

Fits

 Year Make Model Engine
1994-1998
Dodge Ram
2500/3500 2WD 5.9L Cummins

-Dyno tested together for ultimate performance and reliability; Every transmission comes with BD's own HD pan that adds extra fluid capacity. For towing, street, or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands.

Part Number: 1064152SS

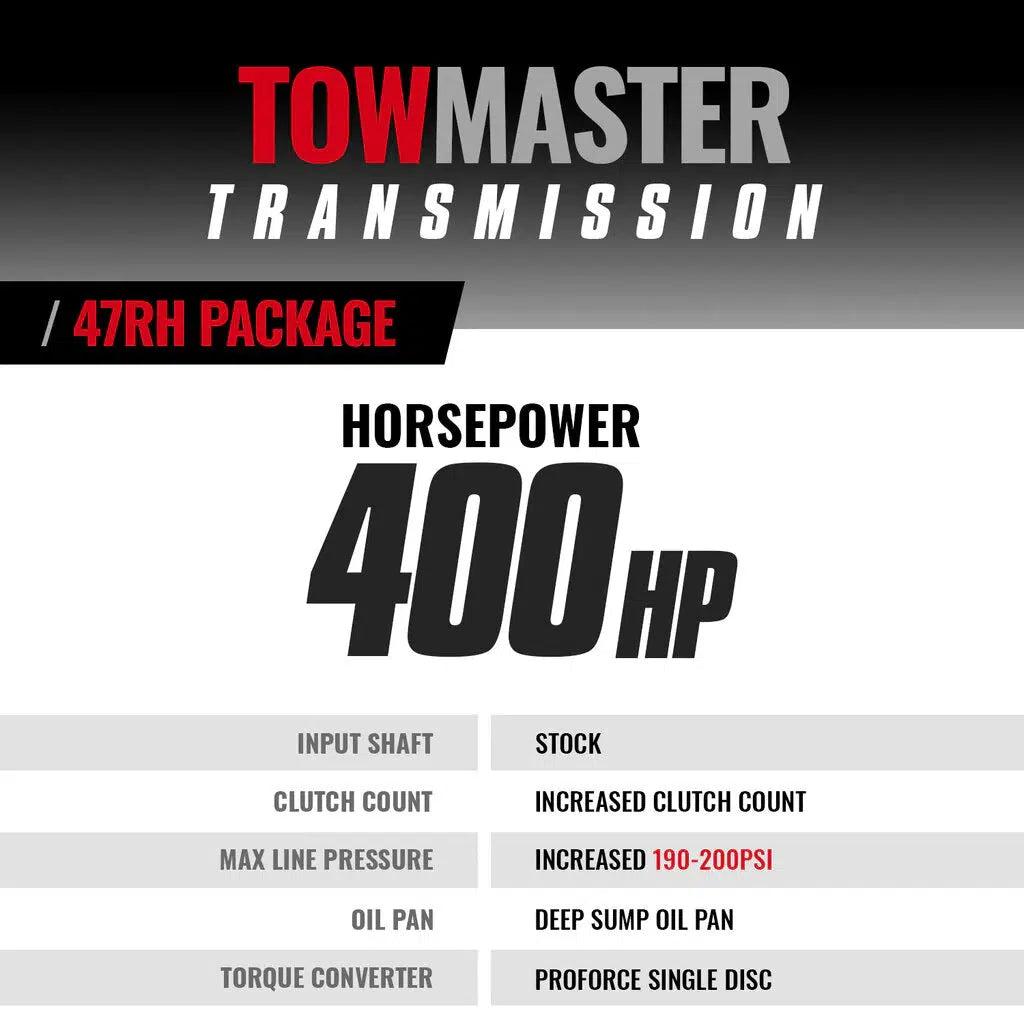

Features

Transmission:

  • Upgraded Valvebody
  • Increased line pressure to 190-200psi
  • Stock thrust bushings replaced with roller Torrington bearings
  • Clutch Count: DIRECT 5
  • Clutch Count: FORWARD 5
  • Clutch Count: OD 6
  • Clutch Count: OD DIRECT 10
  • High temp Raybestos band
  • Billet band strut
  • BD rigid aluminum heavy duty transmission pan
  • Pan adds 2qt extra oil capacity
  • Pan heat-dissipating fins keep temperature down
  • Magnetic drain plug
  • Increase the durability of your drivetrain
  • BD auxiliary full flow filter kit for extra protection
  • Cooler line case saver in every transmission
  • Every transmission is tested on a dyno

Torque Converter:

    • Enhanced Stall - Street/Towing applications
    • Torque multiplying cast aluminum stators
    • Lower rpm response than the stock converter
    • More efficient operation
    • Less heat and better fuel economy
    • Stamp-forged steel front cover
    • Furnace-brazed fins
    • Up to triple the amount of lock-up clutch material

    Installation

    Warranty

    Parts Only - No Race abuse is covered or Sled Pull use.

    • 36 Months
    • 150,000 Miles
    •  Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.
