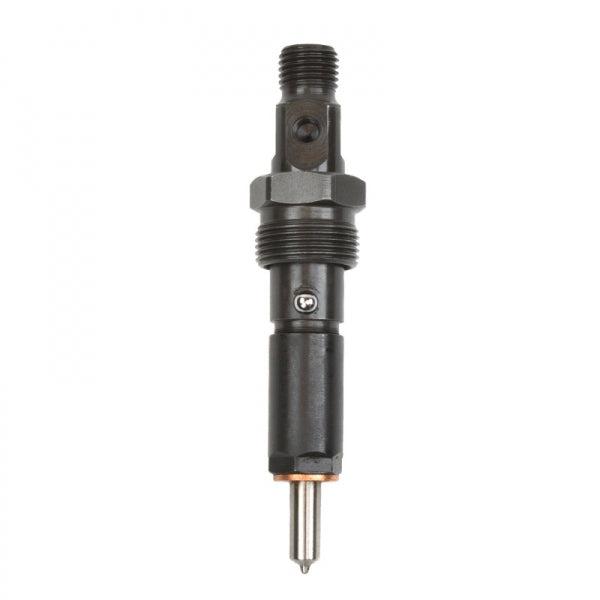

1994-1995 Cummins Bosch Injector (0432133859-IIS)

Bosch KDAL59P6-body stock-spec injector for 1994-1995 Dodge Ram 2500/3500 5.9L 12V Cummins auto-trans trucks (160 HP power rating). Direct OE replacement — the right injector for stock-power rebuilds and replacement on early-model 2nd gen Cummins trucks.

The KDAL59P6 body is the early 12V intercooled injector body, distinguishable from later 1996+ 12V injectors. 7mm nozzle with 5 holes drilled at 145°, opening pressure 260 bar (3770 PSI). Inlet fuel line connection is 14mm × 1.5mm. Sold individually — six required for a full set.

• Bosch KDAL59P6 Stock-Spec 12V Cummins Injector
• For Auto-Trans 160 HP Calibration Trucks
• 7mm Nozzle, 5 Holes Drilled @ 145°
• Opening Pressure: 260 Bar / 3770 PSI
• 14mm × 1.5mm Inlet Fuel Line Connection
• B-Series Cummins Application
• Sold Individually
• Part Number: 0432133859-IIS

• Fits CPL numbers 1549, 1815, 1959, 1968, 2345, 2349 (6-cylinder 5.9L) and CPL 1838, 2013 (4-cylinder 4BT).
• Return-line washers and the 3920174 1.5mm nozzle washer sold separately.
• Replace the injector dust seal (D3909356) when installing.
