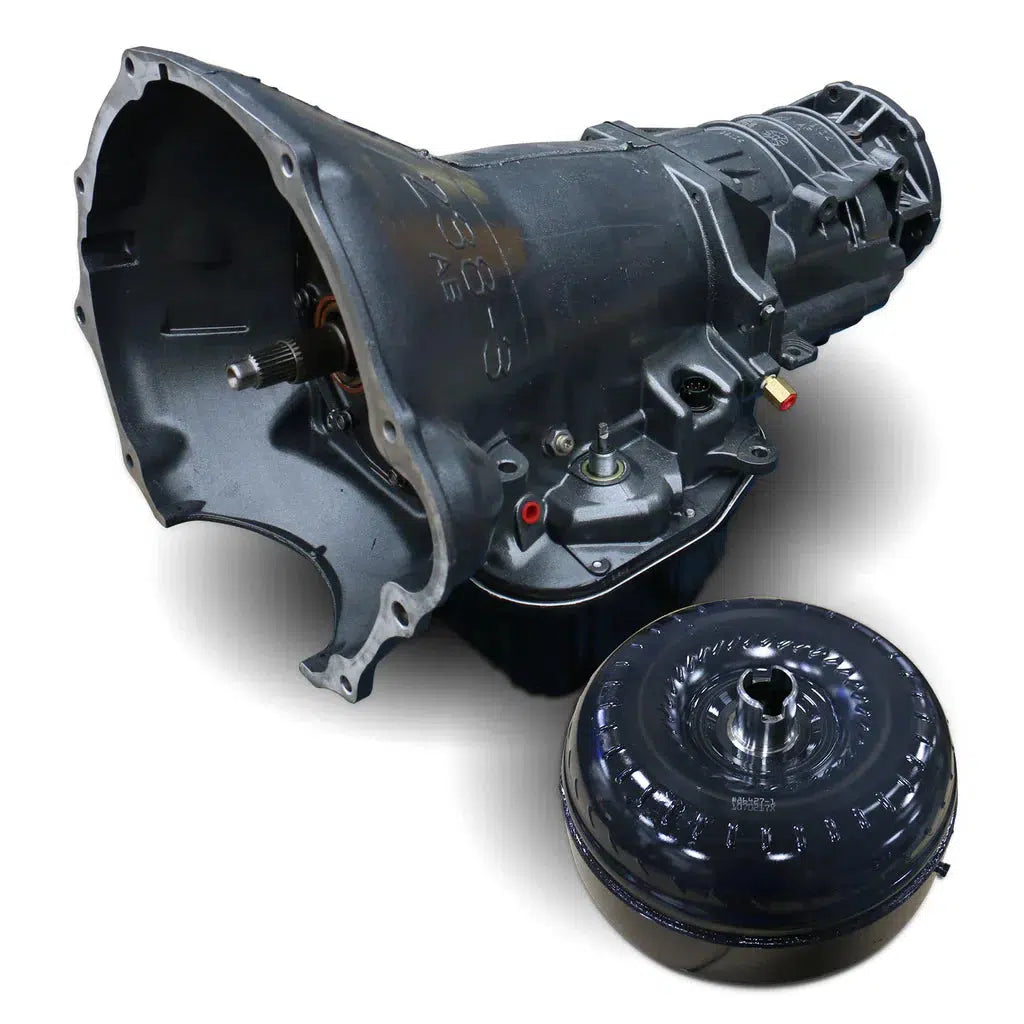

1994-1995 Cummins 47RH Torqumaster Transmission & Converter W/ Billet Input & Auxiliary Filter Package (2WD) (1064152BM)

BD Diesel Part Number: 1064152BM
$9,037.00 CAD

Additional Refundable Core Deposit Required of $3,250.00 CAD.

Purchase to earn 9037 Dirty Dollars Learn More

Description

Fits

 Year Make Model Engine
1994-1995
Dodge Ram
2500/3500 2WD 5.9L Cummins

Dyno tested together for ultimate performance and reliability; Every transmission comes with BD's own HD pan that adds extra fluid capacity. For towing, street, or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands.

Part Number: 1064152BM

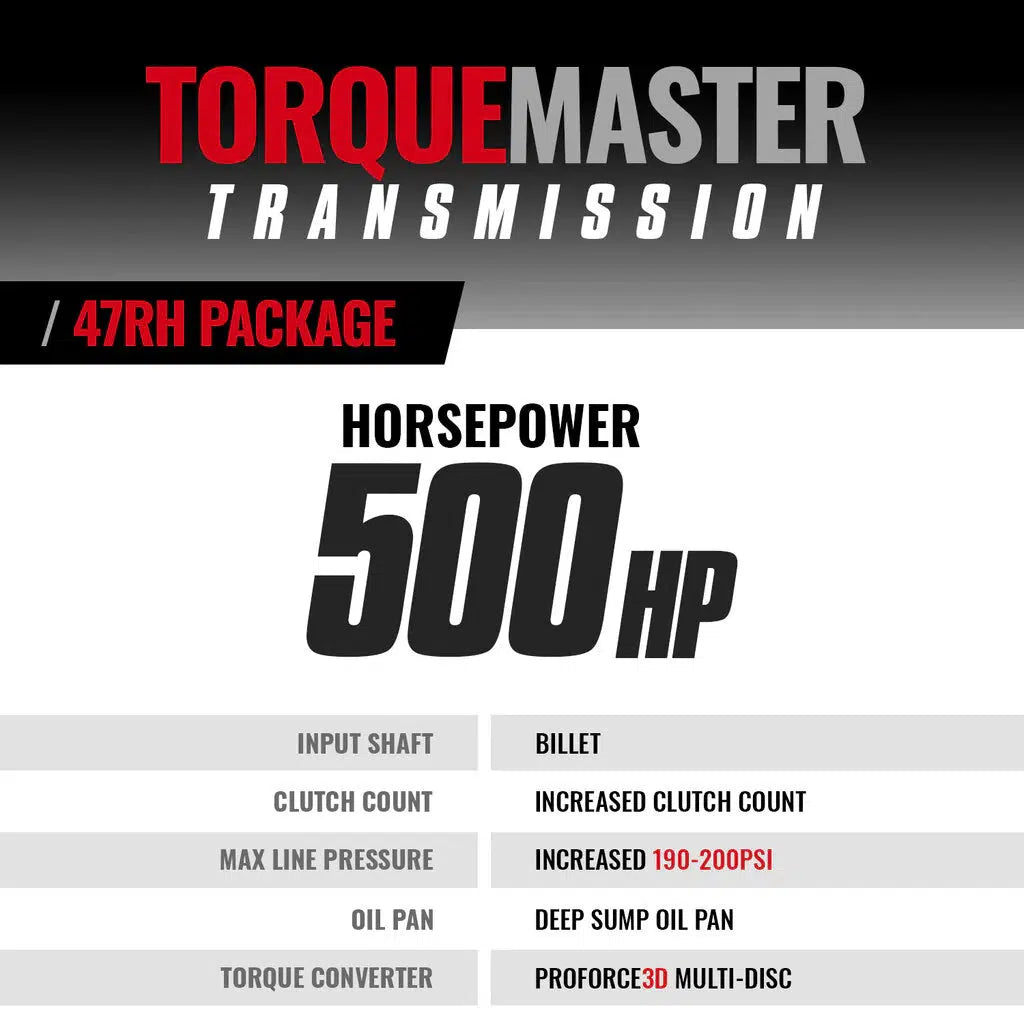

Features

Transmission:

  • Upgraded Valvebody
  • Increased line pressure to 190-200psi
  • Stock thrust bushings replaced with roller Torrington bearings
  • Clutch Count: DIRECT 5
  • Clutch Count: FORWARD 5
  • Clutch Count: OD 6
  • Clutch Count: OD DIRECT 10
  • High temp Raybestos band
  • Billet band strut
  • Billet 300M input shaft
  • BD rigid aluminum heavy duty transmission pan
  • Pan adds 2qt extra oil capacity
  • Pan heat-dissipating fins keep temperature down
  • Magnetic drain plug
  • Increase the durability of your drivetrain
  • BD auxiliary full flow filter kit for extra protection
  • Cooler line case saver in every transmission
  • Every transmission is tested on a dyno

Torque Converter:

    • Triple Disc
    • Enhanced Stall - Street/Towing applications
    • HD springs absorb shock of engagement
    • Stamp forged 1-piece cover
    • Eliminates warpage from clutch heat
    • Taller cover can be rebuilt more often
    • Trapezoid teeth design
    • Engineered tighter tolerances
    • Self-centering trapezoid teeth design increases contact decreases wear and chatter
    • Thrust bearings - not plastic thrust washers
    • Riveted piston ensures alignment & eliminates vibration or embrittlement from welding
    • Cast stator designs maximizes torque
    • New sprag components ensure long term durability
    • Furnaced brazed turbine fins for improved fluid coupling efficiency
    • Reduced overall weight by 12lbs compared to competitors

    Installation

    Warranty

    Parts Only - No Race abuse is covered or Sled Pull use.

    • 36-Months
    • 150,000 Miles
    •  Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.
