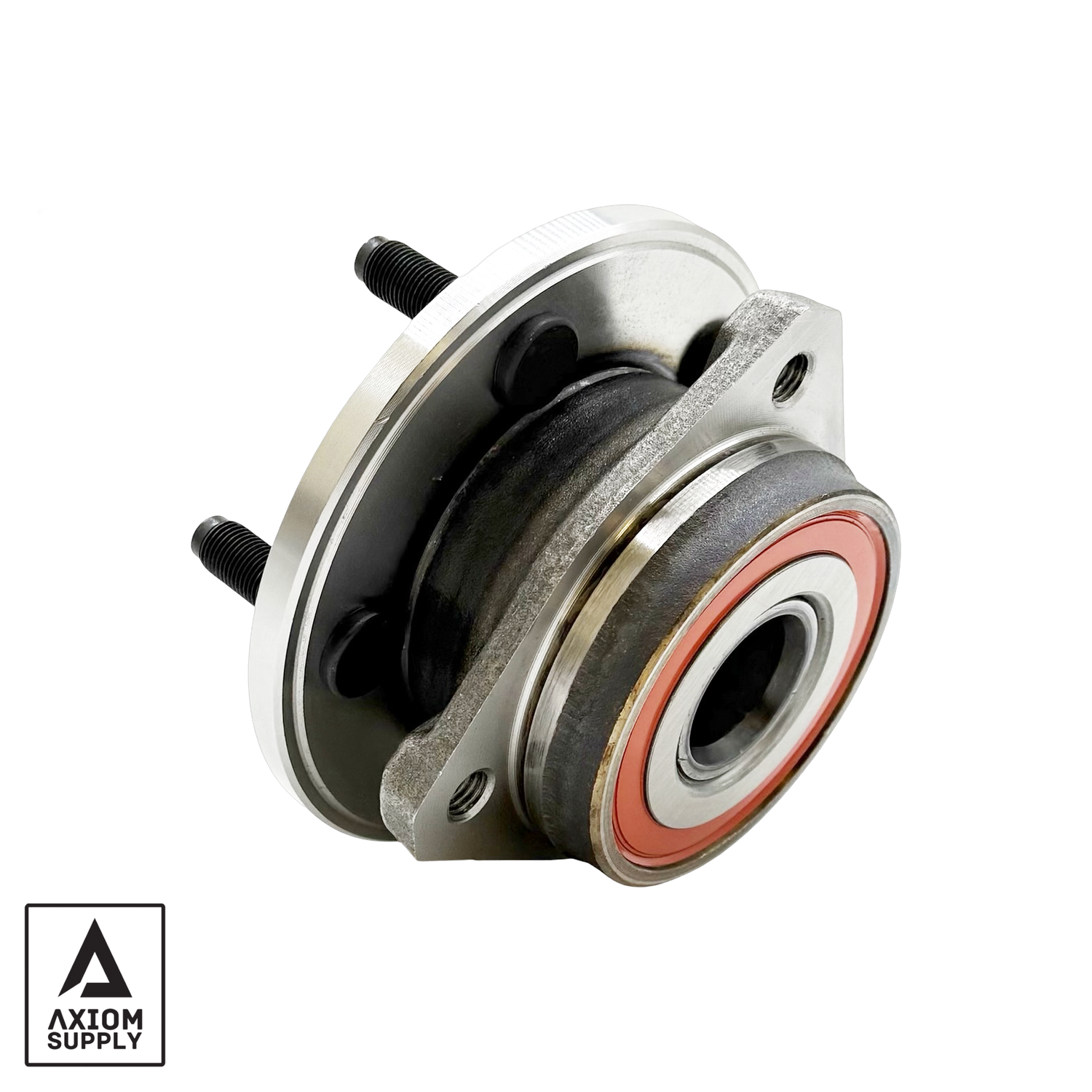

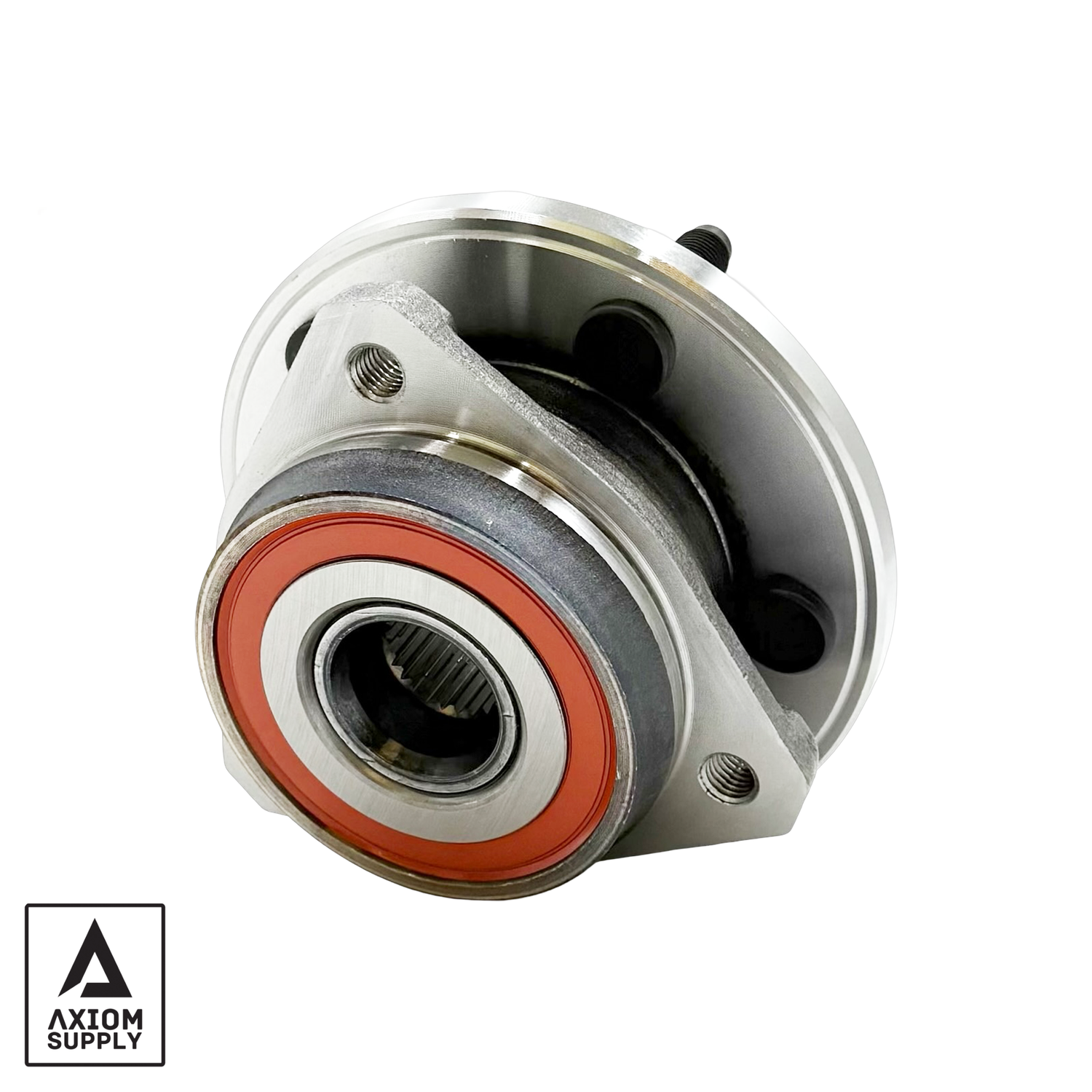

1990-1999 Wrangler YJ/TJ Wheel Bearing Assembly (AX513084)

Front wheel bearing hub assembly covering a wide spread of classic Jeep platforms, from the YJ and early TJ Wranglers to the XJ Cherokee, MJ Comanche, and ZJ Grand Cherokee. The bearing and hub structure is built to reduce hub face deflection under load for tighter steering response and improved braking stability, even with oversized tires or a lifted setup. It installs as a complete bolt-in unit on either the left or right spindle, with a typical install time around 2 hours.

Part Number: AX513084

• Precision tapered roller bearings packed with high performance grease for smooth, maintenance free operation
• Grade 8 cold formed, zinc plated wheel studs for high tensile strength and corrosion protection
• Durable ABS sensor holds accurate signal transmission through heat, mud, and moisture
• 5x4.5" (5x114.3) bolt pattern with 1/2"-20 lug studs
• Fits left or right front position
• Complete bolt-in unit, roughly 2 hour install with no special modifications

• 1 x Wheel Bearing Hub Assembly

• Axle nut torque: 175 lb-ft
• Spindle bolt torque: 75 lb-ft
• Main caliper bolt torque: 75-80 lb-ft
• Lug nut torque: 80-100 lb-ft
