1989-2007 Cummins Deep Transmission Pan A/T (228051020)

Fits

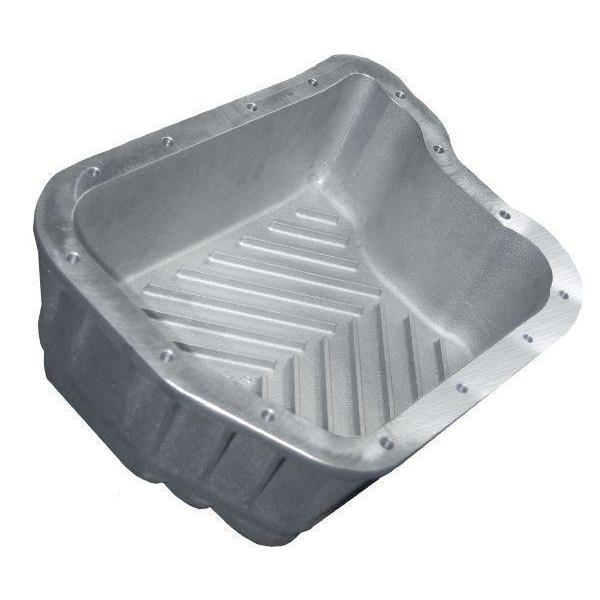

More fluid is always better in an automatic. A larger volume takes longer to heat up, so transmission temperatures stay more stable and the trans lives longer. PPE's Heavy-Duty Deep Transmission Pan adds 4 quarts of capacity and is cast from premium A356.0-T6 heat-treated aluminum alloy for strong, consistent heat dissipation. Tall 3/4 inch external fins pull heat out of the fluid, while 1/2 inch internal baffles improve heat absorption and cut down on fluid sloshing under hard driving.

A 304 stainless steel drain plug with a built-in high-temperature neodymium magnet and Viton O-ring captures ferrous debris before it reaches the transmission internals. The pan works with your OEM filter and includes a filter spacer block sealed with a Viton O-ring, plus 1/8 inch and 1/4 inch NPT ports with pre-installed plugs for adding temperature sensors. A flat composite gasket is included.

Part Number(s):

• Raw Finish (228051000)
• Brushed (228051010)

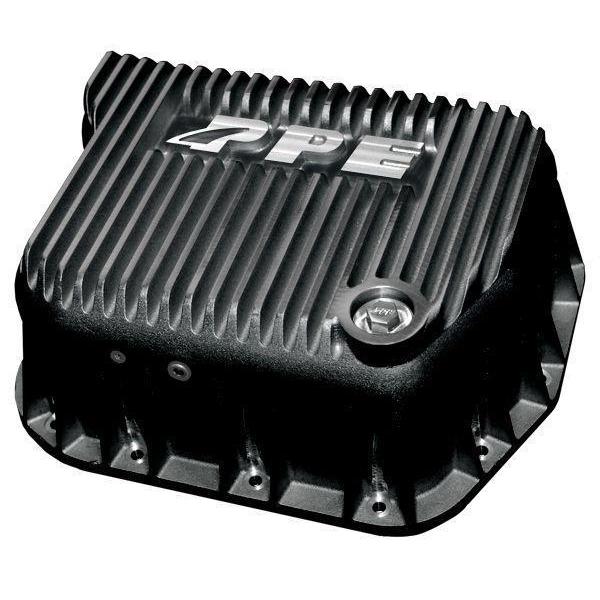

• Black (228051020)

• Heavy-Duty Deep Aluminum Transmission Pan
• Cast from A356.0-T6 heat-treated aluminum alloy
• 4 quarts additional fluid capacity
• Tall 3/4 inch external cooling fins
• 1/2 inch internal baffles for added heat absorption and reduced fluid slosh

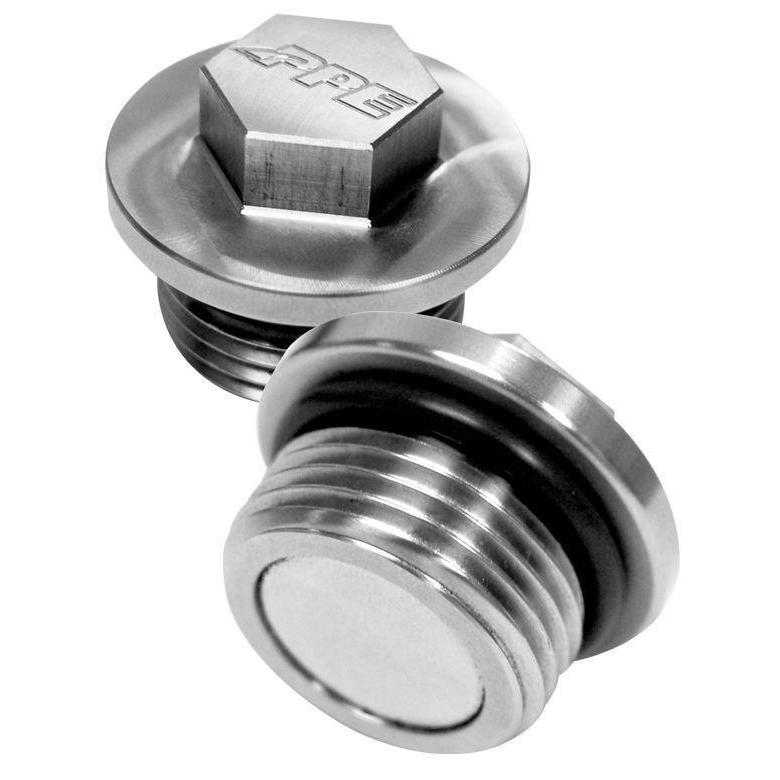

• 304 stainless steel drain plug with high-temperature neodymium magnet and Viton O-ring
• Works with the OEM filter; includes a Viton O-ring sealed filter spacer block
• Flat composite gasket included

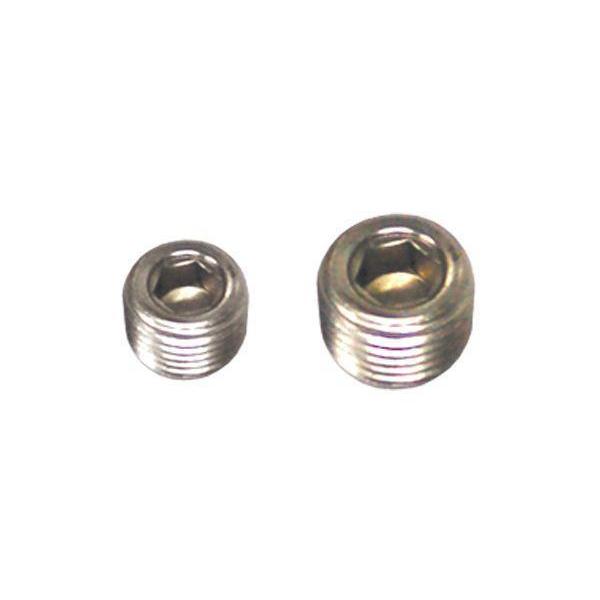

• 1/8 and 1/4 inch NPT temperature access ports with pre-installed plugs

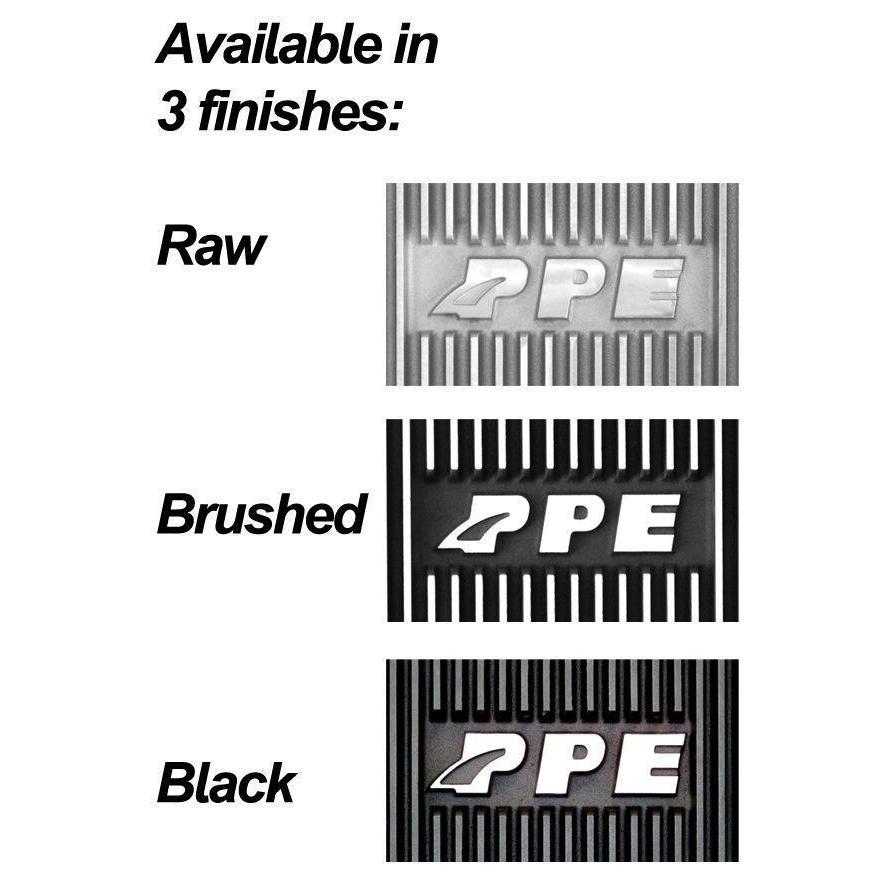

• Raw, brushed, or black powdercoat finishes available
• Lifetime Warranty
• Sold as a kit

Don't see your question? Ask us anything about this product.

• ?

  Will I need to get a filter spacer if I install this?

  Yes!

• ?

  What are the bolt size for this pan

  They are standard UNC thread, approx. 1 length. Allen-head mounting bolts.

• ?

  Does it come with a gasket, and the filter extension block ?

  Yes, this comes with both.
